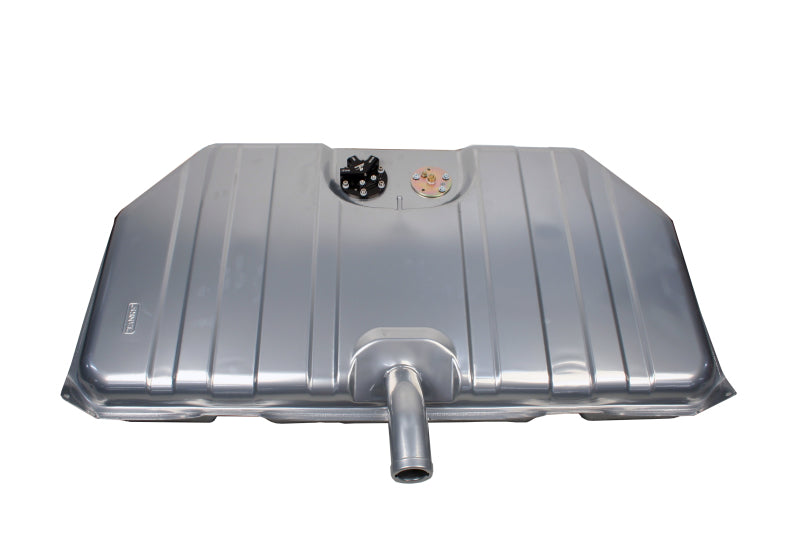

Aeromotive 340 Stealth Fuel Tank for 1969 Camaro Notched Corners - 18346

The Aeromotive 340 Stealth Fuel Tank (18346) is a high-performance fuel system upgrade designed specifically for the 1969 Chevrolet Camaro. This Gen I Stealth tank maintains an OEM-style appearance while integrating a powerful and quiet 340 LPH Stealth in-tank fuel pump capable of supporting both EFI and carbureted engines. The tank features a durable powder-coated silver finish along with a wide internal surge baffle and a large EFI-friendly fuel pump reservoir to ensure consistent fuel delivery during hard acceleration, braking, and cornering. Designed with notched corners and built one inch deeper than the factory tank for increased capacity, it also includes mounting straps for simplified installation. Delivered fully assembled with the pump and 0–90 Ohm sending unit installed, this tank is ready to install for street performance or high-horsepower builds.

Key Features & Specs:

• Gen I Stealth fuel tank for 1969 Chevrolet Camaro
• Notched corner design with OEM-style fitment
• 18-gallon steel fuel tank capacity
• Tank depth increased by 1" over stock
• Durable powder-coated silver exterior finish
• High-flow 340 LPH Stealth in-tank fuel pump
• Compatible with EFI and carbureted engines
• Wide internal surge baffle with large EFI-friendly pump reservoir
• Includes 0–90 Ohm fuel level sending unit
• Billet pump hat with ORB-06 outlet, return, and vent ports
• Fully assembled and ready to install
• Mounting straps included
• Maximum pump pressure: 105 PSI
• Pump design: turbine impeller with brushed motor
• Maximum current draw: 13A @ 40 PSI
• Voltage requirement: 12–16V
• Pulse width modulation compatible
• ORB-06 female outlet and return fittings
• Filler neck attached

Fitment:

1969 Chevrolet Camaro
