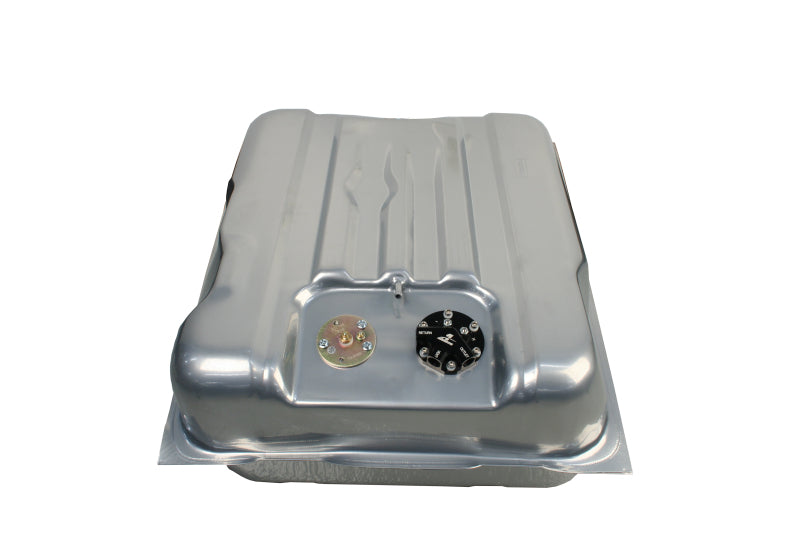

Aeromotive Stealth Fuel Tank for 1970-1974 Plymouth Barracuda - 18343

The Aeromotive 18343 Gen I Stealth Fuel Tank is engineered specifically for 1970-1974 Plymouth Barracuda models, delivering a high-performance fuel delivery solution while maintaining an OEM-style appearance. Designed to support both EFI and carbureted engines, this 19-gallon steel fuel tank features an integrated 340 LPH Stealth in-tank fuel pump capable of supporting demanding performance applications. Its internal wide lateral surge baffle and large EFI-friendly reservoir help prevent fuel starvation under hard acceleration, cornering, or braking. Finished in a durable silver powder-coat for long-lasting corrosion resistance, the tank arrives fully assembled with a billet pump hat featuring ORB-06 outlet, return, and vent ports for reliable plumbing and installation.

Key Features & Specs:

• Integrated Aeromotive 340 LPH Stealth in-tank fuel pump
• Supports EFI and carbureted fuel systems
• 19-gallon capacity with OEM-style appearance
• Durable powder-coated silver steel construction
• Internal surge baffle with large EFI reservoir
• Billet hat with ORB-06 outlet, return, and vent ports
• 73–10 Ohm fuel level sending unit included
• Turbine impeller pump design for high flow and quiet operation
• Maximum flow rating: 340 LPH
• Maximum pressure: 105 PSI
• Voltage range: 12–16V
• Maximum current draw: 13A @ 40 PSI
• Pulse width modulation compatible
• Brushed motor style with threaded stud terminals
• Fully assembled and ready to install

Fitment:

1970-1974 Plymouth Barracuda
