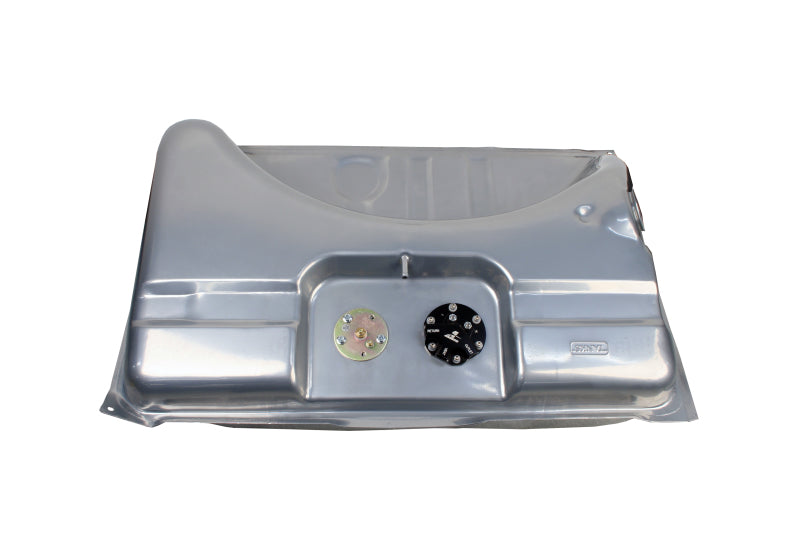

Aeromotive 340 Stealth Fuel Tank for 1970-1976 Dart & Duster - 18344

The Aeromotive 340 Stealth Fuel Tank (18344) is a complete high-performance fuel system upgrade designed for 1970–1976 Dodge Dart and Plymouth Duster models. This Gen I Stealth tank maintains an OEM-style appearance with a durable powder-coated silver finish while integrating a high-flow and quiet 340 LPH Stealth in-tank fuel pump capable of supporting both EFI and carbureted engines. Inside the tank, a wide internal surge baffle and a large EFI-friendly fuel pump reservoir help maintain consistent fuel delivery during acceleration, braking, and cornering. Delivered fully assembled with the pump and a 73–10 Ohm fuel level sending unit installed, the tank is ready for installation and ideal for street performance and high-horsepower builds.

Key Features & Specs:

• Gen I Stealth fuel tank for 1970–1976 Dodge Dart and Plymouth Duster
• OEM-style appearance with durable powder-coated silver finish
• 16-gallon steel fuel tank capacity
• High-flow 340 LPH Stealth in-tank fuel pump
• Compatible with EFI and carbureted engines
• Wide internal surge baffle with large EFI-friendly pump reservoir
• Includes 73–10 Ohm fuel level sending unit
• Billet pump hat with ORB-06 outlet, return, and vent ports
• Fully assembled and ready to install
• Maximum pump pressure: 105 PSI
• Pump design: turbine impeller with brushed motor
• Maximum current draw: 13A @ 40 PSI
• Voltage requirement: 12–16V
• Pulse width modulation compatible
• ORB-06 female outlet and return fittings
• Filler neck attached

Fitment:

1970-1976 Dodge Dart
1970-1976 Plymouth Duster
