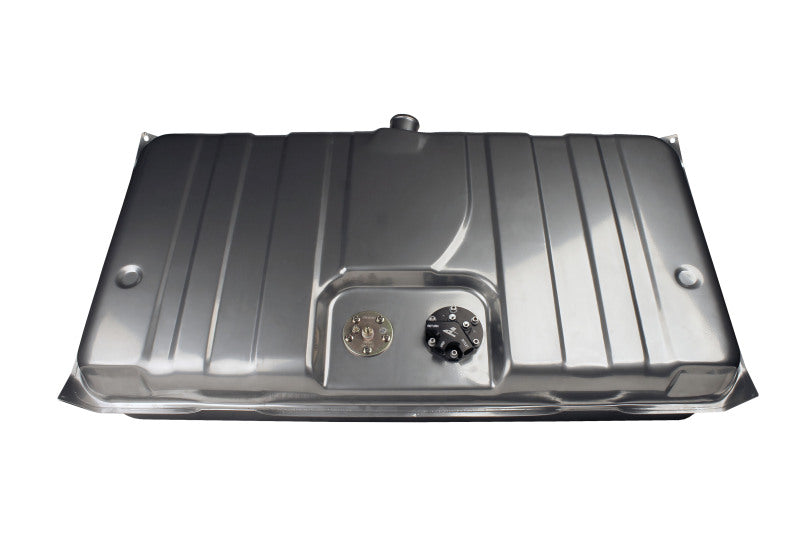

Aeromotive Stealth Fuel Tank for 1970 Chevrolet Nova - 18333

The Aeromotive 18333 Gen I Stealth Fuel Tank is engineered specifically for the 1970 Chevrolet Nova, delivering modern fuel system performance while maintaining a clean OEM-style appearance. Designed to support both EFI and carbureted engines, this 20-gallon steel fuel tank features an integrated 340 LPH Stealth in-tank fuel pump capable of supporting demanding street and performance builds. The tank is built 1 inch deeper than the OEM design to increase fuel capacity while still fitting properly in the factory location. A wide internal surge baffle and large EFI-friendly fuel pump reservoir help prevent fuel starvation during hard acceleration, braking, and cornering. Finished in a durable silver powder-coated exterior for corrosion resistance, the tank includes a billet pump hat with ORB-06 outlet, return, and vent ports and comes fully assembled with a 0–90 Ohm fuel level sending unit for straightforward installation.

Key Features & Specs:

• Integrated Aeromotive 340 LPH Stealth in-tank fuel pump
• Designed for EFI and carbureted fuel systems
• 20-gallon capacity with tank depth 1 inch greater than OEM
• Durable powder-coated silver steel construction
• Wide internal surge baffle for improved fuel control
• Large EFI-friendly internal fuel pump reservoir
• Billet hat with ORB-06 outlet, return, and vent ports
• 0–90 Ohm fuel level sending unit included
• Turbine impeller pump design for high flow and quiet operation
• Maximum flow rating: 340 LPH
• Maximum pressure: 105 PSI
• Voltage range: 12–16V
• Maximum current draw: 13A @ 40 PSI
• Pulse width modulation compatible
• Brushed motor style with threaded stud terminals
• Filler neck length: 12.3 inches
• Fully assembled and ready to install

Fitment:

1970 Chevrolet Nova
