Aeromotive Stealth Fuel Tank for 1974-1977 Camaro, 1974-1978 Firebird - 18335

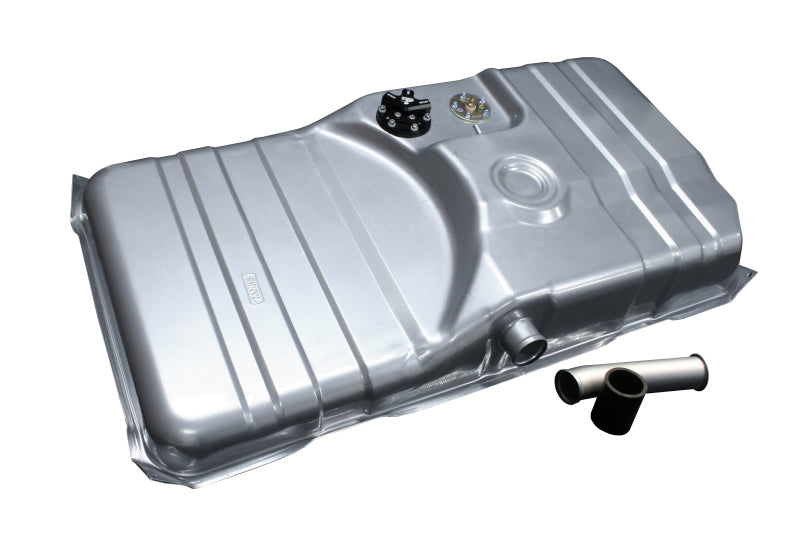

The Aeromotive 18335 Gen I Stealth Fuel Tank is designed for 1974-1977 Chevrolet Camaro and 1974-1978 Pontiac Firebird models, delivering modern fuel system performance while maintaining an OEM-style appearance. Engineered for both EFI and carbureted engines, this 21-gallon steel fuel tank includes an integrated high-flow 340 LPH Stealth in-tank fuel pump capable of supporting high-performance street and track builds. A wide internal surge baffle and large EFI-friendly fuel pump reservoir help maintain consistent fuel delivery during acceleration, braking, and cornering. The tank features a durable silver powder-coated exterior for corrosion resistance and long-term durability. It also includes a billet pump hat with ORB-06 outlet, return, and vent ports and comes fully assembled with a 0-90 Ohm fuel level sending unit for straightforward installation.

Key Features & Specs:

• Integrated Aeromotive 340 LPH Stealth in-tank fuel pump
• Designed for EFI and carbureted fuel systems
• 21-gallon capacity with OEM-style appearance
• Durable powder-coated silver steel construction
• Wide internal surge baffle for improved fuel control
• Large EFI-friendly internal fuel pump reservoir
• Billet hat with ORB-06 outlet, return, and vent ports
• 0–90 Ohm fuel level sending unit included
• Turbine impeller pump design for high flow and quiet operation
• Maximum flow rating: 340 LPH
• Maximum pressure: 105 PSI
• Voltage range: 12–16V
• Maximum current draw: 13A @ 40 PSI
• Pulse width modulation compatible
• Brushed motor style with threaded stud terminals
• Fully assembled and ready to install

Fitment:

1974-1977 Chevrolet Camaro
1974-1978 Pontiac Firebird
