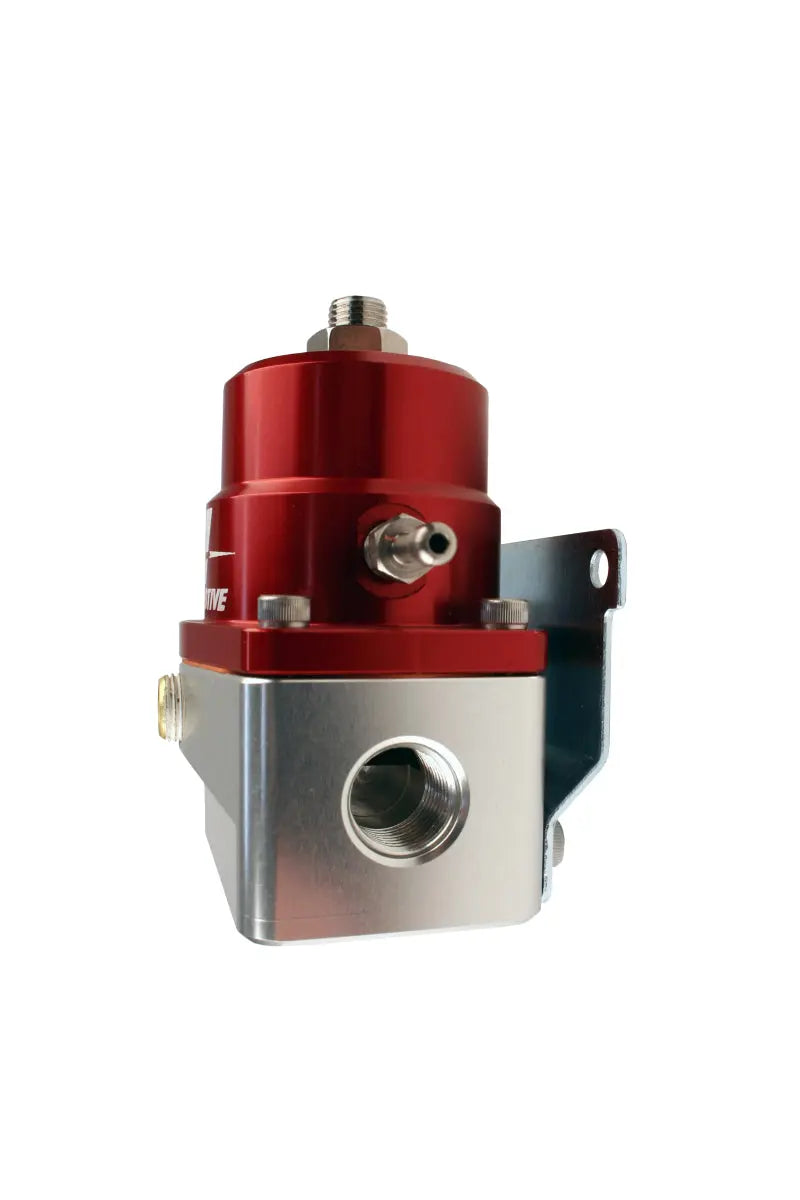

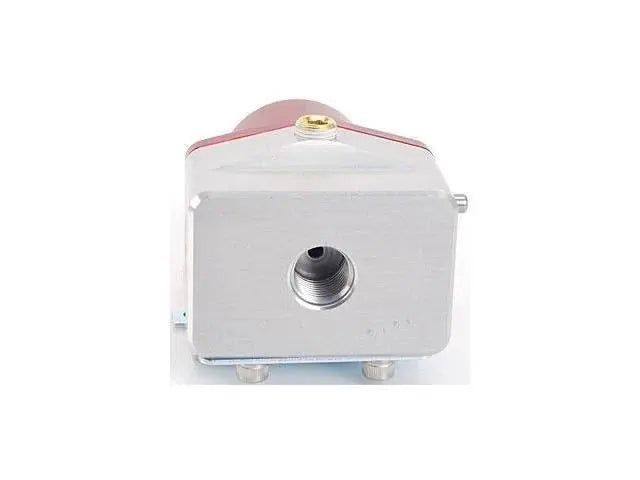

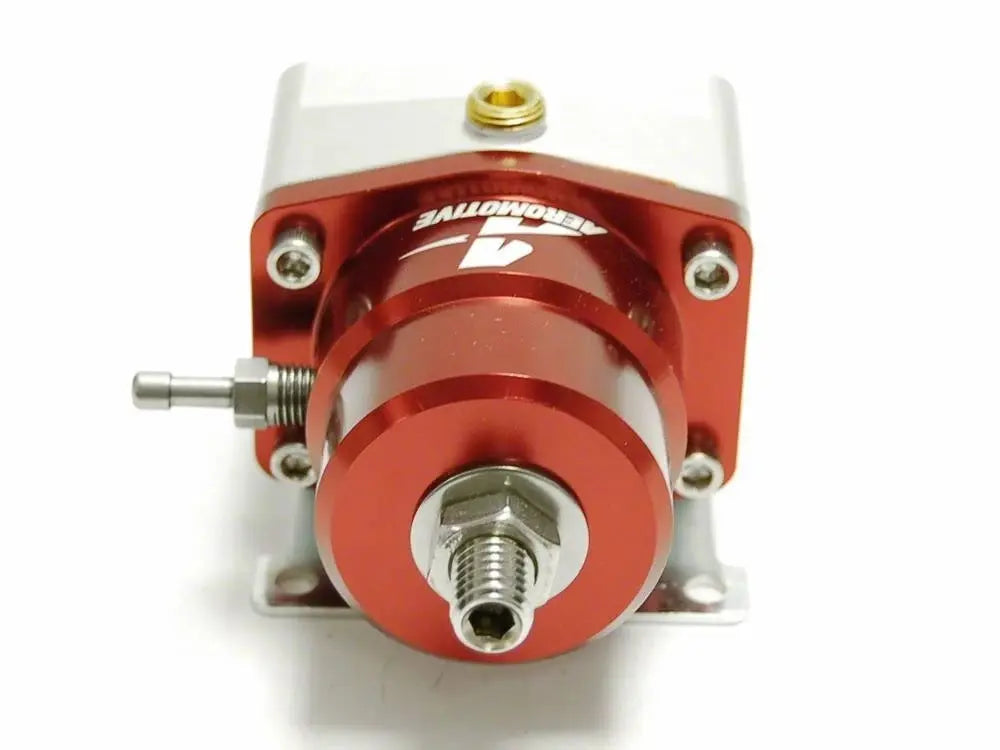

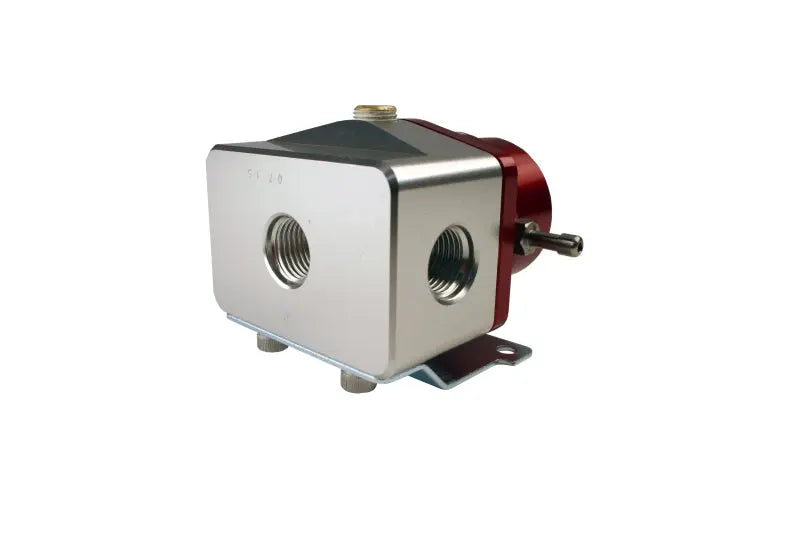

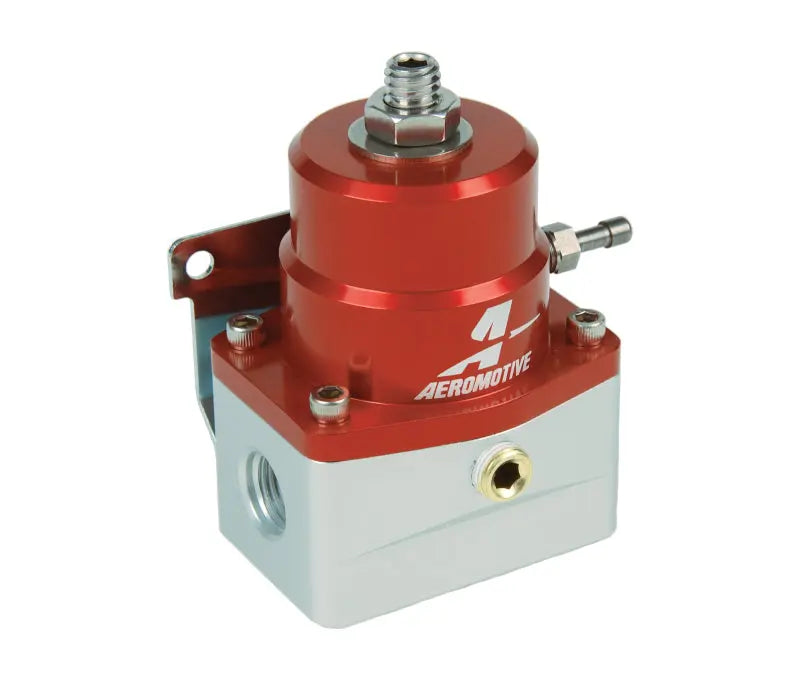

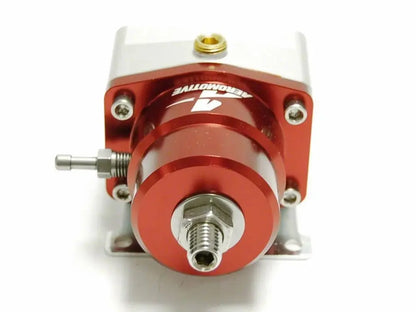

Aeromotive A1000-6 EFI Fuel Pressure Regulator ORB-06 - 13109

The Aeromotive 13109 A1000-6 EFI Bypass Fuel Pressure Regulator is engineered to deliver precise fuel pressure control for high-performance EFI fuel systems. Designed for use with Aeromotive A1000 fuel pumps and similar high-flow systems, this regulator features adjustable base pressure from 40 to 75 PSI and increases fuel pressure at a 1:1 ratio with manifold boost. The regulator includes dual ORB-06 inlet ports and a single ORB-06 return port, providing flexible plumbing options for EFI fuel systems. Compatible with gasoline and alcohol-based fuels, the regulator is built to maintain stable fuel pressure under demanding performance conditions. A 1/8-inch NPT gauge port allows easy fuel pressure monitoring, while the included mounting bracket simplifies installation.

Key Features & Specs:

• Aeromotive A1000-6 EFI bypass fuel pressure regulator
• Adjustable base pressure range: 40–75 PSI
• Fuel pressure rises at a 1:1 ratio with boost
• Compatible with gasoline and alcohol fuels
• (2) ORB-06 inlet ports
• (1) ORB-06 return port
• 1/8-inch NPT gauge port for fuel pressure monitoring
• Designed for high-performance EFI fuel systems
• Mounting bracket included
• Red and silver performance finish

Fitment:

Universal
