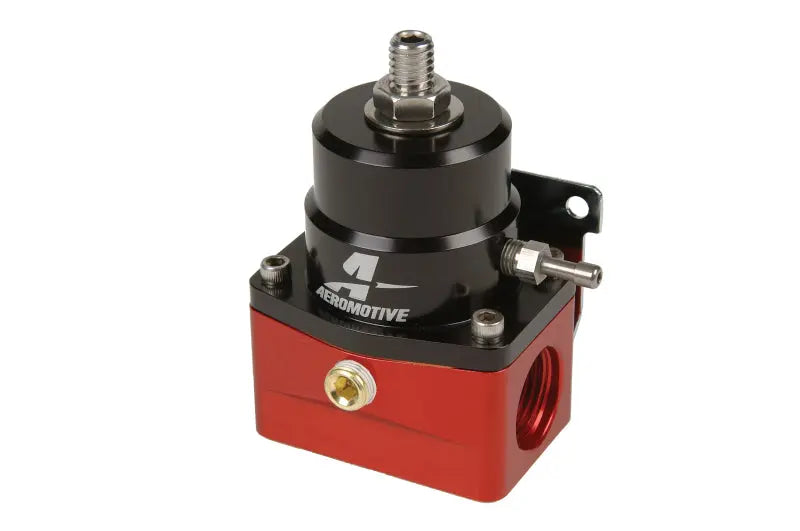

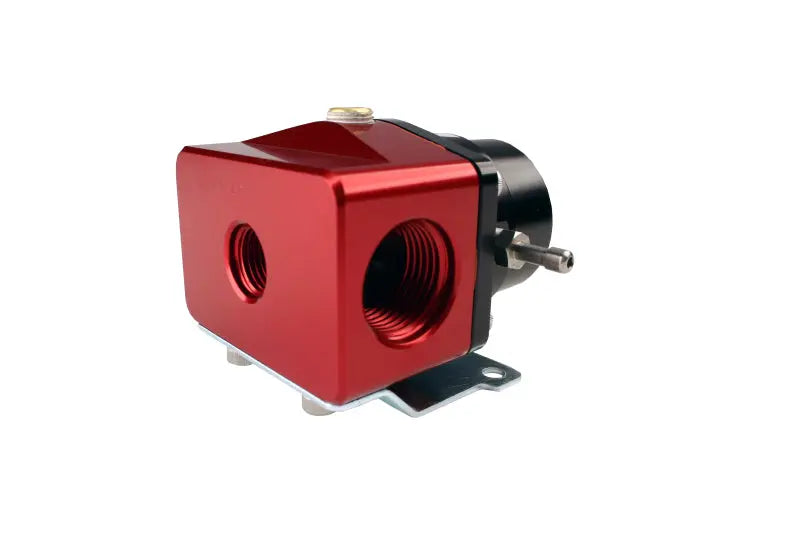

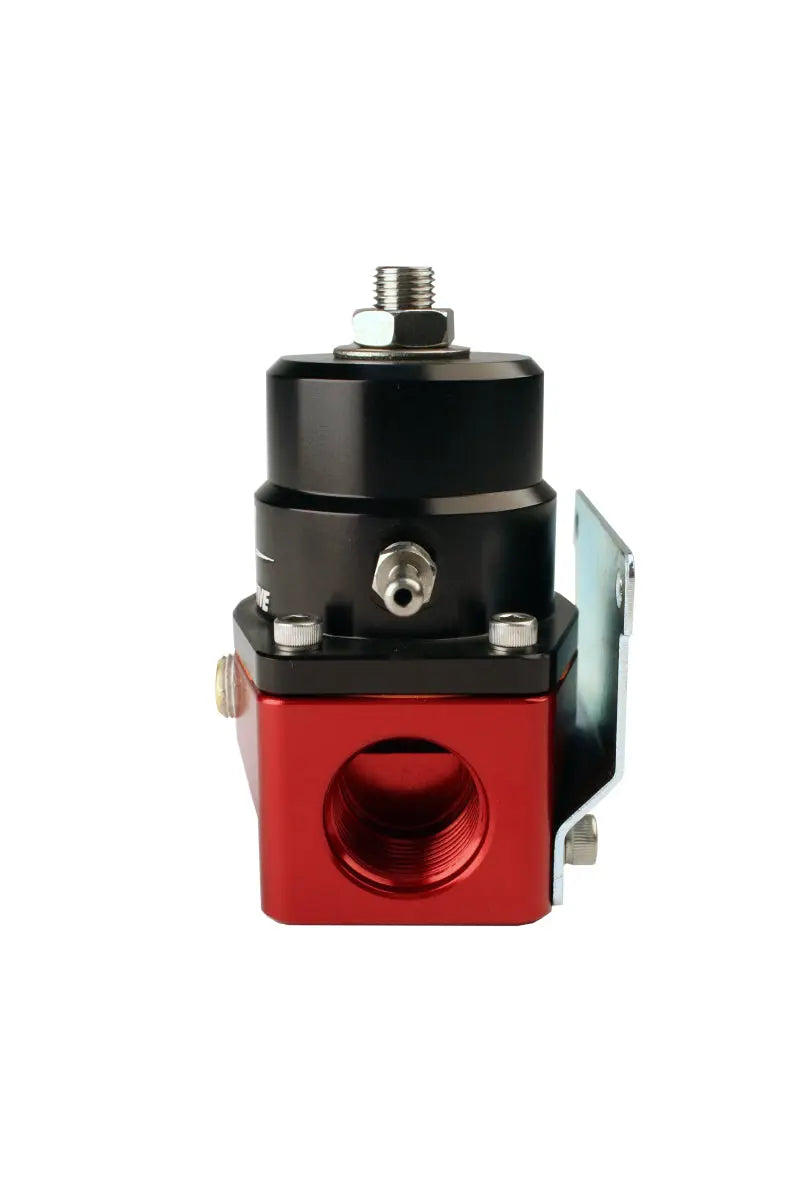

Aeromotive A1000 EFI Fuel Pressure Regulator ORB-10 - 13101

The Aeromotive 13101 A1000 EFI Bypass Fuel Pressure Regulator is designed to deliver precise fuel pressure control for high-performance EFI fuel systems. Engineered for use with Aeromotive A1000 fuel pumps and similar high-flow systems, this regulator features adjustable base pressure from 40 to 75 PSI and increases fuel pressure at a 1:1 ratio with manifold boost for reliable performance under load. The regulator includes dual ORB-10 inlet ports and an ORB-06 return port, providing flexible plumbing options for high-performance fuel systems. Compatible with gasoline, ethanol, alcohol, and diesel fuels, the A1000 regulator is built for durability and consistent fuel pressure regulation. A 1/8-inch NPT gauge port allows easy monitoring of fuel pressure, and a mounting bracket is included for convenient installation.

Key Features & Specs:

• Aeromotive A1000 EFI bypass fuel pressure regulator
• Adjustable base pressure range: 40–75 PSI
• Fuel pressure rises at a 1:1 ratio with boost
• Compatible with gasoline, ethanol, alcohol, and diesel fuels
• (2) ORB-10 inlet ports for high-flow fuel supply
• (1) ORB-06 return port
• 1/8-inch NPT gauge port for fuel pressure monitoring
• Designed for high-performance EFI fuel systems
• Mounting bracket included
• Black and red performance finish

Fitment:

Universal
