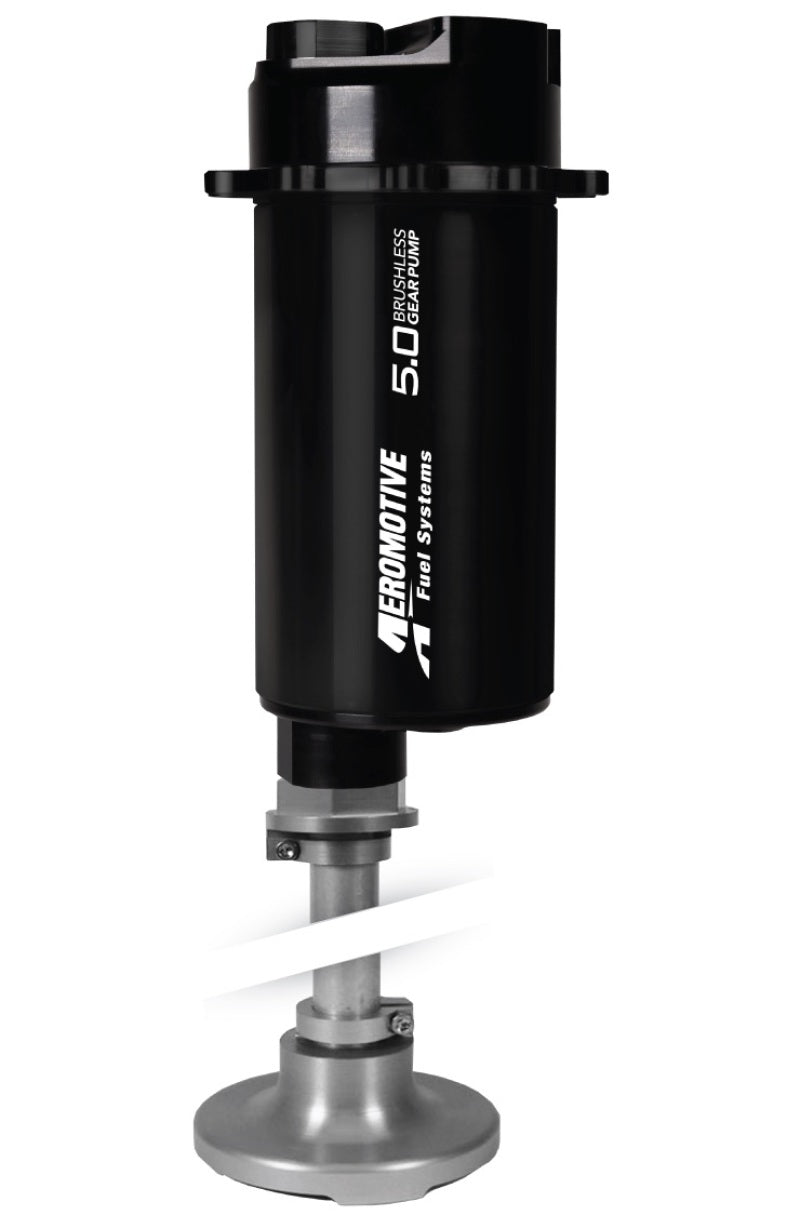

Aeromotive 5.0 GPM Brushless Spur Gear In-Tank Fuel Pump Universal - 18375

The Aeromotive 5.0 GPM Brushless Spur Gear In-Tank Fuel Pump (18375) is a high-performance universal fuel pump designed for demanding EFI and carbureted fuel systems. Featuring a powerful brushless motor and an integral spur-gear pumping mechanism, this pump delivers exceptional fuel flow while maintaining reduced current draw at higher EFI pressures. The adjustable in-tank configuration fits fuel tank depths from 9.4 to 17.4 inches, making it suitable for a wide range of custom fuel system installations. Built for durability and efficiency, the brushless design extends service life when operating with methanol or ethanol fuels. An external brushless controller ensures cleaner installation, cooler fuel temperatures, and improved reliability for high-performance racing and street applications.

Key Features & Specs:

• Universal brushless spur gear in-tank fuel pump
• 5.0 GPM high-flow fuel delivery
• Adjustable installation height: 9.4" – 17.4" tank depth
• New integral spur-gear pumping mechanism
• 90 PSI continuous operating pressure
• Up to 150 PSI peak pressure (base plus boost)
• EFI rated flow: 1,700 lbs/hr @ 40 PSI, 13.5V
• Carb rated flow: 1,850 lbs/hr @ 9 PSI, 13.5V
• Reduced current draw at higher EFI pressures
• Extended service life when running methanol and ethanol fuels
• External brushless controller for cooler fuel and improved reliability
• ORB-10 outlet port
• Requires 12–16 VDC power supply
• 16V charging systems require voltage regulator or step-down converter
• Not compatible with pulse-modulated systems or fuel pump speed controllers

Fitment:

Universal Application
