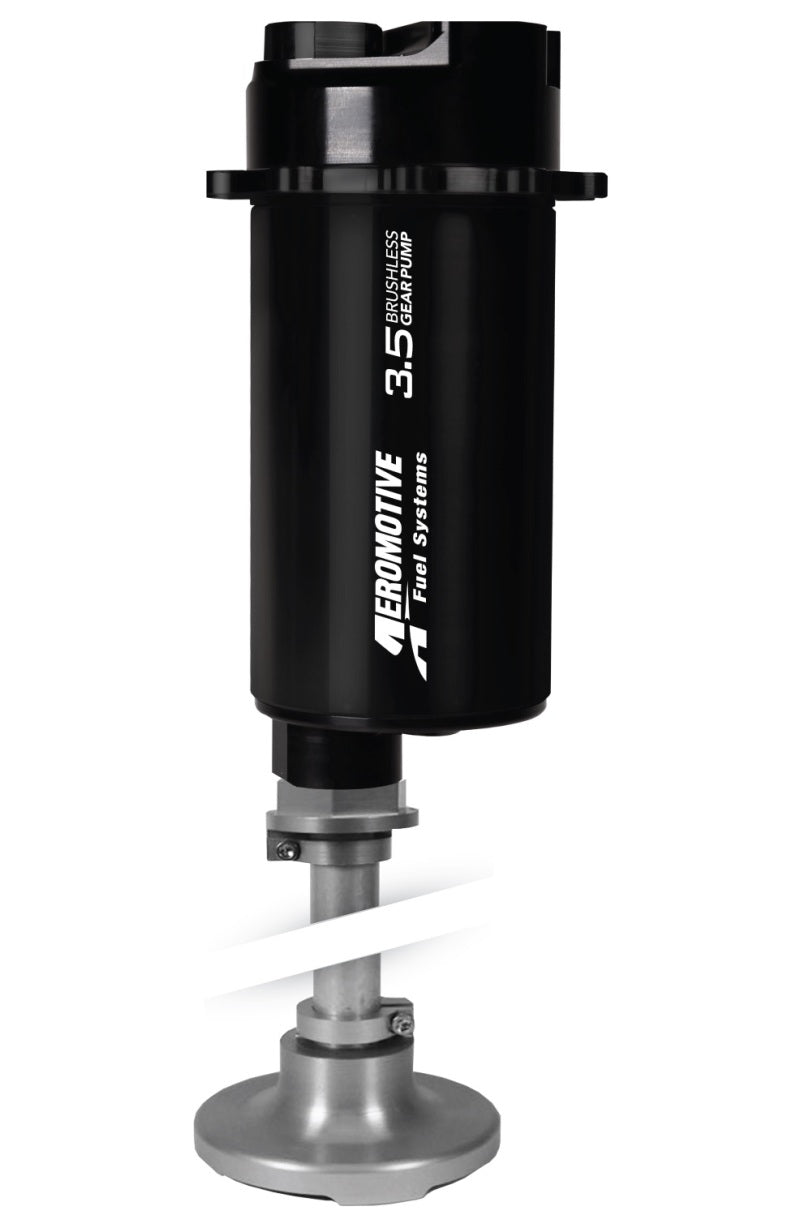

Aeromotive Brushless Spur Gear 3.5 In-Tank Fuel Pump Universal - 18394

The Aeromotive Brushless Spur Gear 3.5 In-Tank Fuel Pump (18394) is a high-performance universal fuel pump designed for demanding EFI and carbureted applications. Featuring true variable speed operation and a new integral spur-gear pumping mechanism, this brushless pump delivers exceptional fuel flow with reduced current draw at higher pressures. The adjustable in-tank design fits fuel tank depths from 9.4 to 17.4 inches and includes an external brushless controller for clean installation, improved reliability, and cooler fuel operation. Capable of supporting extreme fuel delivery demands, the system provides up to 90 PSI continuous operating pressure and 150 PSI peak pressure for boosted applications while offering extended service life when running methanol or ethanol fuels.

Key Features & Specs:

• Universal in-tank brushless fuel pump system
• True variable speed operation with external controller
• New integral spur-gear pumping mechanism
• Adjustable installation height: 9.4" – 17.4" tank depth
• Straight outlet configuration
• Lighter than traditional Pro-Series pumps
• Reduced current draw at higher EFI pressures
• Extended service life with methanol and ethanol fuels
• 90 PSI continuous operating pressure
• Up to 150 PSI peak pressure (base plus boost)
• ORB-10 outlet port
• EFI rated flow: 1,250 lbs/hr @ 40 PSI, 13.5V
• Carb rated flow: 1,350 lbs/hr @ 9 PSI, 13.5V
• Requires 12–16 VDC power supply
• Not compatible with pulse-modulated systems or pump speed controllers
• 16V charging systems require a voltage regulator or step-down to 12V range

Fitment:

Universal Application
