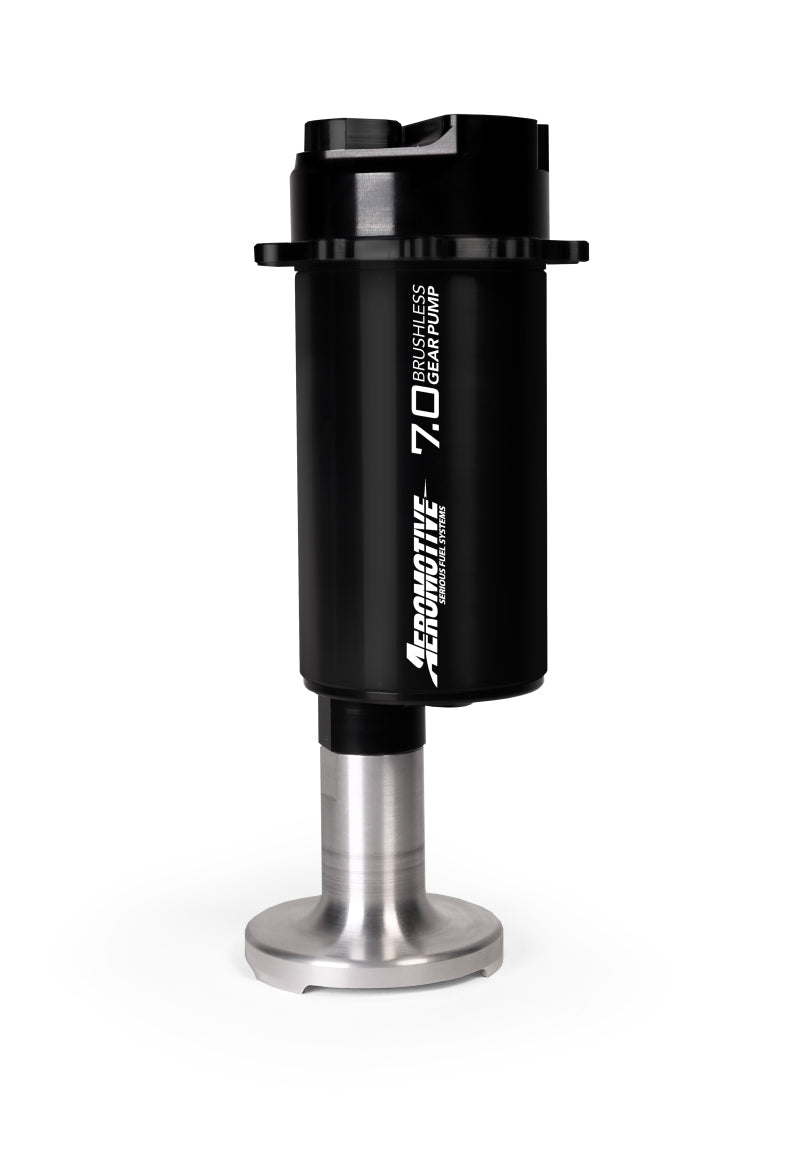

Aeromotive Brushless Spur Gear 7.0 In-Tank Fuel Pump Universal - 18384

The Aeromotive Brushless Spur Gear 7.0 In-Tank Fuel Pump (18384) is a high-performance universal fuel pump engineered for extreme EFI and racing fuel system applications. Featuring a powerful 7.0 GPM brushless spur-gear pumping mechanism, this pump delivers exceptional fuel flow while maintaining reduced current draw at higher EFI pressures. The adjustable in-tank design fits fuel tank depths from 10 to 18 inches, allowing flexible installation for custom fuel systems. Built for durability and efficiency, the brushless motor extends service life when running methanol or ethanol fuels and operates lighter than traditional external mount pumps. An integrated external brushless controller provides true variable speed operation for cleaner installation, cooler fuel temperatures, and enhanced system reliability.

Key Features & Specs:

• Universal brushless Spur Gear 7.0 in-tank fuel pump
• True variable speed pump operation
• 7.0 GPM high-flow fuel delivery
• Adjustable installation height: 10" – 18" tank depth
• New integral spur-gear pumping mechanism
• 60 PSI continuous operating pressure
• Up to 100 PSI peak pressure (base plus boost)
• E85 compatible (reduce maximum FWHP by approximately 30%)
• Reduced current draw at higher EFI pressures
• Extended service life with methanol and ethanol fuels
• Lighter than traditional external mount pumps
• External brushless controller for cleaner installation and cooler fuel
• ORB-12 inlet port and ORB-10 outlet port
• Requires 12–16 VDC power supply
• 16V charging systems require voltage regulator or step-down converter
• Not compatible with pulse-modulated systems or fuel pump speed controllers

Fitment:

Universal Application
