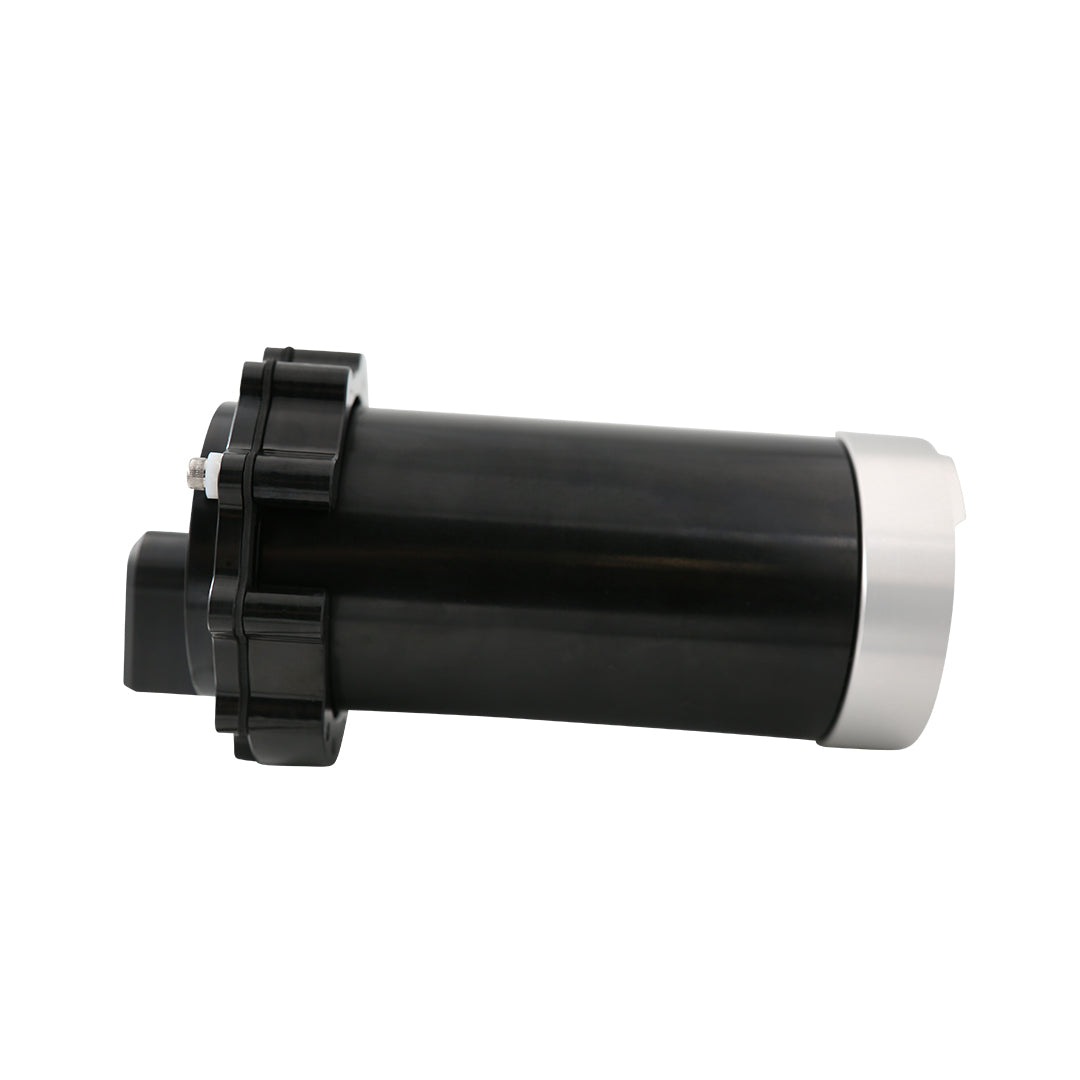

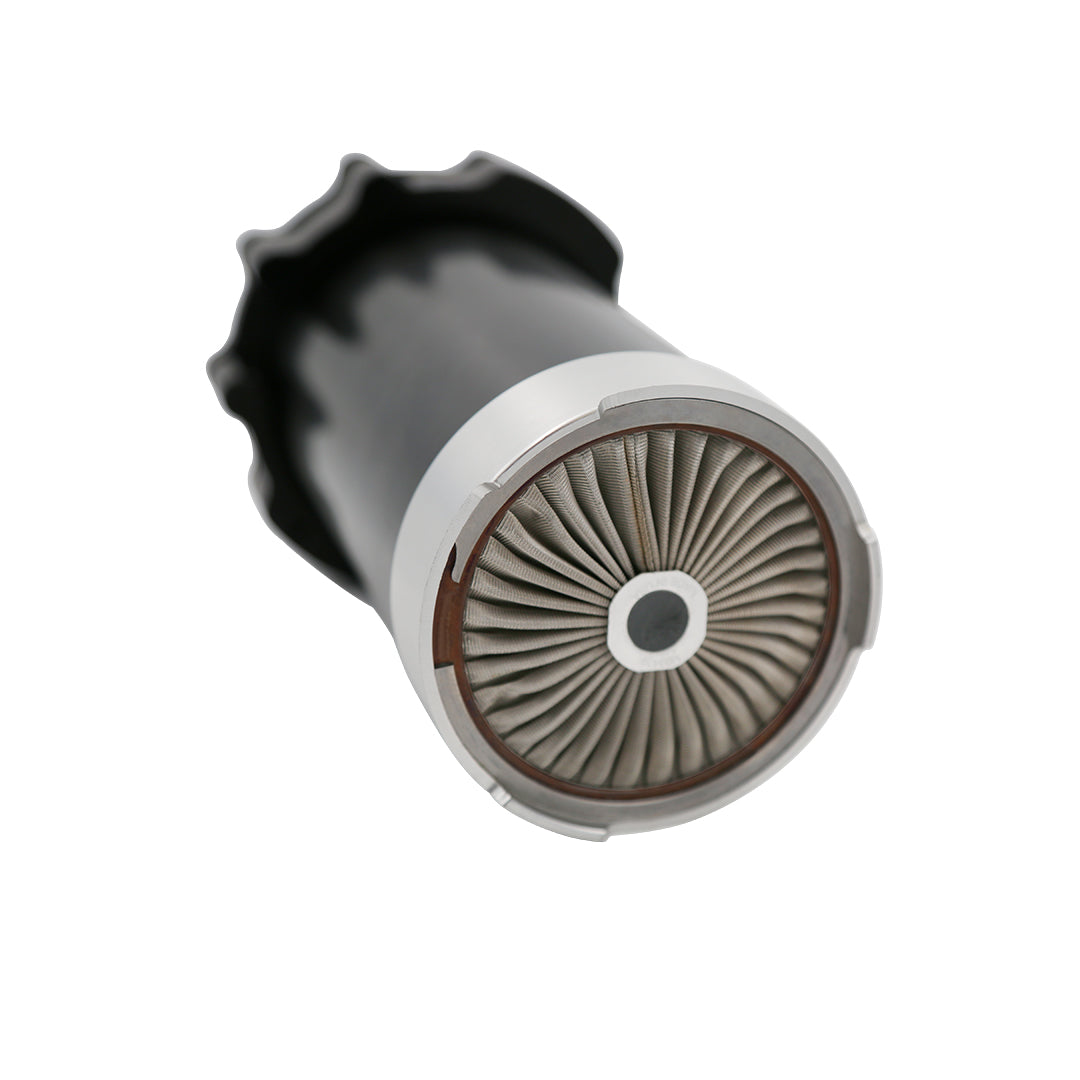

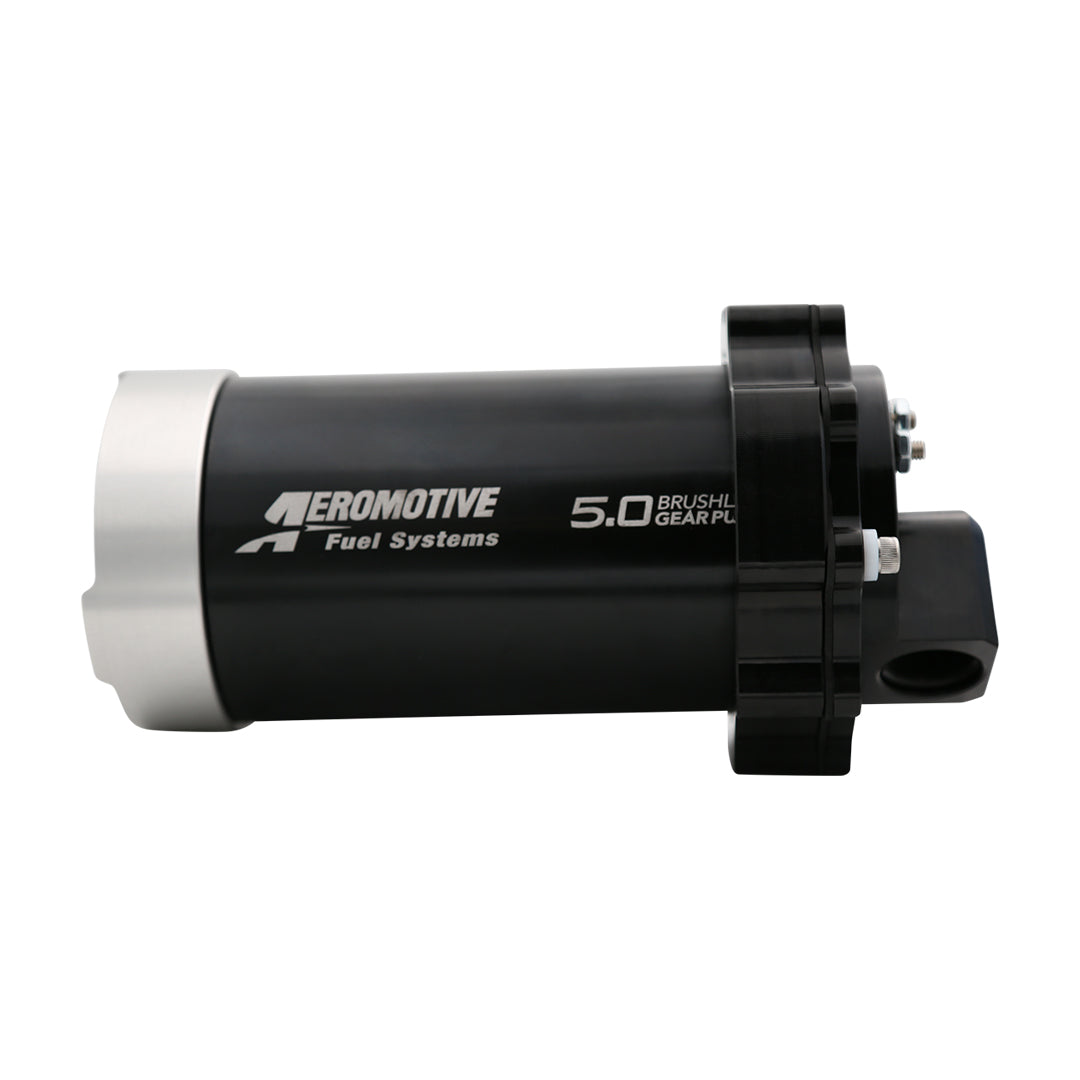

Aeromotive Brushless Spur Gear In-Tank (90 Degree) Fuel Pump w/TVS Controller - 5gpm 19003

Shallow 90-Deg Outlet In-Tank TVS Brushless Pumps

Shortened body for tight spaces in custom builds – we’ve got you covered!

Outlet sits 1-5/8″ above mounting surface for tight space restrictions

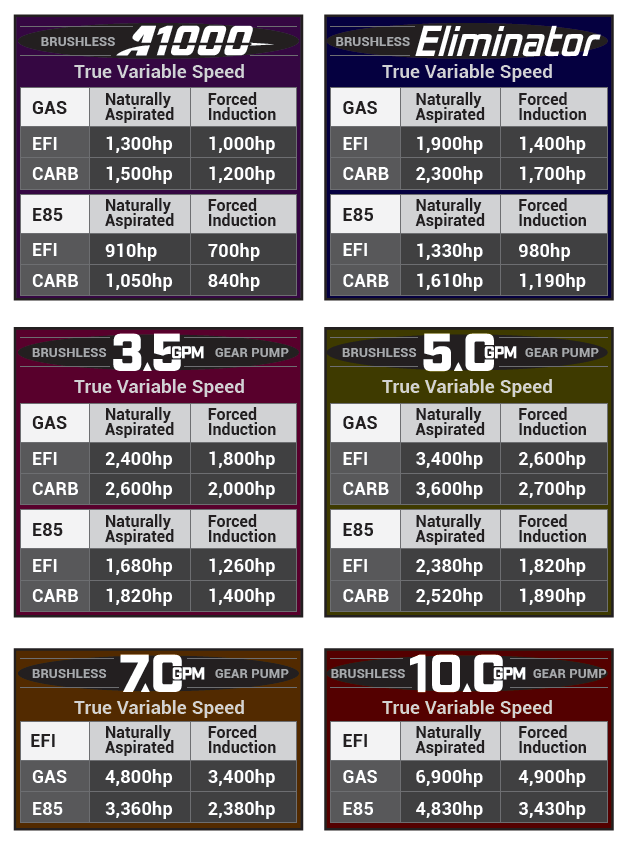

6.7″ Tank Depth for A1000, Eliminator, 3.5, and 5.0GPM

7.2″ Tank Depth for 7.0, 10.0GPM

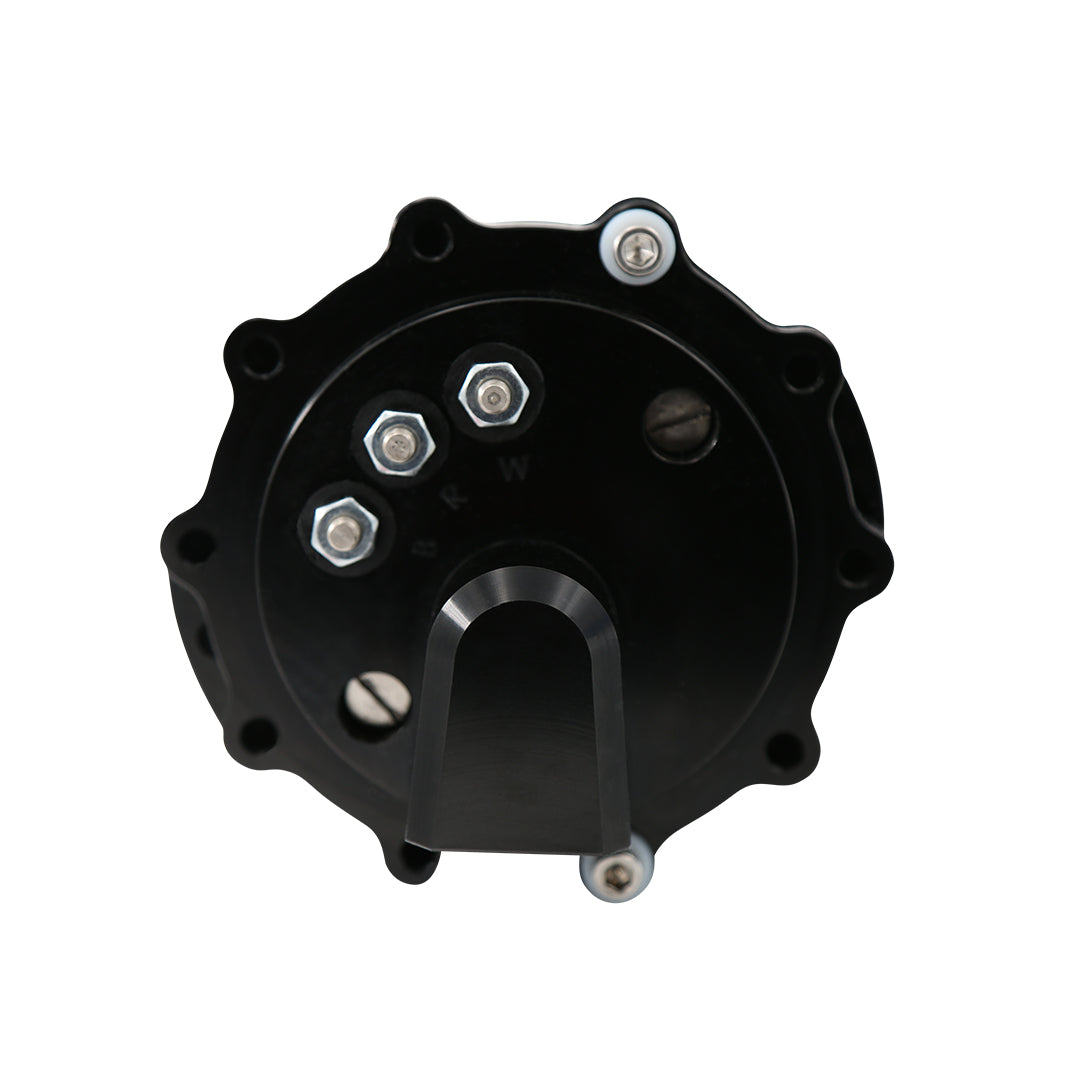

• 90-Degree ORB-10 outlet port for tight spaces and reducing fitting needs
• Lighter than the traditional Pro-Series pump
• Reduced current draw at higher, EFI pressures
• Extended service life in methanol and ethanol
• Integral spur-gear pumping mechanism
• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost

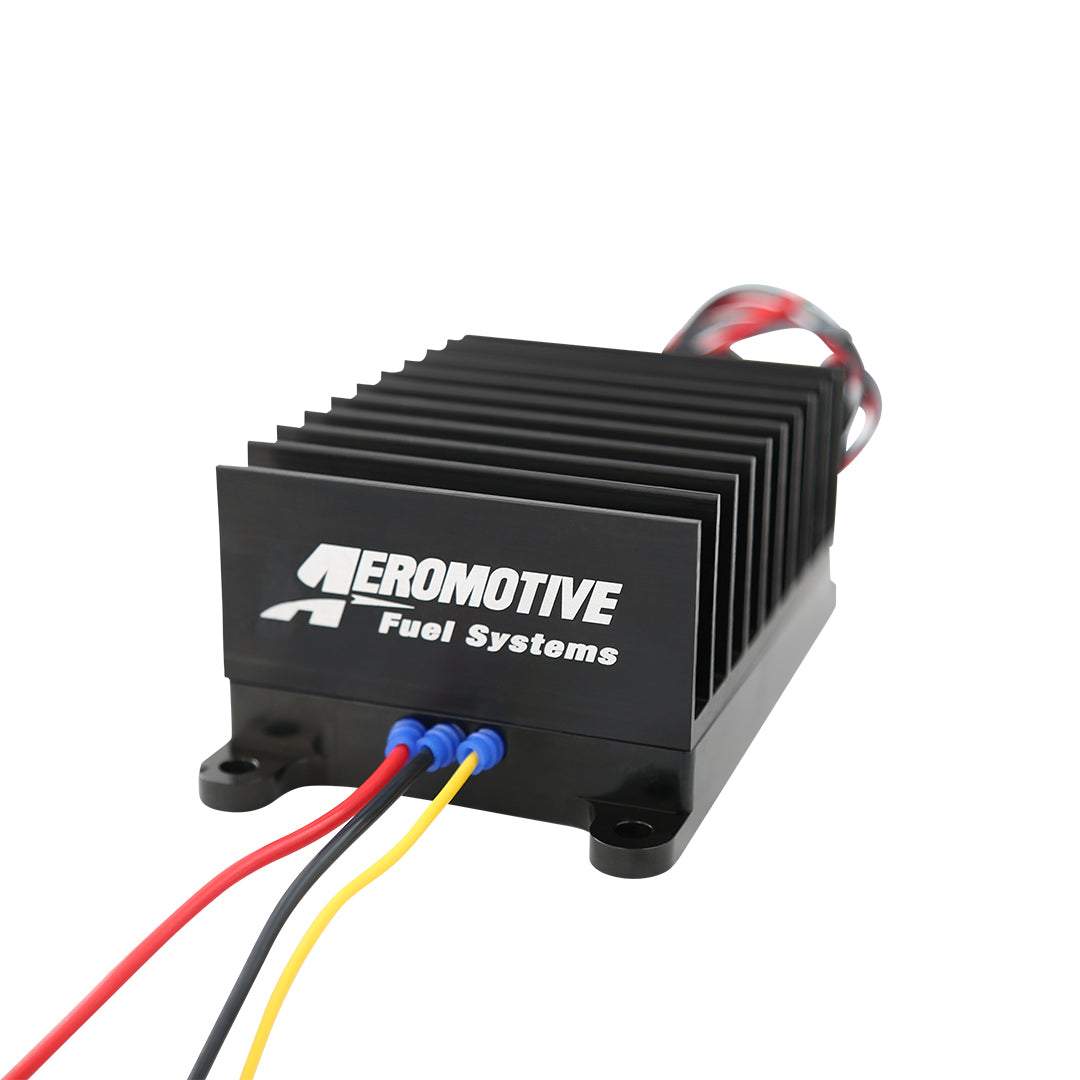

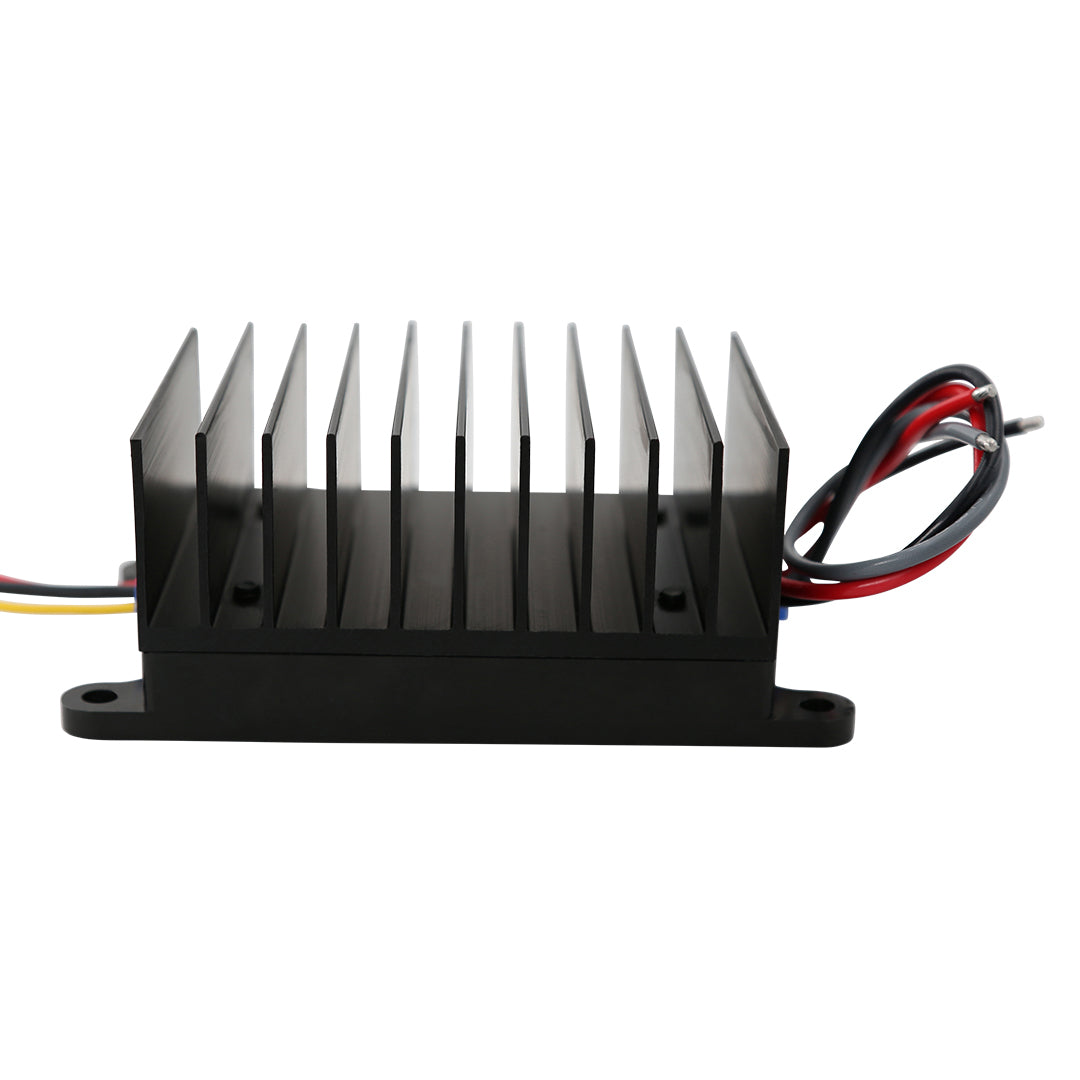

• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability
• Requires straight 12-VDC to 16-VDC power supply.
• Not compatible with pulse modulated systems or fuel pump speed controllers.

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
