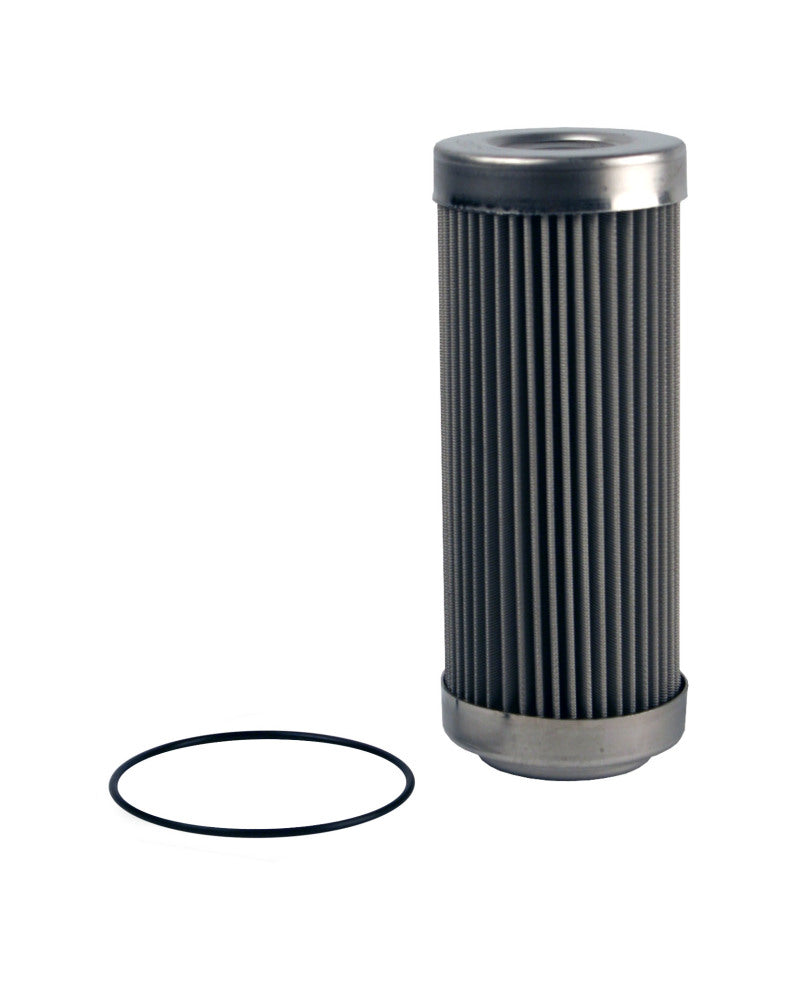

Aeromotive 40 Micron Stainless Filter Element 2-1/2 Inch Housing - 12642

Key Features & Specs:

• Replacement fuel filter element for Aeromotive billet in-line filters
• 40-micron stainless steel mesh filtration
• Cleanable and reusable filter element

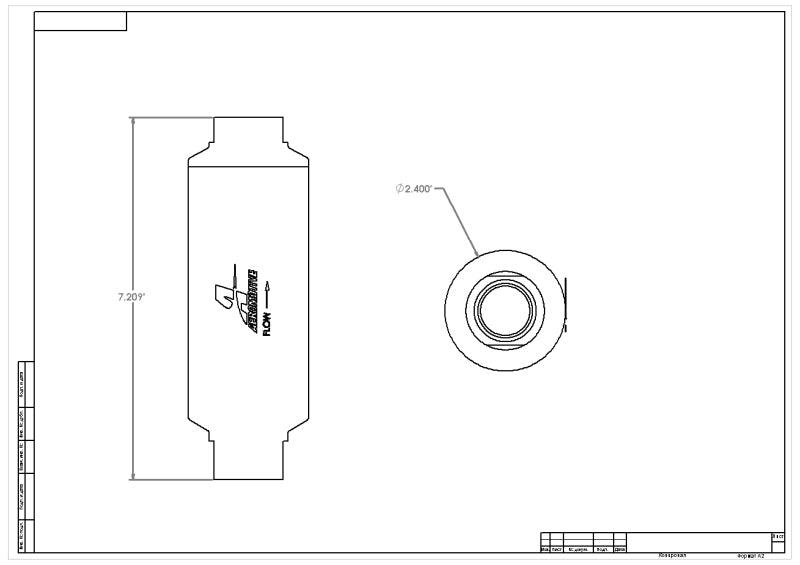

• Fits 2-1/2-inch OD x 7-inch long ORB-12 filter housings
• Includes replacement housing O-ring for proper sealing
• Designed for use on the pressure side of the fuel pump
• Compatible with gasoline, diesel, ethanol, and methanol fuels
• Suitable for medium to large electric pumps and mechanical pumps
• Supports 6-series pumps up to 32 GPM spur gear pumps

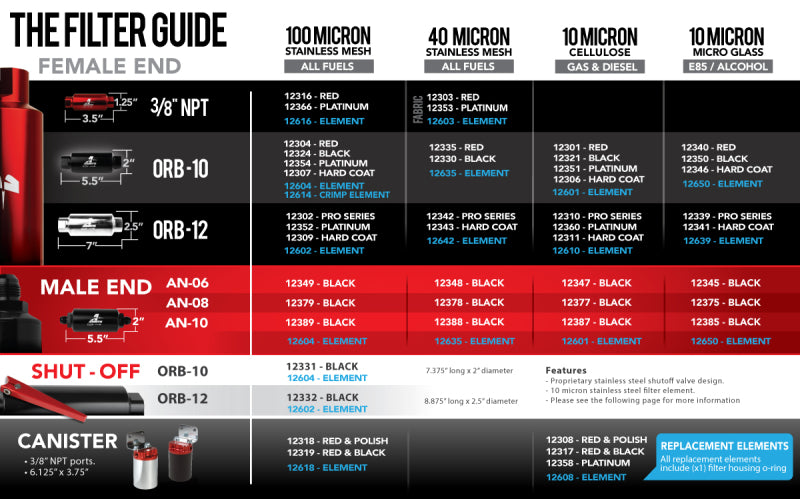

Compatible Filter Assemblies:

• Aeromotive 12342
• Aeromotive 12343

The Aeromotive 12642 Replacement Fuel Filter Element is designed for Aeromotive billet in-line fuel filter assemblies using 2-1/2-inch diameter housings. Featuring a durable 40-micron stainless steel mesh element, this filter provides excellent contaminant filtration while maintaining high fuel flow capacity. The stainless mesh construction allows the element to be cleaned and reused for extended service life. This replacement element fits 2-1/2-inch OD by 7-inch long ORB-12 filter housings and includes a new housing O-ring to ensure a proper seal during service. Designed for installation on the pressure side of the fuel pump, it supports gasoline, diesel, ethanol, and methanol fuels in high-performance fuel systems.
