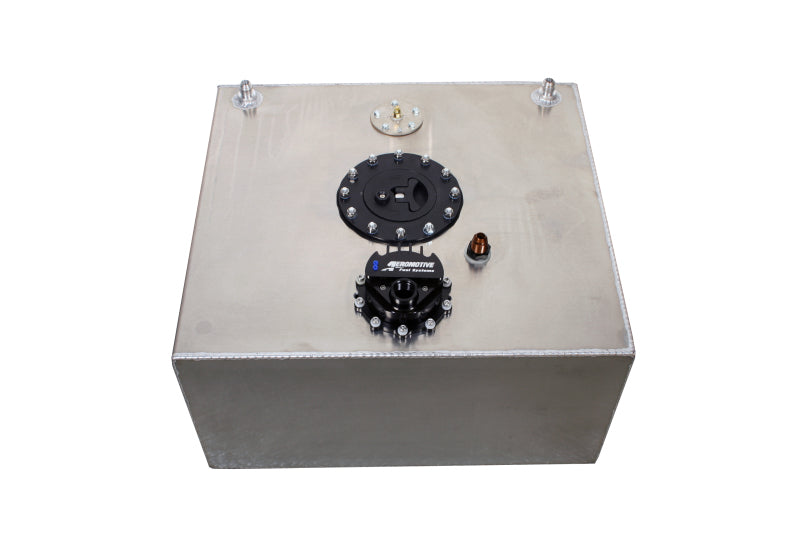

Aeromotive 15 Gal Fuel Cell Brushless Spur Gear 3.5 GPM - 18370

The Aeromotive Fuel Cell with Brushless Spur Gear 3.5 GPM Pump (18370) is a high-performance 15-gallon racing fuel cell engineered for demanding EFI and carbureted fuel systems. Featuring an integrated 3.5 GPM brushless spur-gear in-tank fuel pump with a pre-pump fuel filter, this system provides reliable high-flow fuel delivery for competitive motorsports applications. Built using the same race-proven fuel cell design found in Ford Cobra Jet, Chevy COPO Camaro, and Mopar Drag Pak vehicles, the baffled fuel cell keeps fuel at the pump inlet during aggressive acceleration, braking, and cornering. A fluted pickup with an integrated 100-micron prefilter ensures clean fuel delivery, while the brushless pump design reduces current draw at higher pressures and extends service life when operating with methanol or ethanol fuels. An external brushless controller enhances reliability, simplifies installation, and helps maintain cooler fuel temperatures.

Key Features & Specs:

• 15-gallon racing fuel cell with integrated brushless spur gear pump
• 3.5 GPM high-flow in-tank fuel pump
• EFI rated flow: 1,250 lbs/hr @ 40 PSI, 13.5V
• Carb rated flow: 1,350 lbs/hr @ 9 PSI, 13.5V
• Baffled fuel cell design keeps fuel at pump inlet
• Fluted pickup with integrated 100-micron prefilter
• Aircraft-style filler cap
• ORB-10 outlet port
• AN-08 baffled return port
• Roll-over protected AN-08 vent
• New integral spur-gear pumping mechanism
• 90 PSI continuous operating pressure
• Up to 150 PSI peak pressure (base plus boost)
• Reduced current draw at higher EFI pressures
• Extended service life when running methanol and ethanol fuels
• External brushless controller for cooler fuel and improved reliability
• Requires 12–16 VDC power supply
• 16V charging systems require voltage regulator or step-down converter
• Fuel cell dimensions: 20" W x 18" L x 10" H

Fitment:

Universal Application
