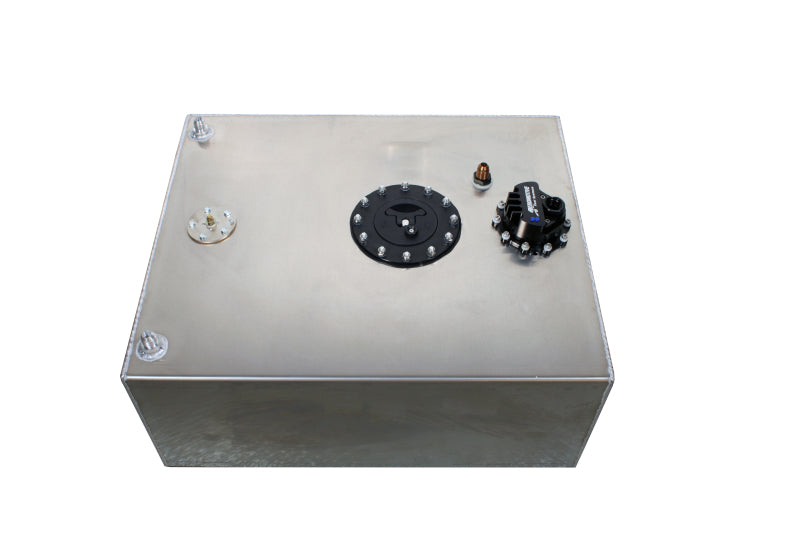

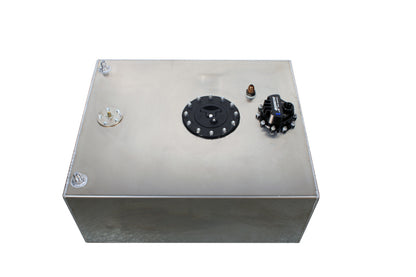

Aeromotive 20 Gal Fuel Cell Brushless Eliminator Pump - 18363

The Aeromotive Fuel Cell with Brushless Eliminator Pump (18363) is a high-capacity 20-gallon racing fuel cell engineered for demanding EFI and carbureted fuel systems. Featuring an integrated Brushless Eliminator in-tank fuel pump module and pre-pump fuel filter, this system delivers consistent high-flow fuel supply for serious motorsports applications. Built using the same race-proven fuel cell design used in Ford Cobra Jet, Chevy COPO Camaro, and Mopar Drag Pak vehicles, the baffled fuel cell keeps fuel at the pump inlet during aggressive acceleration, braking, and cornering. A fluted pickup with an integrated 100-micron prefilter ensures clean fuel delivery, while the brushless Eliminator pump reduces current draw at higher EFI pressures and provides extended service life when operating with methanol or ethanol fuels. An external brushless controller improves reliability, simplifies installation, and helps maintain cooler fuel temperatures.

Key Features & Specs:

• 20-gallon racing fuel cell with integrated brushless Eliminator pump
• EFI rated flow: 1,000 lbs/hr @ 45 PSI, 13.5V
• Carb rated flow: 1,300 lbs/hr @ 9 PSI, 13.5V
• Baffled fuel cell design keeps fuel at pump inlet
• Fluted pickup with integrated 100-micron prefilter
• Aircraft-style filler cap
• ORB-10 outlet port
• AN-08 baffled return port
• Roll-over protected AN-08 vent
• Reduced current draw at higher EFI pressures
• Extended service life when running methanol and ethanol fuels
• Quieter operation than traditional Eliminator pumps
• External brushless controller for cleaner installation and improved reliability
• Requires 12–16 VDC power supply
• 16V charging systems require voltage regulator or step-down converter
• Fuel cell dimensions: 20" W x 24" L x 10" H

Fitment:

Universal Application
