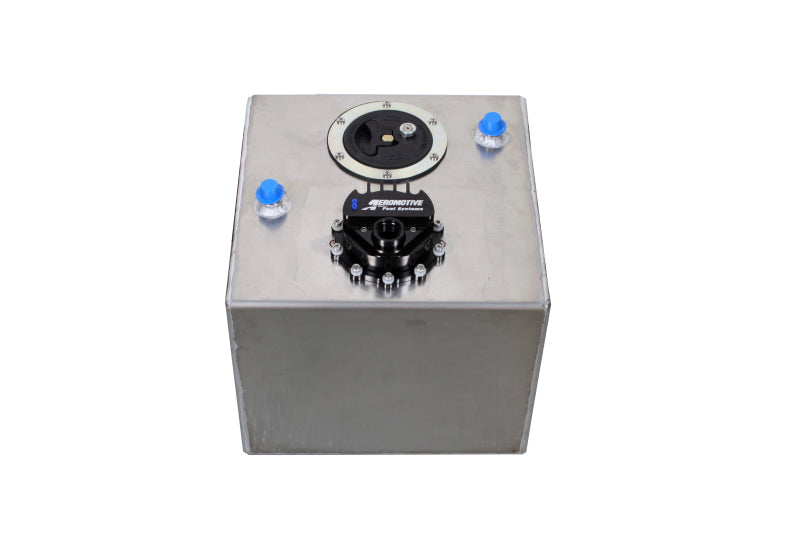

Aeromotive 6 Gal Fuel Cell Brushless A1000 Pump - 18366

The Aeromotive Fuel Cell with Brushless A1000 Pump (18366) is a compact 6-gallon racing fuel cell engineered for high-performance EFI and carbureted fuel systems. Featuring an integrated Brushless A1000 in-tank fuel pump module and a pre-pump fuel filter, this system delivers reliable high-flow fuel supply for demanding motorsports applications. The baffled fuel cell design keeps fuel at the pump inlet during hard acceleration, braking, and cornering, while a fluted pickup with an integrated 100-micron prefilter ensures clean and consistent fuel delivery. The brushless A1000 pump design reduces current draw at higher EFI pressures and extends service life when operating with methanol or ethanol fuels. An external brushless controller allows for cleaner installation, cooler fuel operation, and improved reliability while delivering quieter performance than traditional A1000 pumps.

Key Features & Specs:

• 6-gallon racing fuel cell with integrated brushless A1000 pump
• EFI rated flow: 700 lbs/hr @ 45 PSI, 13.5V
• Carb rated flow: 900 lbs/hr @ 9 PSI, 13.5V
• Baffled fuel cell design keeps fuel at pump inlet
• Fluted pickup with integrated 100-micron prefilter
• Aircraft-style filler cap
• ORB-10 outlet port
• AN-08 baffled return port
• Roll-over protected AN-08 vent
• Reduced current draw at higher EFI pressures
• Extended service life when running methanol and ethanol fuels
• Quieter operation than traditional A1000 pumps
• External brushless controller for cleaner installation and improved reliability
• Requires 12–16 VDC power supply
• Not compatible with pulse-modulated systems or fuel pump speed controllers
• 16V charging systems require voltage regulator or step-down converter
• Not legal for sale or use on emission-controlled vehicles except as a direct OEM replacement

Fitment:

Universal Application
