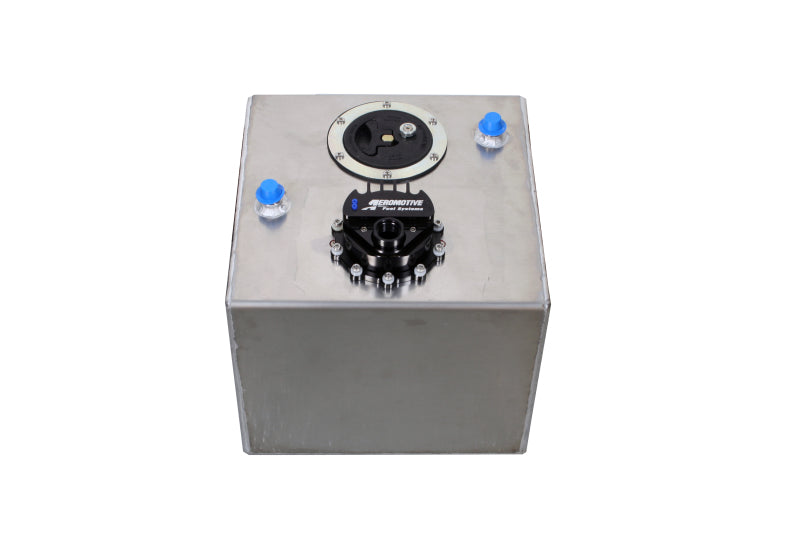

Aeromotive 6 Gal Fuel Cell Brushless Spur Gear 3.5 GPM - 18376

The Aeromotive Fuel Cell with Brushless Spur Gear 3.5 GPM Pump (18376) is a compact 6-gallon racing fuel cell designed for high-performance EFI and carbureted applications. This system features an integrated 3.5 GPM brushless spur-gear in-tank fuel pump with a pre-pump fuel filter to ensure consistent, debris-free fuel delivery. Built using the same racing fuel cell design found in Ford Cobra Jet, Chevy COPO Camaro, and Mopar Drag Pak vehicles, the baffled fuel cell helps maintain fuel supply at the pump inlet during aggressive acceleration, braking, and cornering. A fluted pickup with an integrated 100-micron prefilter provides additional fuel filtration while the brushless spur-gear pump delivers high flow with reduced current draw and extended service life when running methanol or ethanol fuels. An external brushless controller improves reliability, simplifies installation, and helps maintain cooler fuel temperatures.

Key Features & Specs:

• 6-gallon racing fuel cell with integrated brushless spur gear pump
• 3.5 GPM high-flow fuel pump
• EFI rated flow: 1,250 lbs/hr @ 40 PSI, 13.5V
• Carb rated flow: 1,350 lbs/hr @ 9 PSI, 13.5V
• Baffled fuel cell design keeps fuel at pump inlet
• Fluted pickup with integrated 100-micron prefilter
• Aircraft-style filler cap
• ORB-10 outlet port
• AN-08 baffled return port
• Roll-over protected AN-08 vent
• New integral spur-gear pumping mechanism
• 90 PSI continuous operating pressure
• Up to 150 PSI peak pressure (base plus boost)
• Reduced current draw at higher EFI pressures
• Extended service life with methanol and ethanol fuels
• External brushless controller for improved reliability and cooler fuel
• Requires 12–16 VDC power supply
• 16V charging systems require voltage regulator or step-down converter

Fitment:

Universal Application
