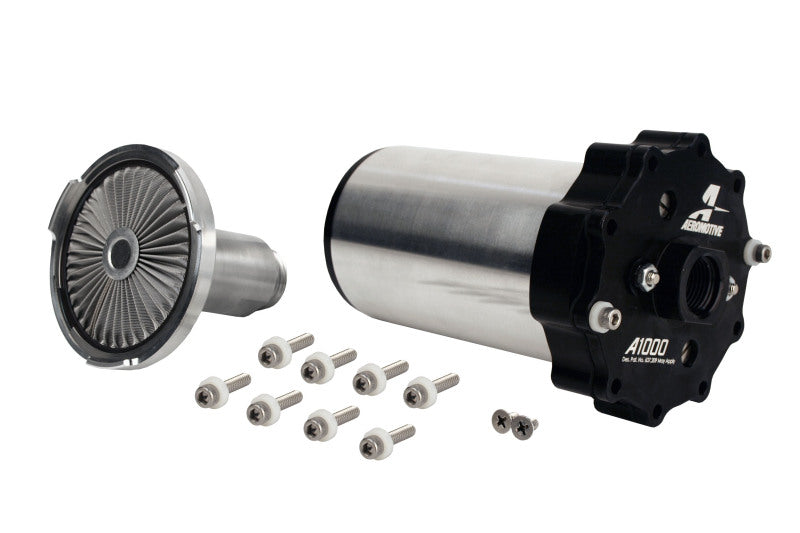

Aeromotive A1000 Fuel Pump Module with Fuel Cell Pickup - 18003

The Aeromotive 18003 A1000 Fuel Pump Module with Fuel Cell Pickup is a high-performance replacement pump assembly designed specifically for Aeromotive fuel cells. Built around the proven A1000 fuel pump platform, this in-tank module delivers reliable high-volume fuel delivery for demanding fuel-injected performance applications. The internal rotary vane pump design provides consistent flow and durability, making it ideal for high-horsepower street and race builds. Compatible with gasoline fuel systems, the module includes a pickup tube, mounting bracket, strainer, gasket, and lock ring for secure installation. Engineered for dependable performance, this 12-volt brushed motor fuel pump module integrates directly into compatible Aeromotive fuel cells for a complete replacement solution.

Key Features & Specs:

• Aeromotive A1000 series fuel pump module with fuel cell pickup
• Replacement module designed for Aeromotive fuel cells
• Internal in-tank fuel pump configuration
• Supports high-performance fuel injection systems
• Maximum flow rating: 1000 (Aeromotive rated flow)
• Compatible with gasoline fuel systems
• Durable rotary vane pump design
• 12-volt brushed motor operation
• Pulse width modulation compatible
• ORB-10 outlet fitting
• 0.75-inch inlet outside diameter
• Includes pickup tube and fuel pump module assembly
• Strainer included for fuel system protection
• Mounting bracket and mounting hardware included
• Seal, gasket, and lock ring included for installation
• Threaded stud terminals with 2 terminal connections

Fitment:

Universal
