Aeromotive 18311 Trifekta Phantom In-Tank Triple 450 Fuel Pump P/N 18311

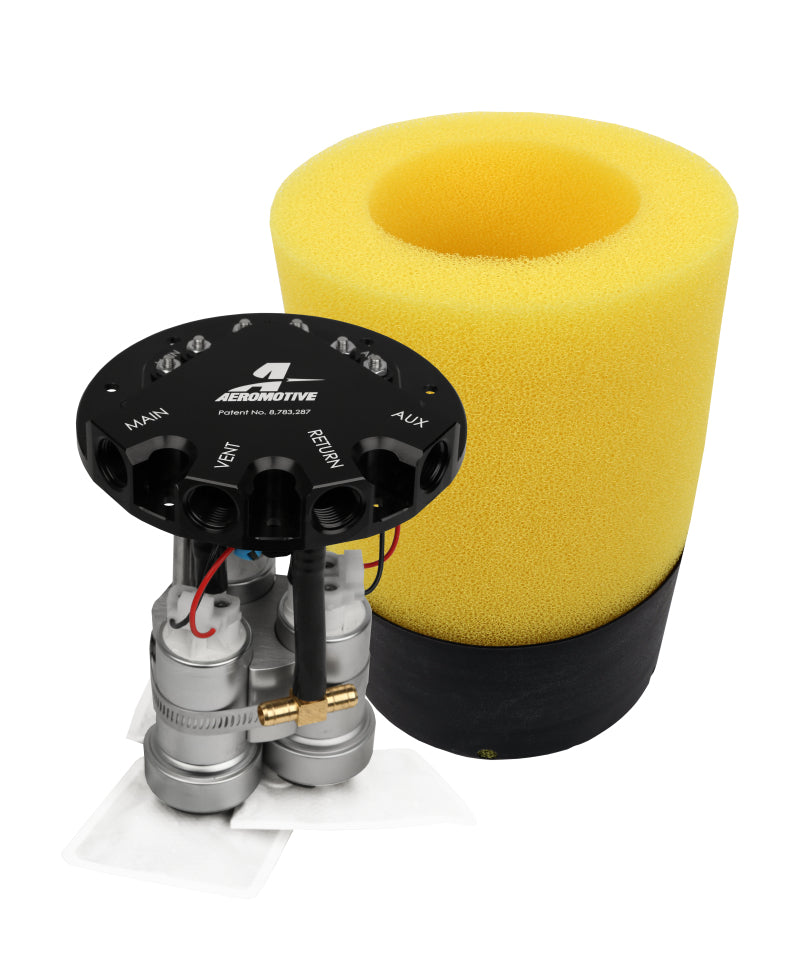

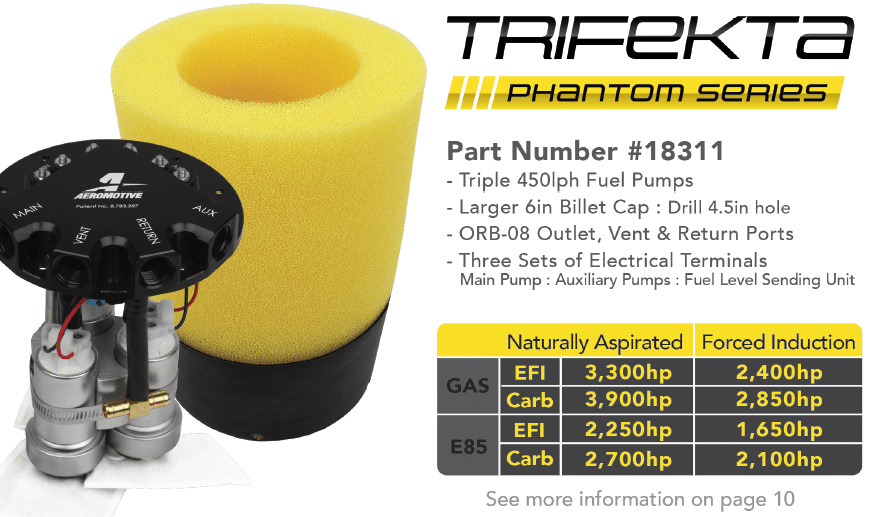

P/N 18311 : Trifekta™ Phantom In-Tank Kit

Aeromotive’s new Phantom Trifekta is designed to extend the patented Phantom technology into the realm of ultra-high horsepower street/strip applications. Equipped with triple 450lph, E85 friendly Walbro pumps, the new Aeromotive Trifekta supports staged pump control to reduce recycling and improve continuous duty capability. The Trifekta is ready to feed blown EFI applications making a whopping 1,650 FWHP on E85 and as much as 2,400 FWHP on gas.

• Triple 450lph Walbro Fuel Pumps
• Patented Phantom Bladder technology
• Includes everything required to mount in-tank
• ORB-08 Outlet, Vent & Return Ports
• 6in Billet Top Cap : Requires Drilling 4.5in hole
• Three Sets of Electrical Terminals :  Main Pump, Auxiliary Pumps and Fuel Level Sending Unit
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Fuel Injected: GAS
Up to 3,300 FWHP – naturally aspirated
Up to 2,400 FWHP – forced induction

Carbureted Engines: GAS
Up to 3,900 FWHP – naturally aspirated
Up to 2,850 FWHP – forced induction

Fuel Injected: E85
Up to 2,250 FWHP – naturally aspirated
Up to 1,650 FWHP – forced induction

Carbureted: E85
Up to 2,700 FWHP – naturally aspirated
Up to 2,100 FWHP – forced induction

installation instructions
