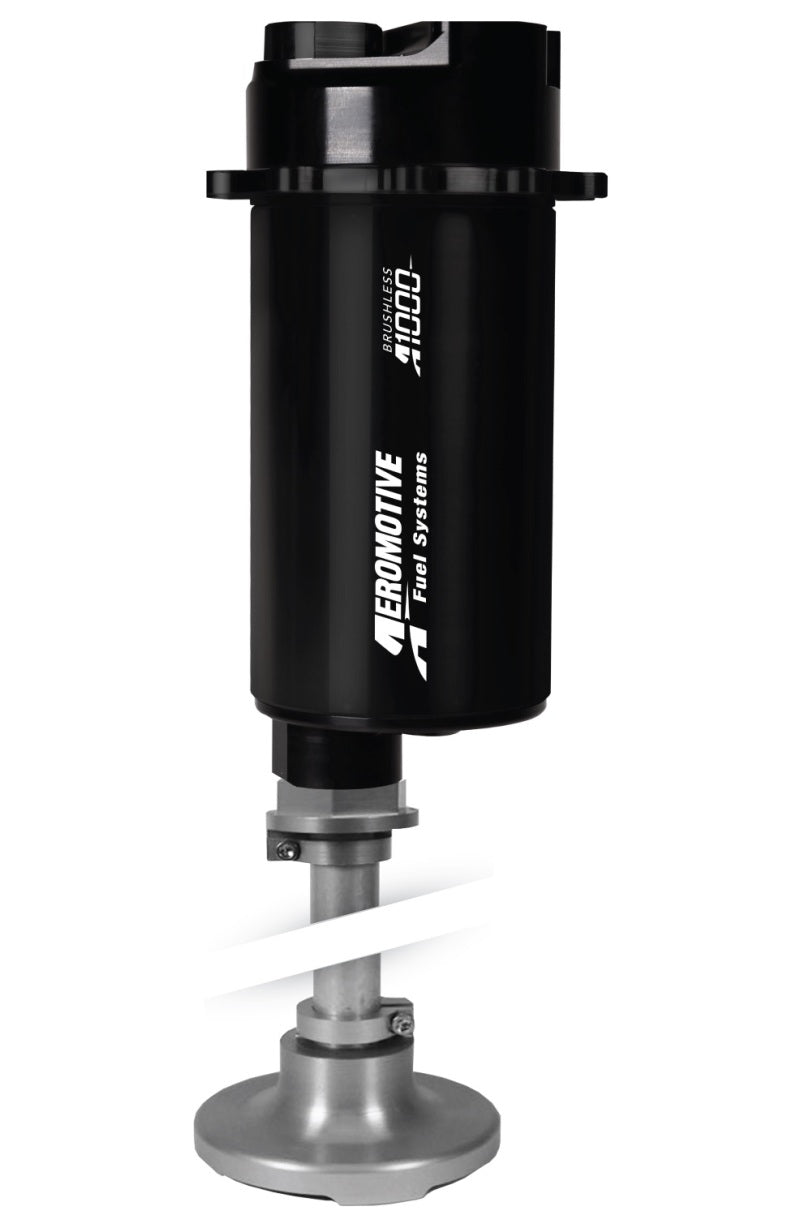

Aeromotive Brushless A1000 In-Tank Fuel Pump Universal - 18368

The Aeromotive Brushless A1000 In-Tank Fuel Pump (18368) is a high-performance universal fuel pump designed for EFI and carbureted fuel systems requiring dependable high-volume fuel delivery. Featuring a brushless motor design, this pump reduces current draw at higher EFI pressures while providing extended service life when operating with methanol or ethanol fuels. The adjustable in-tank configuration fits fuel tank depths from 9.8 to 17.8 inches, allowing flexible installation across a wide range of custom fuel systems. An external brushless controller enables cleaner installation, improved reliability, and cooler fuel operation while delivering quieter performance than traditional A1000 Stealth pumps.

Key Features & Specs:

• Universal brushless A1000 in-tank fuel pump
• Fixed-speed high-performance pump design
• Adjustable installation height: 9.8" – 17.8" tank depth
• EFI rated flow: 700 lbs/hr @ 45 PSI, 13.5V
• Carb rated flow: 900 lbs/hr @ 9 PSI, 13.5V
• Reduced current draw at higher EFI pressures
• Extended service life when running methanol and ethanol fuels
• Quieter operation than traditional A1000 Stealth pumps
• External brushless controller for cooler fuel and improved reliability
• ORB-10 outlet port
• Requires 12–16 VDC power supply
• 16V charging systems require voltage regulator or step-down converter
• Not compatible with pulse-modulated systems or fuel pump speed controllers

Fitment:

Universal Application
