Aeromotive Phantom 200 Universal In-Tank Fuel Pump 60 PSI 6-10in Depth - 18398

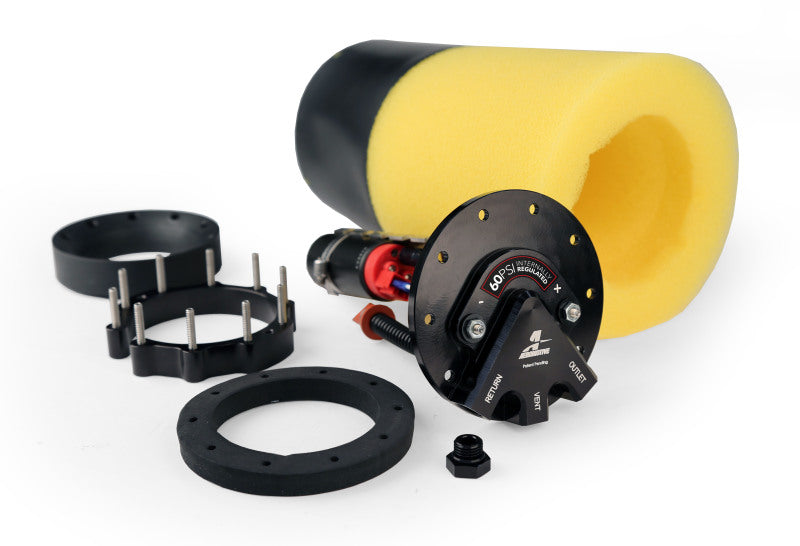

The Aeromotive Phantom 200 Universal In-Tank Fuel Pump (18398) is designed to deliver reliable fuel supply for returnless EFI fuel systems without the need for complex fabrication. This Phantom Series kit features Aeromotive’s 200 LPH Stealth in-tank pump with an internal 55–60 PSI bypass valve, making it ideal for returnless fuel system installations. Designed for tanks with a depth of 6–10 inches, the kit allows for a simple installation using a single AN-06 supply line routed through a high-flow fuel filter to the engine. Capable of supporting up to 600 flywheel horsepower naturally aspirated or 450 flywheel horsepower with forced induction on gasoline, the Phantom 200 system offers excellent performance for street and performance builds.

Key Features & Specs:

• Phantom Series universal in-tank fuel pump system

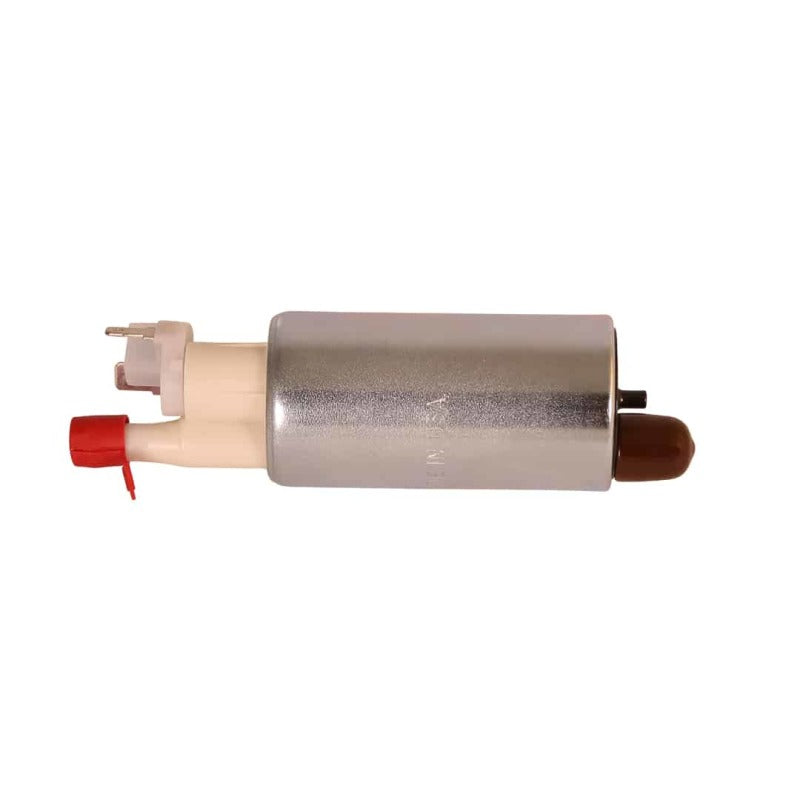

• 200 LPH Stealth fuel pump
• Supports up to 600 FWHP naturally aspirated
• Supports up to 450 FWHP forced induction
• Designed for returnless EFI fuel systems

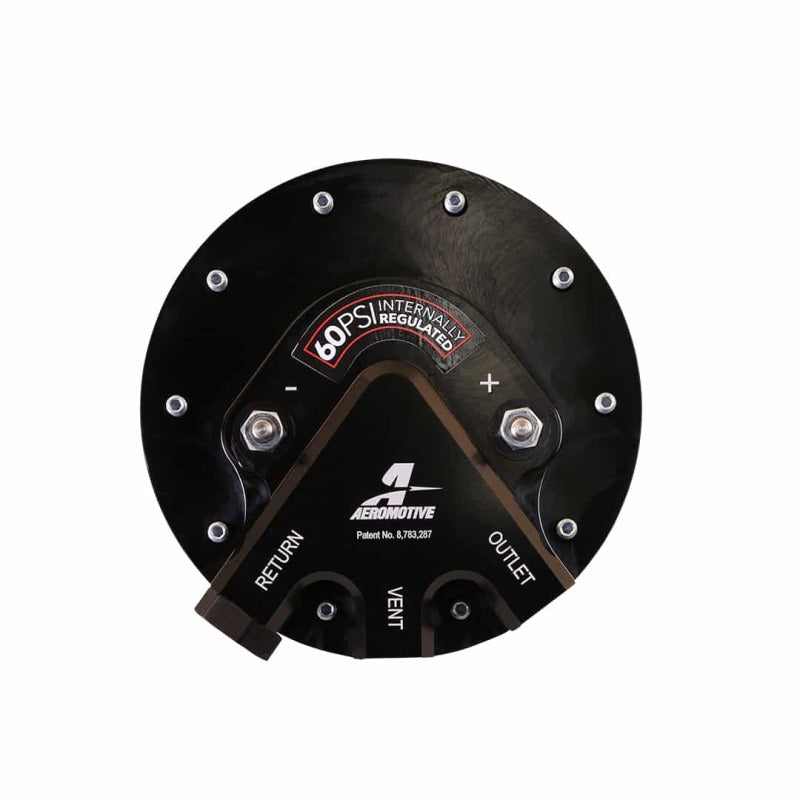

• Internal 55–60 PSI bypass valve
• Fits fuel tanks with 6–10 inch depth
• ORB-06 outlet and vent ports
• Simple installation with single AN-06 supply line
• Gasoline compatible only (not compatible with E85)
• Designed for non pulse-modulated returnless systems

Fitment:

Universal Application
