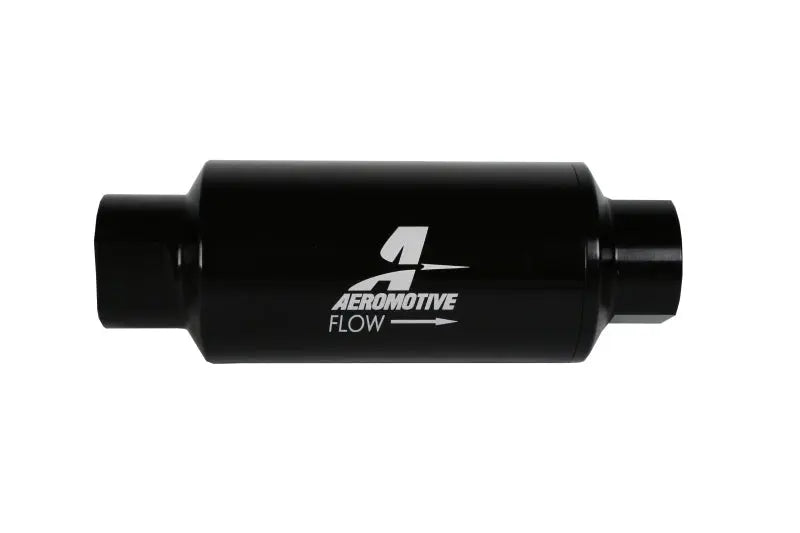

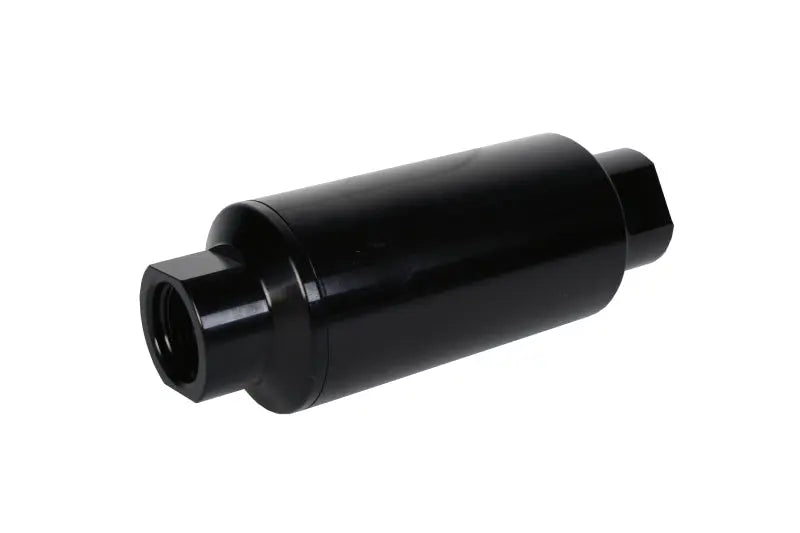

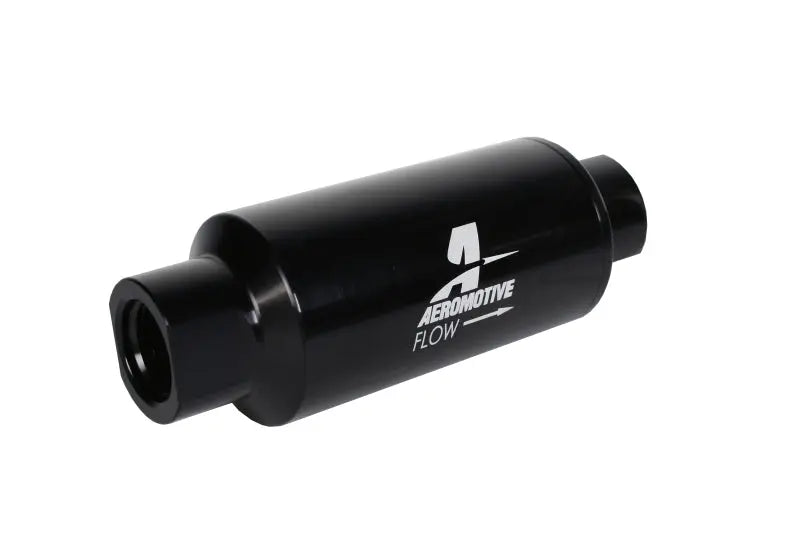

Aeromotive 10 Micron Inline Fuel Filter ORB-10 Black - 12350

Key Features & Specs:

• High-flow inline fuel filter
• Replaceable 10-micron microglass filter element
• ORB-10 inlet and outlet ports (AN-10 compatible)
• Compatible with gasoline, E85, and alcohol fuels
• High flow capacity: 2,000 lb/hr
• Minimal pressure drop design for efficient fuel delivery
• CNC-machined billet aluminum housing
• Bright dip black anodized finish for corrosion resistance
• Large internal pleated element for increased filtration surface area
• External mounting design

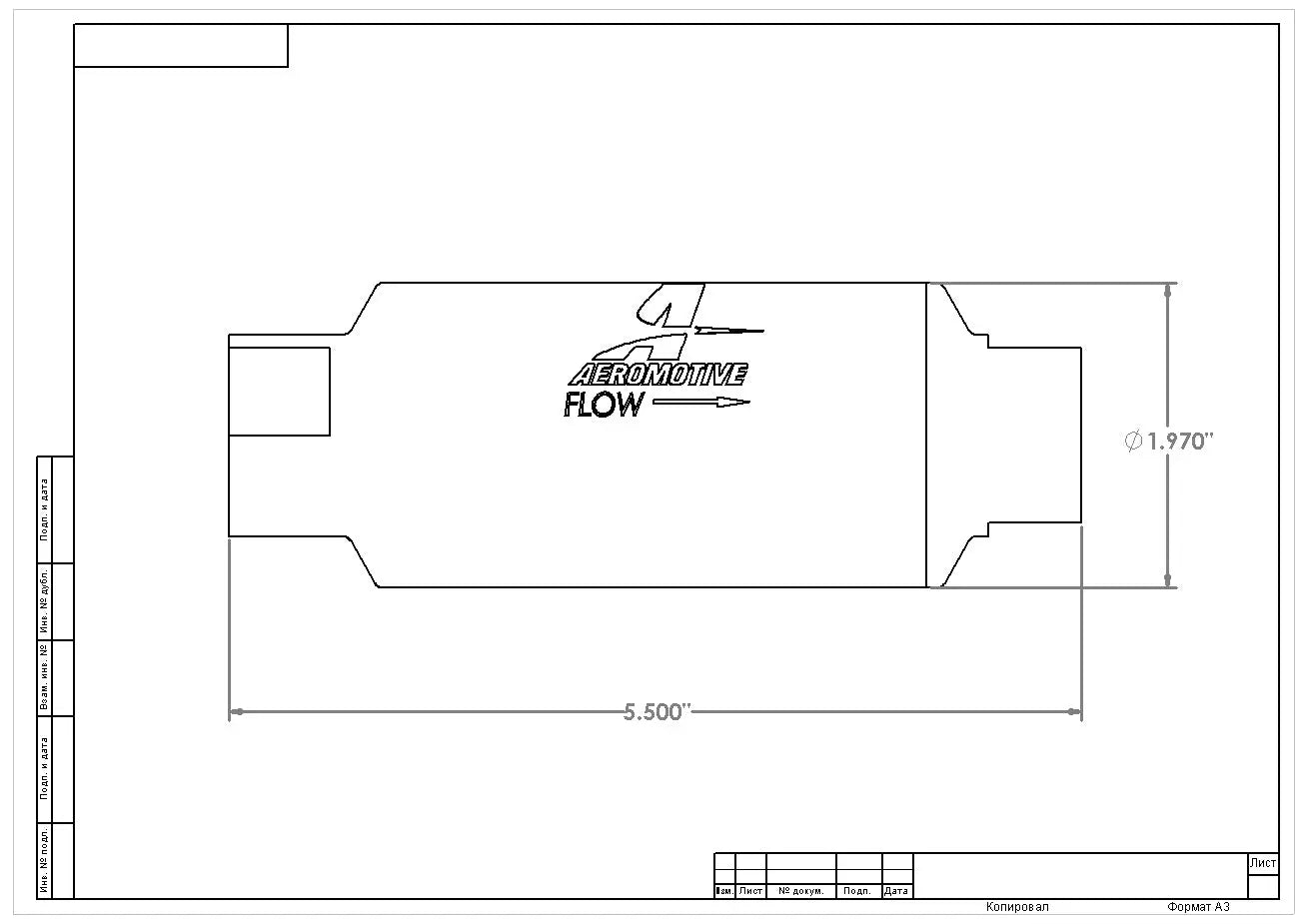

• Filter housing dimensions: 5.5" length x 2" diameter
• Maximum fuel pressure rating: 70 PSI

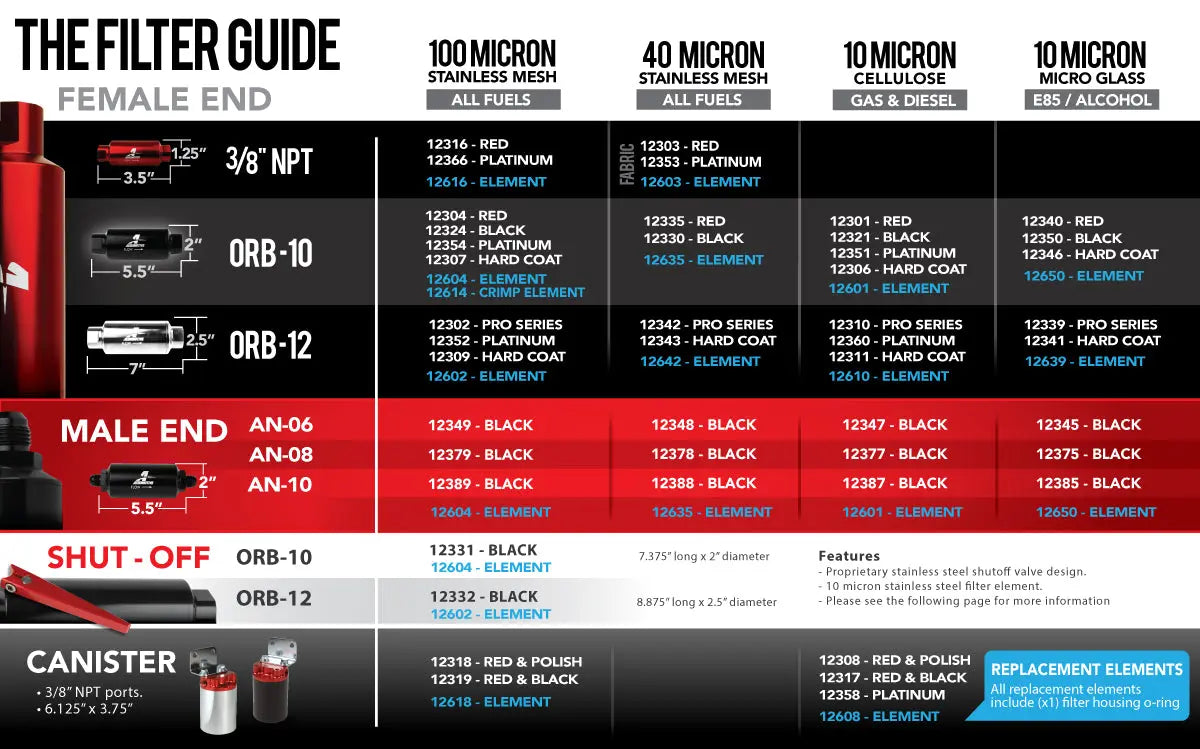

• Replacement filter element available (P/N 12650)
• Filter element and sealing gasket included

The Aeromotive 12350 Inline Fuel Filter is engineered for high-performance fuel systems requiring maximum filtration efficiency and minimal pressure drop. Featuring a replaceable 10-micron microglass filter element, this filter effectively captures fine contaminants while maintaining exceptional fuel flow. The billet aluminum housing is CNC-machined for durability and finished with a bright dip black anodized coating for corrosion resistance and long service life. Designed with ORB-10 ports, the filter integrates easily with AN-10 fuel line systems and can be adapted to other AN sizes using appropriate fittings. With high pleat surface area and a flow capacity of up to 2,000 lb/hr, this filter provides excellent filtration performance for gasoline, E85, and alcohol-based fuel systems.
