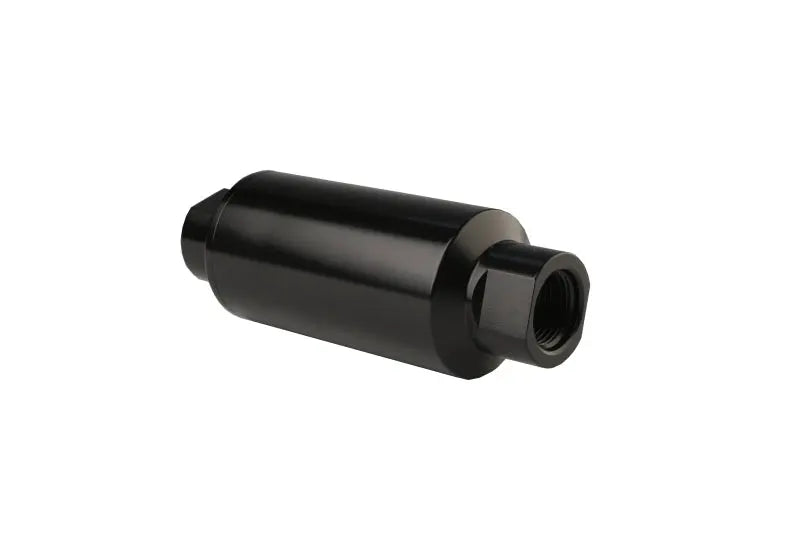

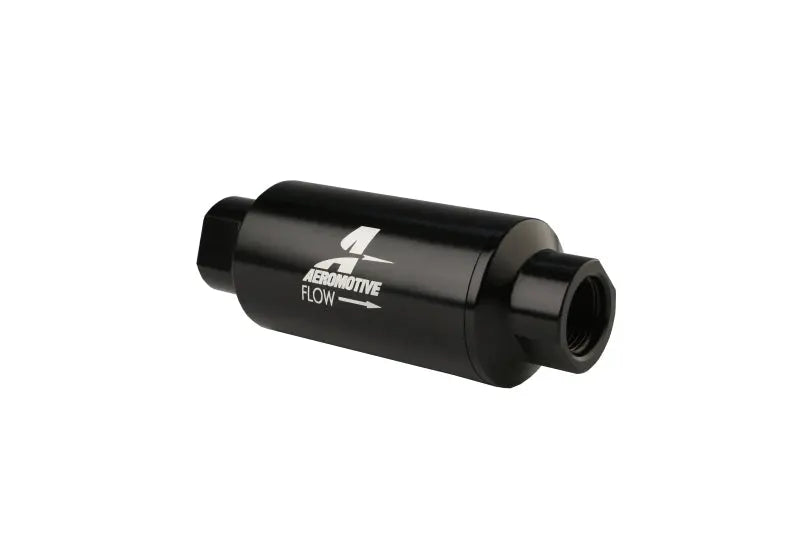

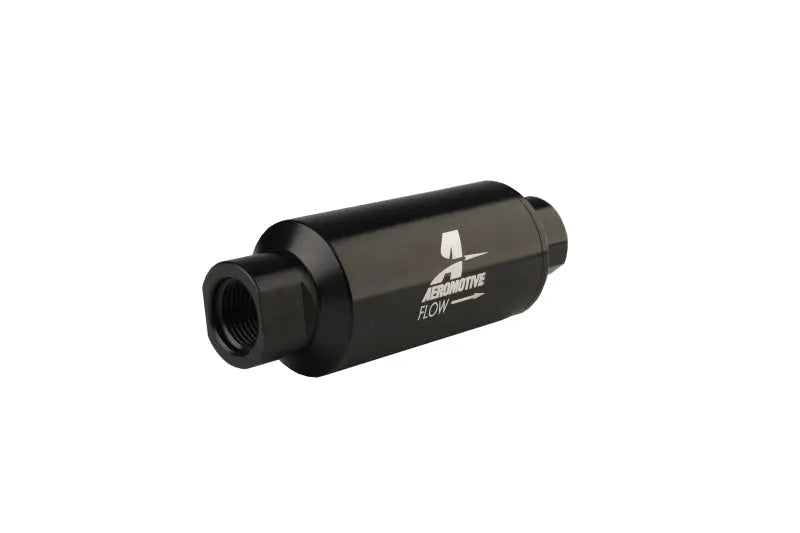

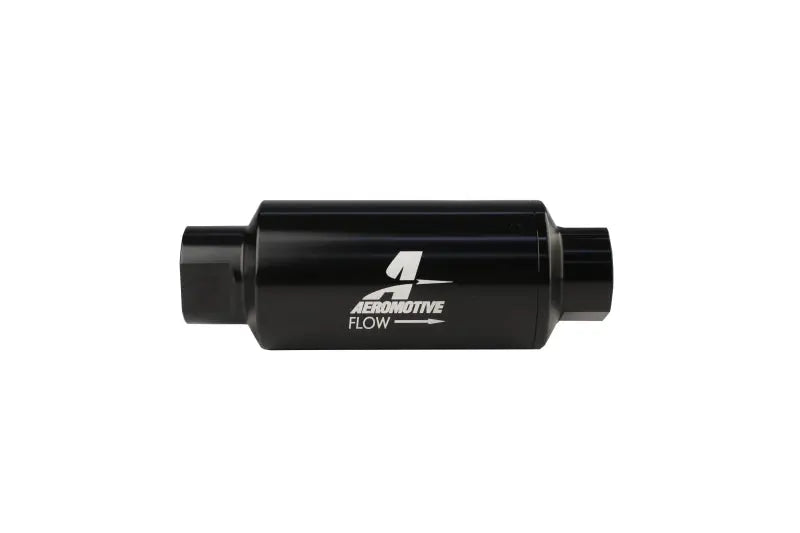

Aeromotive Black 10 Micron Fuel Filter with ORB-10 inlet/outlet ports.

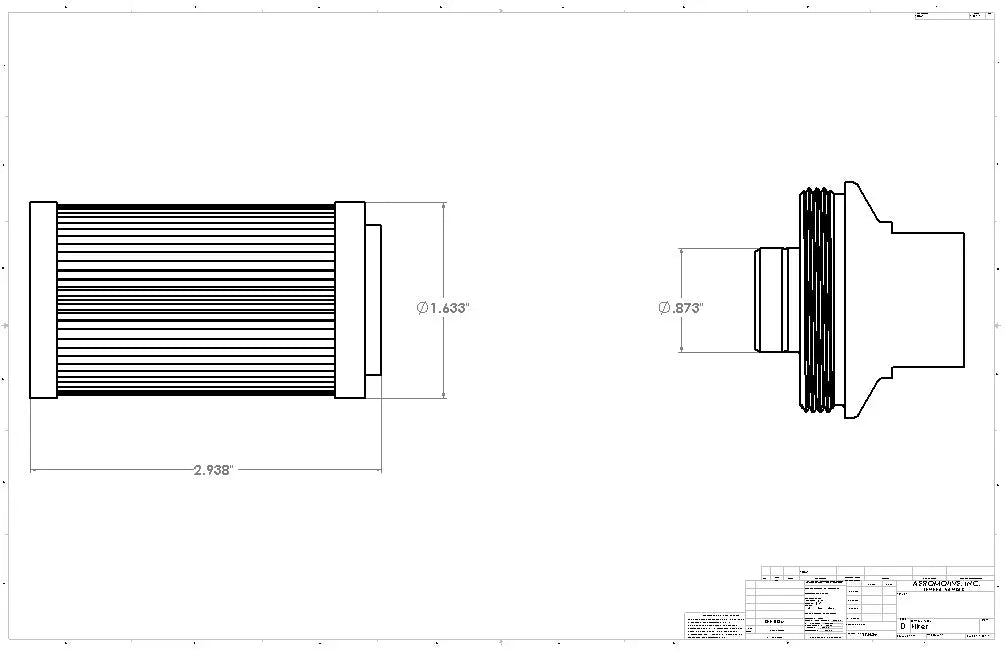

This Aeromotive Fuel Filter (FG64) features a high flow rebuildable design, and is perfect for high performance applications. The 10 Micron Filter is constructed from fabric, and will collect small pieces of debris in the fuel system. The Fuel Filter Body can unthread so you can change out or check the filter element.
Features and Benefits:
- For EFI and Carbureted Engines
- High Flow, 10-Micron Filter Element (Fine)
- Flows 2,000 lb/hr with a Pressure Drop of Less than 1 PSI
- Compact Size
- ORB-10 Inlet/Outlet Ports
- O-Ring Design for Positive Sealing in High Pressure Applications
- CNC-Machined from 6061-T6 Aircraft Aluminum
- Bright Dip Black Anodized Finish
- Proudly Made in the USA!
Please Note: This Fuel Filter is NOT suitable for use with E85 or Alcohol Applications.
The Fuel Filter Body is constructed from CNC-Machined 6061-T6 Aircraft Aluminum. Once the Fuel Filter Body is fully constructed it is then finished in a Black Anodized Coating. On each end of the Filter Body an ORB-10 Fitting is installed so the customer can run a ORB-10 hose all the way to the Fuel Pressure Regulator. This Fuel Filter is proudly made in the USA!
Vehicle Fitment:

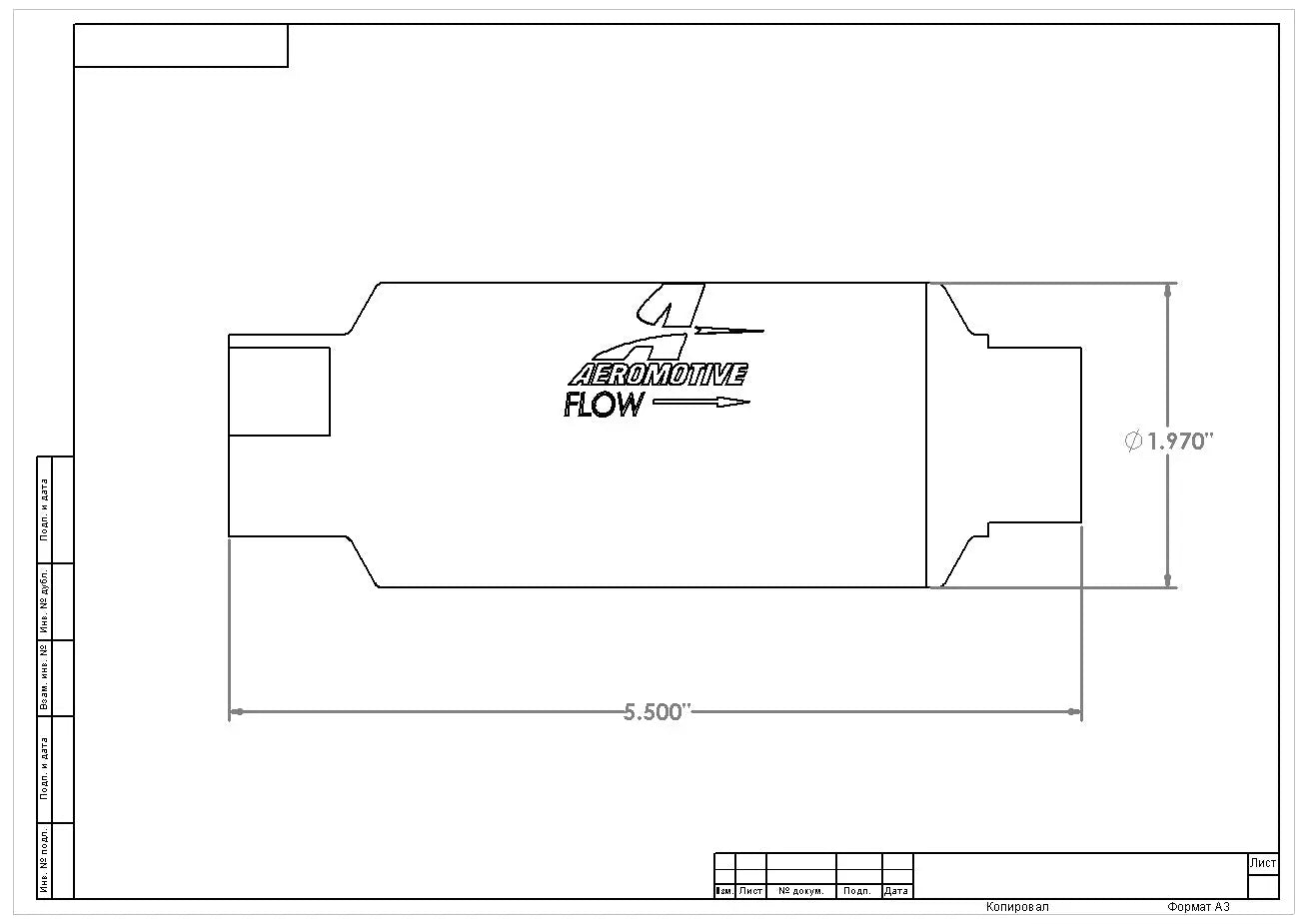

Length: 5-1/2”
Diameter: 2”
