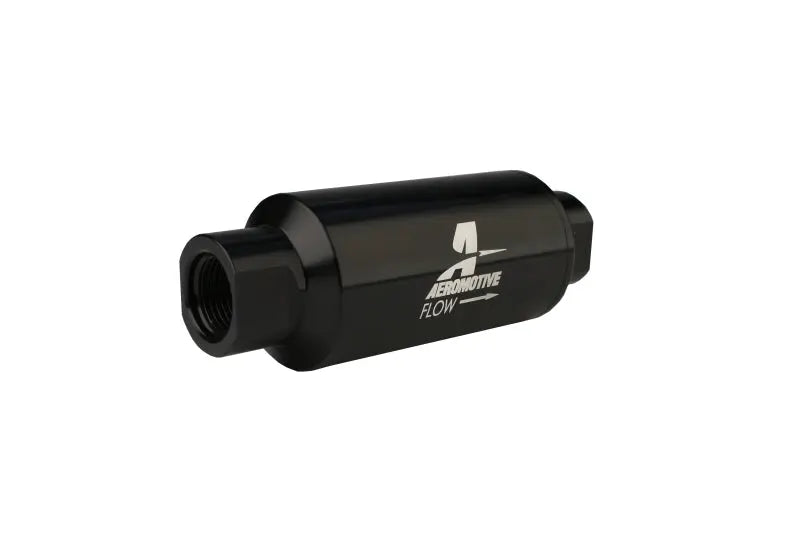

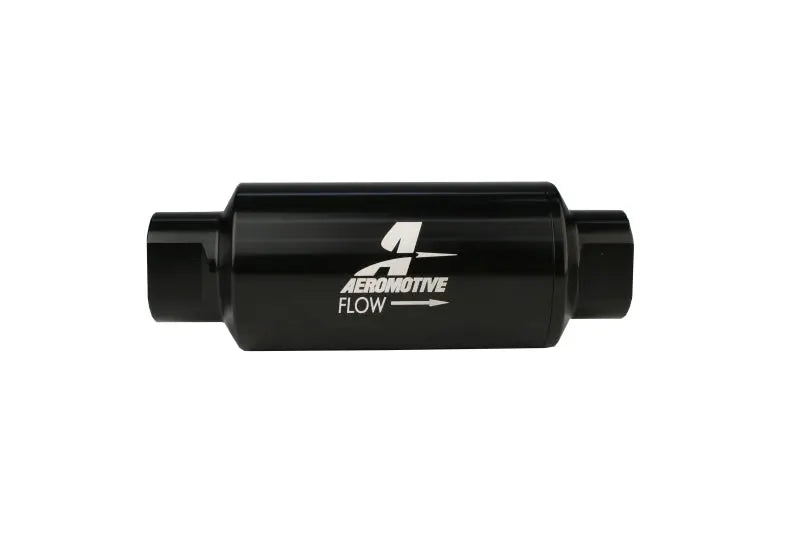

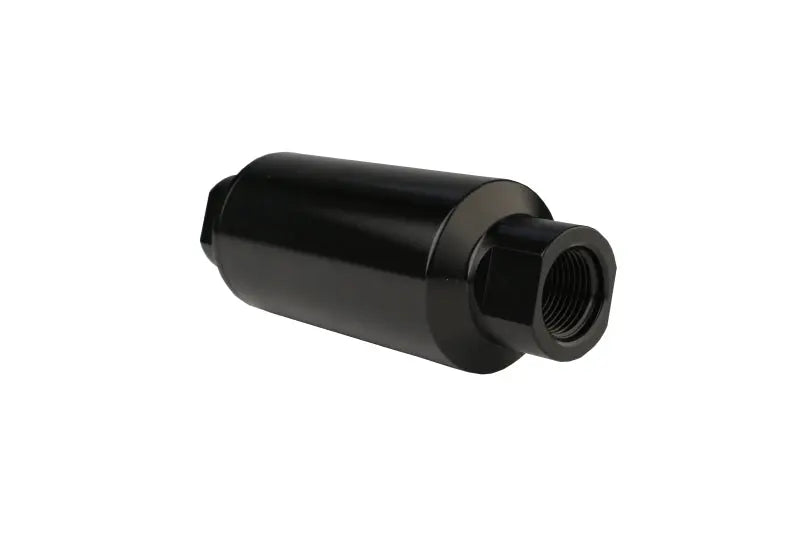

Aeromotive 100 Micron Inline Fuel Filter ORB-10 Black - 12324

Key Features & Specs:

• High-flow inline fuel filter

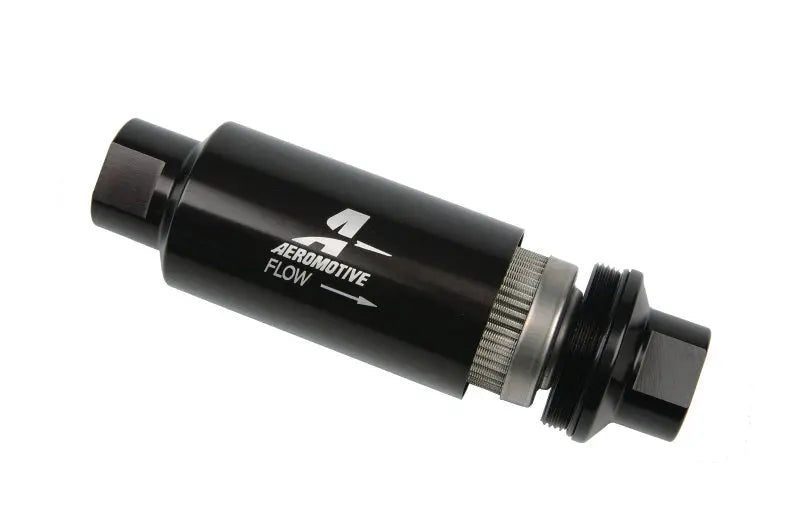

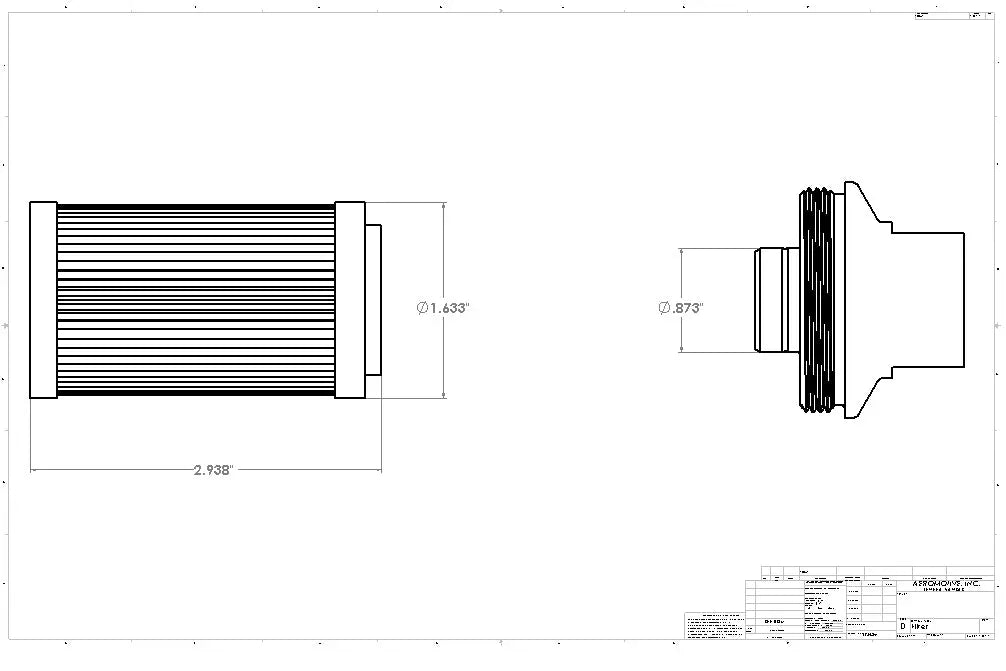

• Cleanable 100-micron stainless steel mesh filter element
• ORB-10 inlet and outlet ports
• Compatible with gasoline, diesel, ethanol, and alcohol fuels
• High flow capacity: 2,000 lb/hr
• Less than 1 PSI pressure drop at rated flow
• Designed for installation before the fuel pump
• CNC-machined 6061-T6 billet aluminum housing
• Bright dip black anodized finish for corrosion resistance
• O-ring sealed housing for high-pressure applications
• External mounting configuration

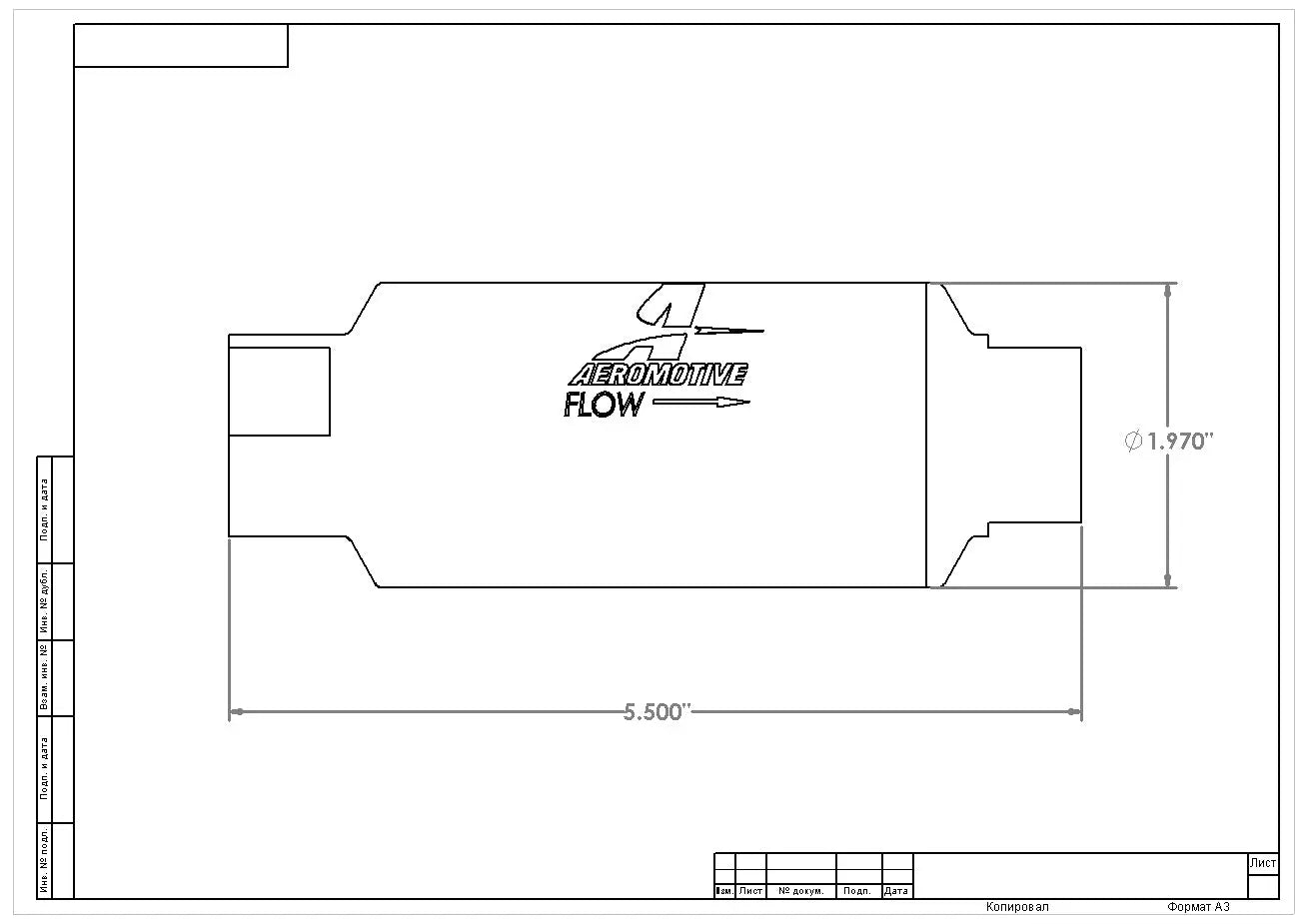

• Filter housing dimensions: 5.5" length x 2" diameter
• Maximum fuel pressure rating: 70 PSI
• Filter element and sealing gasket included

The Aeromotive 12324 Inline Fuel Filter is designed to protect fuel pumps and maintain reliable fuel system performance in high-performance applications. Featuring a cleanable 100-micron stainless steel mesh filter element, this high-flow inline filter removes larger contaminants while allowing excellent fuel flow. The billet aluminum housing is CNC-machined from 6061-T6 aircraft-grade aluminum and finished with a bright dip black anodized coating for corrosion resistance and durability. With ORB-10 ports that can be adapted to AN-10, AN-08, or AN-06 fuel lines, the filter integrates easily into performance fuel systems. Capable of flowing up to 2,000 lb/hr with less than 1 PSI pressure drop, this filter is ideal for installation between the fuel tank and pump to protect fuel system components.
