Aeromotive Phantom Fuel Cell Mounting Plate Kit - 18056

Key Features & Specs:

• Universal Cell Compatibility: Designed to fit most fuel cells featuring a standard 6" x 10" outer bolt pattern.
• Broad Pump Support: Compatible with Phantom 200, 340, Dual 340, and Flex systems.
• High-Flow Ready: Provisions for A1000, Eliminator, and 3.5 through 10 GPM Brushless/Brushed pumps.

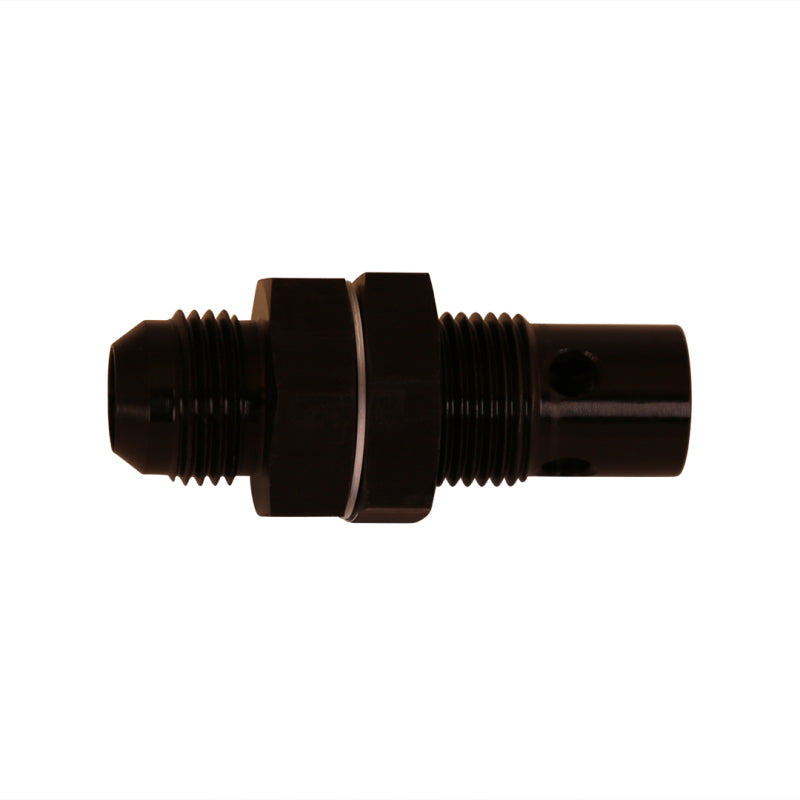

• Safety First: Includes an integrated roll-over valve for track safety and compliance.
• Complete Kit: Comes with a billet fuel filler neck, cap, nut ring, and high-quality gasket.

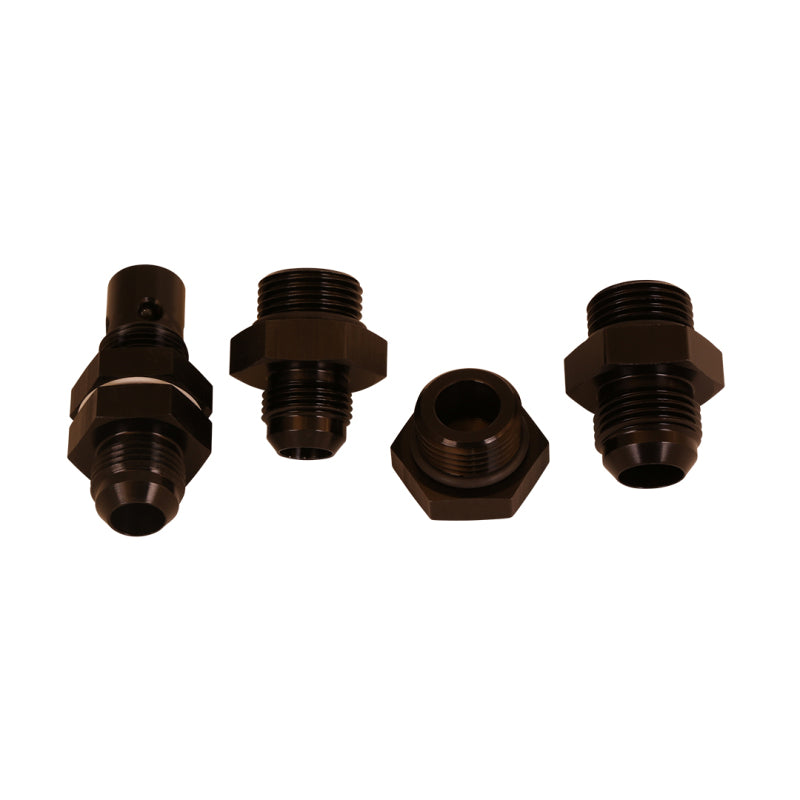

• Plumbing Convenience: Return line port fittings are included to streamline your fuel system installation.
• Sender Ready: Pre-drilled provisions allow for easy installation of a tube-style fuel level sender.

Fitment:

Universal fitment for Fuel Cells with 6" x 10" Bolt Pattern

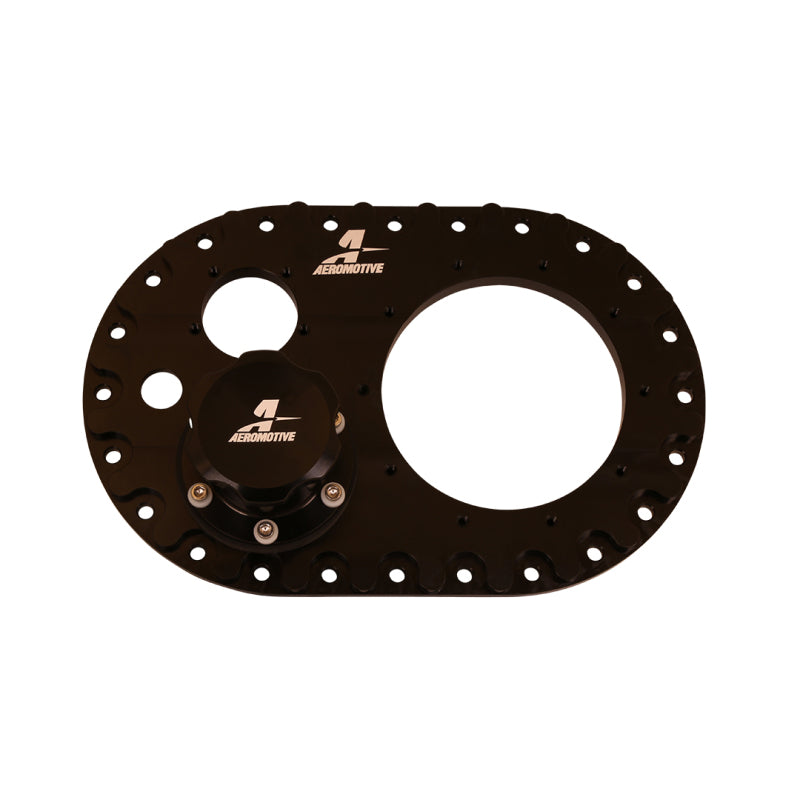

The Aeromotive Phantom Fuel Cell Mounting Plate is the ultimate hardware solution for integrating high-performance fuel systems into a standard fuel cell. Designed for maximum versatility, this plate provides a secure mounting platform for a wide range of Aeromotive in-tank pumps and essential accessories. Each plate is CNC-machined from premium billet aluminum and features a built-in roll-over safety valve, a billet filler neck with a matching cap, and dedicated provisions for a tube-style fuel level sending unit. Whether you are running a Phantom 340 or a massive 10 GPM Brushless pump, this all-in-one mounting solution simplifies your plumbing while ensuring a professional, leak-free seal for your race or street application.
