Aeromotive Pro-Series 10 Micron Fuel Filter AN-12 ORB Ports - 12310

Key Features & Specs:

• Pro-Series high-flow inline fuel filter
• Replaceable 10-micron fabric (cellulose) filter element
• AN-12 ORB inlet and outlet ports
• Compatible with gasoline and diesel fuels
• High flow capacity: 2,000 lb/hr
• Less than 0.5 PSI pressure drop at rated flow
• Durable billet aluminum housing construction
• Hard-coat black anodized finish
• Female AN-12 inlet and outlet threads
• External mounting design
• Filter housing dimensions: 7" length x 2.5" diameter
• Maximum fuel pressure: 70 PSI

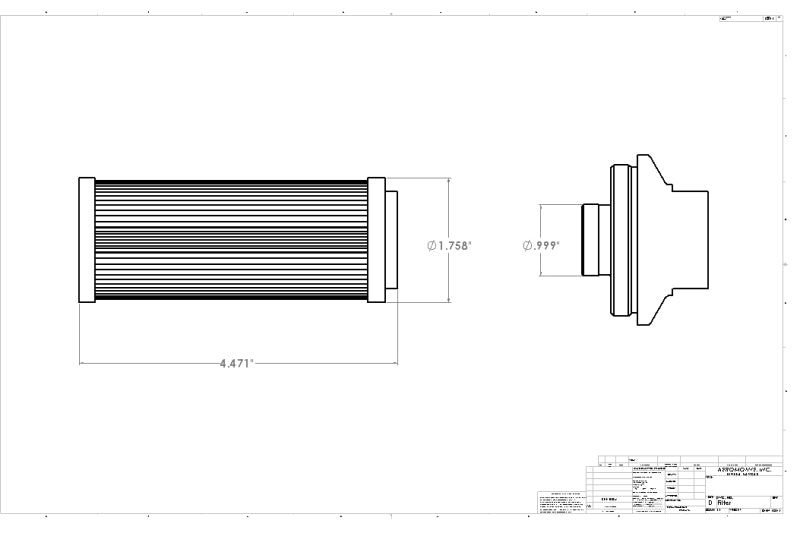

• Replacement filter element available (P/N 12610)
• Filter element and gasket included

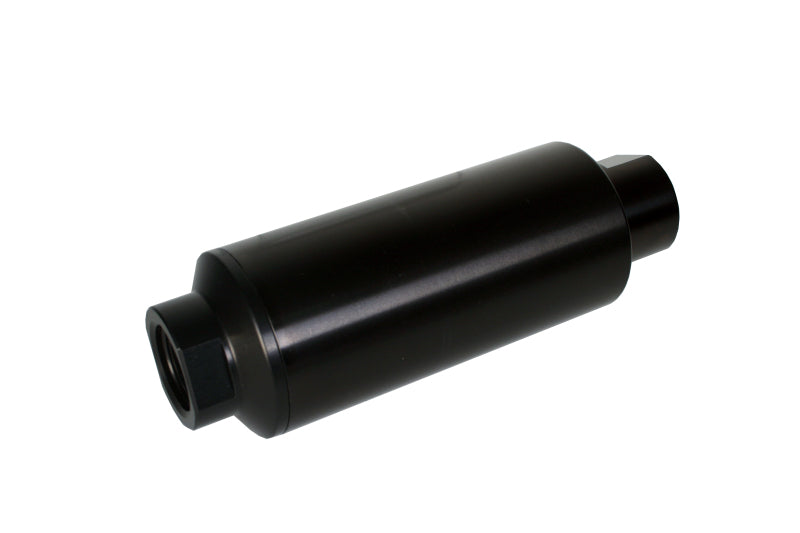

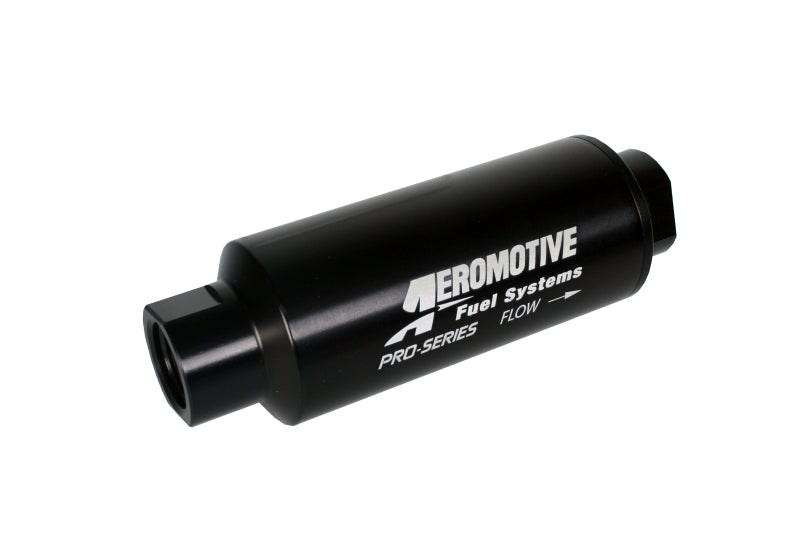

The Aeromotive 12310 Pro-Series Inline Fuel Filter is designed for high-performance fuel systems that require maximum flow and reliable fine filtration. Featuring a replaceable 10-micron fabric (cellulose) filter element, this filter effectively removes contaminants while maintaining excellent fuel flow capacity. The billet aluminum housing features a durable hard-coat black anodized finish and uses AN-12 ORB ports for high-capacity fuel system plumbing. Capable of flowing up to 2,000 lb/hr with less than 0.5 PSI pressure drop, this filter is ideal for performance EFI and carbureted fuel systems running gasoline or diesel fuel. The large 7-inch by 2.5-inch housing provides durability and high filtration capacity for demanding performance applications.
