Aeromotive Pro-Series 10 Micron Fuel Filter AN-12 ORB Ports - 12339

Key Features & Specs:

• Pro-Series high-flow inline fuel filter
• Replaceable 10-micron microglass filter element
• AN-12 ORB inlet and outlet ports
• Compatible with gasoline, E85, alcohol, and racing fuels
• High flow capacity: 2,000 lb/hr
• Less than 0.5 PSI pressure drop at rated flow
• Durable billet aluminum housing construction
• Hard-coat black anodized finish
• Female AN-12 inlet and outlet threads
• External mounting design

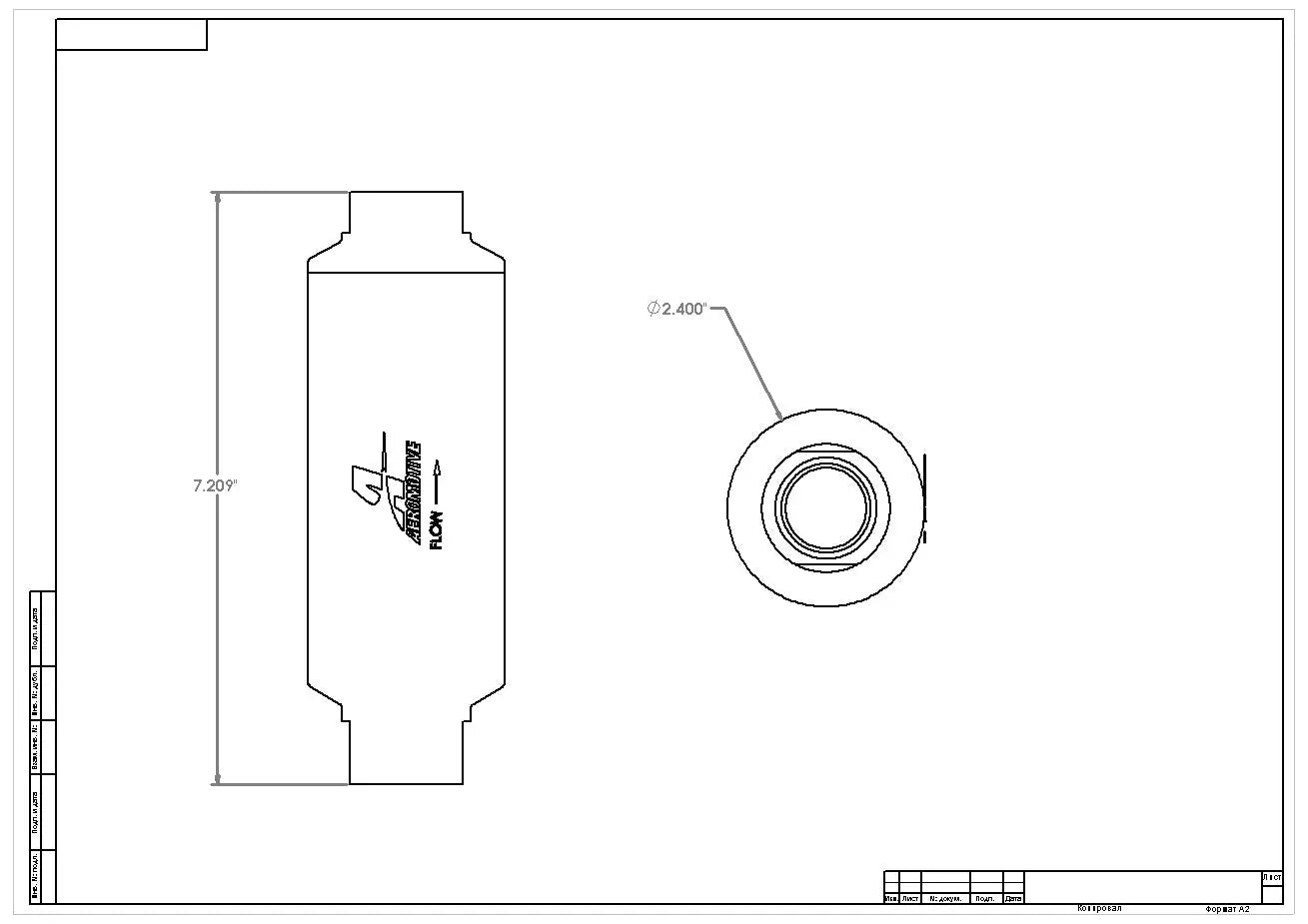

• Filter housing dimensions: 7" length x 2.5" diameter
• Maximum fuel pressure: 70 PSI
• Replaceable filter element included
• Gasket/seal included

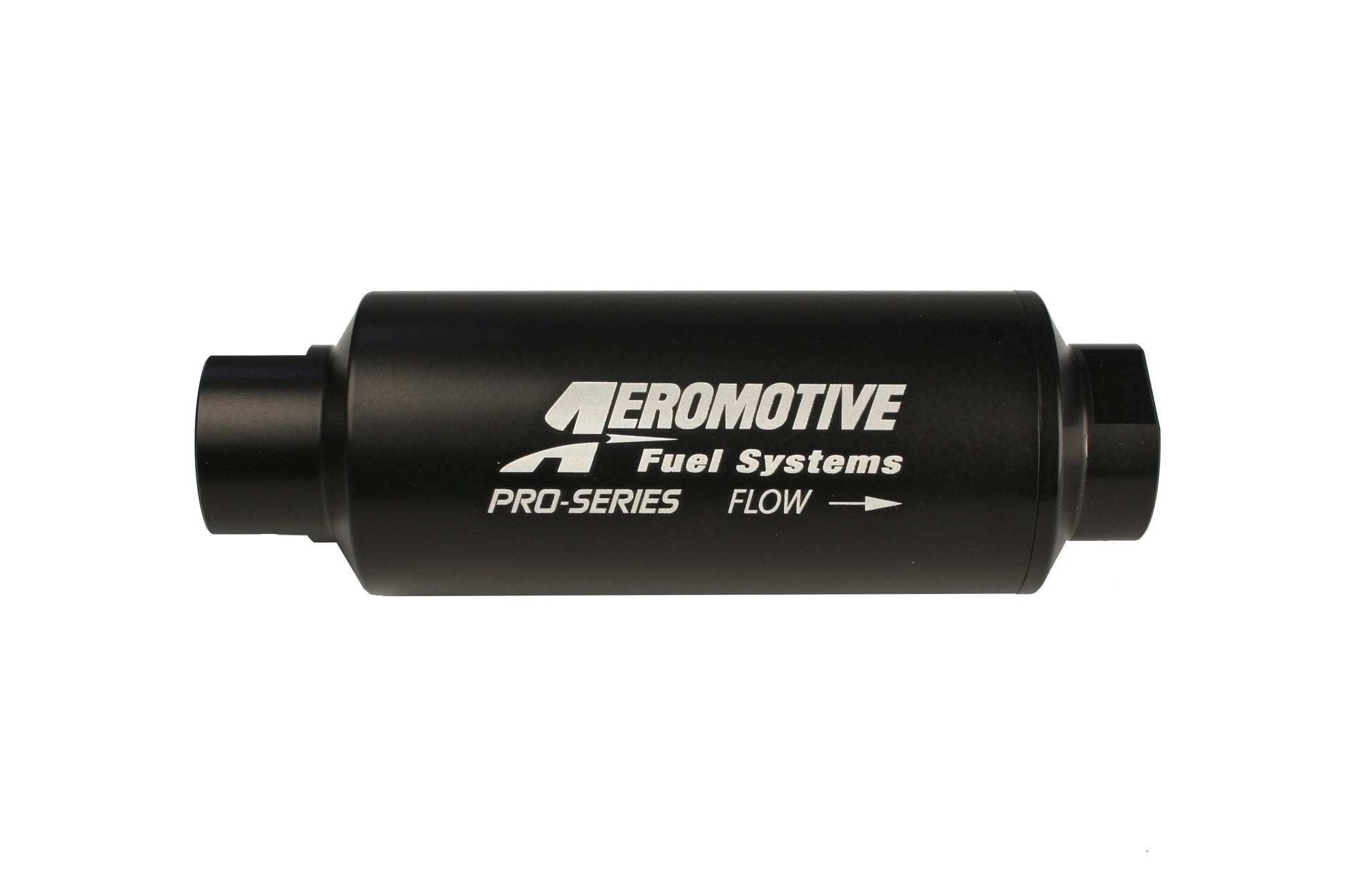

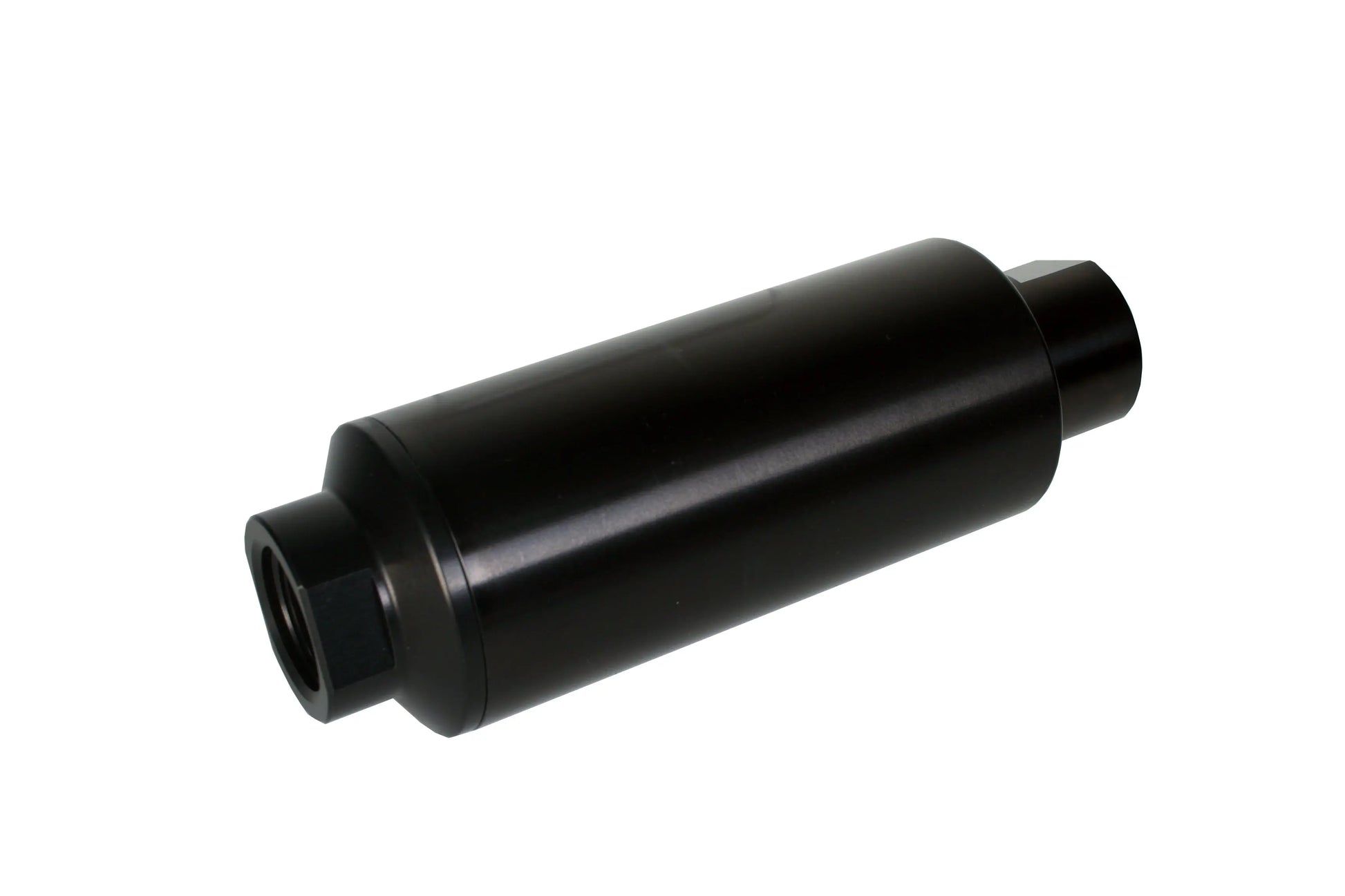

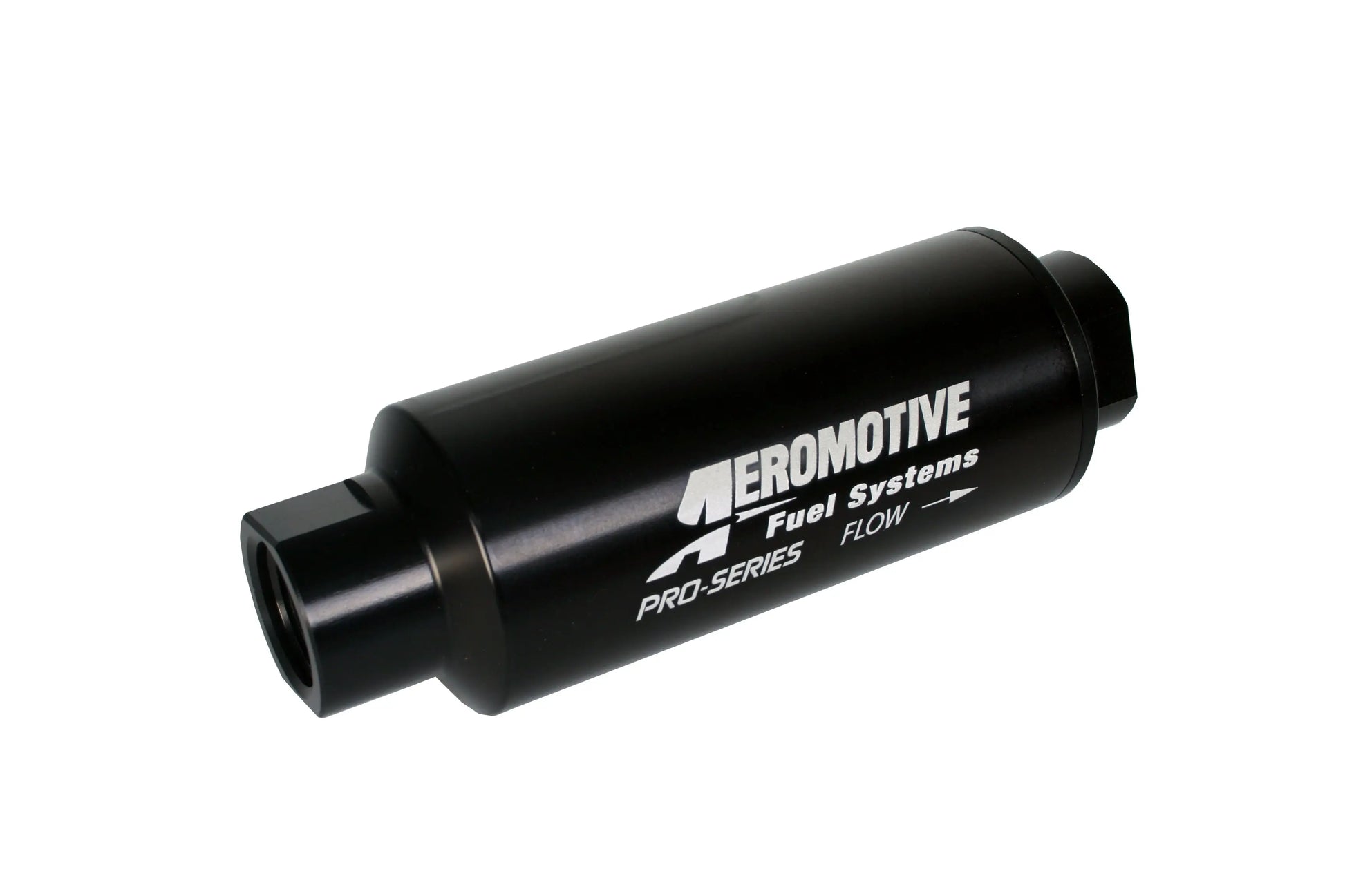

The Aeromotive 12339 Pro-Series Inline Fuel Filter is engineered for high-performance fuel systems requiring maximum flow and superior filtration. Featuring a replaceable 10-micron microglass filter element, this filter effectively captures fine contaminants while maintaining exceptional fuel flow capacity. The billet aluminum housing is finished with a durable hard-coat black anodized finish and designed with AN-12 ORB ports for high-capacity fuel delivery systems. Capable of flowing up to 2,000 lb/hr with less than 0.5 PSI pressure drop, this filter is ideal for high-horsepower EFI and racing applications. Compatible with gasoline, E85, alcohol, and other performance fuels, the filter’s 7-inch long by 2.5-inch diameter housing provides durability and reliable filtration in demanding fuel system environments.
