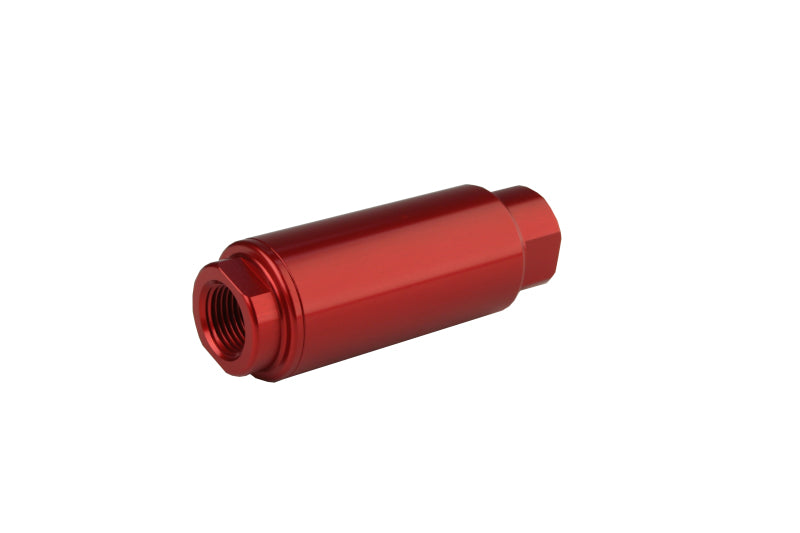

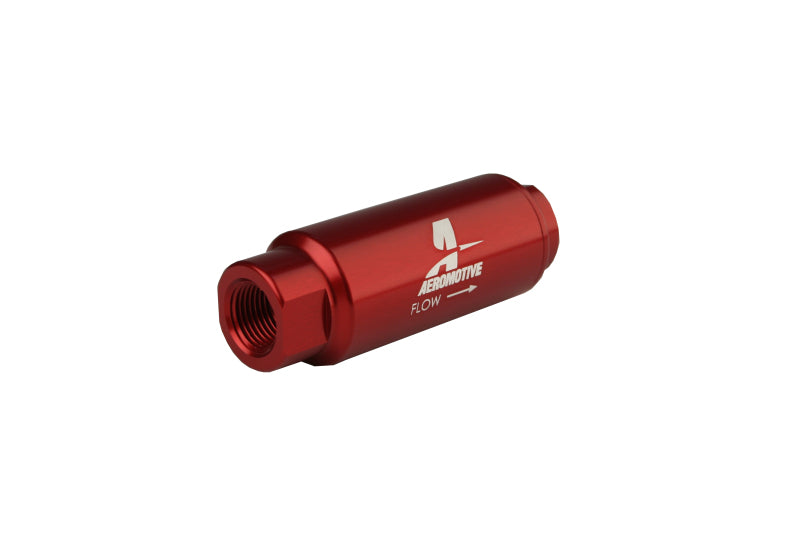

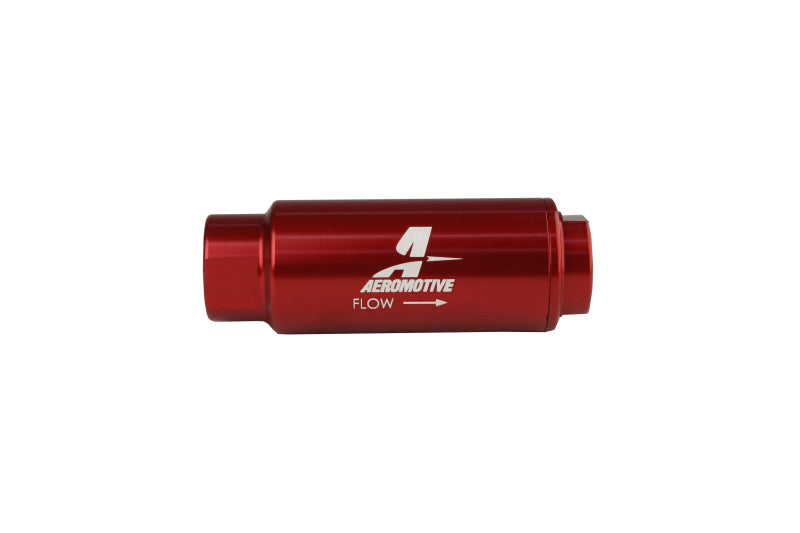

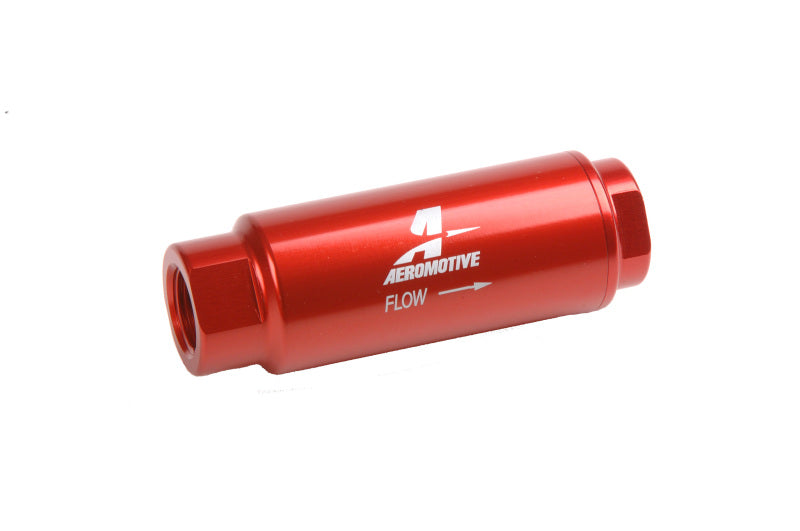

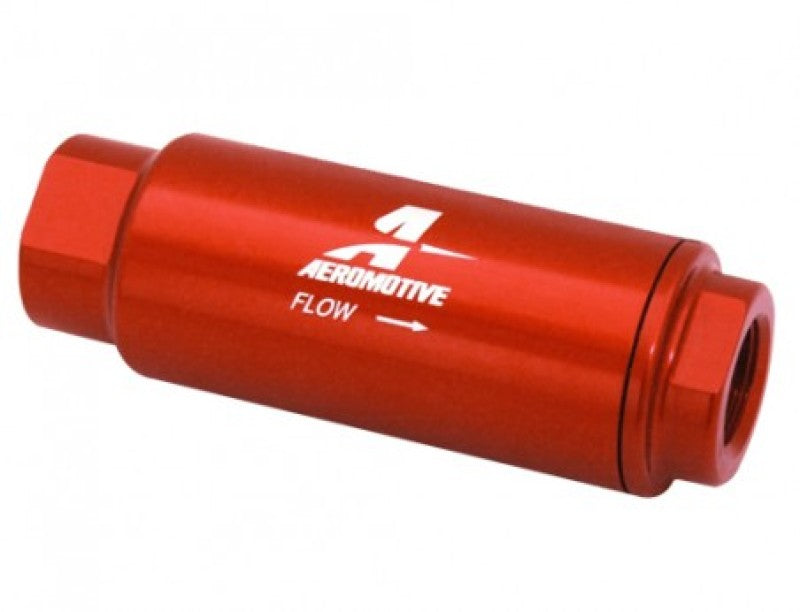

Aeromotive 40 Micron Inline Fuel Filter 3/8 NPT Red SS Series - 12303

Key Features & Specs:

• SS Series inline fuel filter
• Replaceable 40-micron fabric filter element
• Dual 3/8-inch NPT female ports
• Compatible with gasoline and diesel fuels
• High flow capacity up to 2,000 lb/hr
• Durable billet aluminum housing
• Type II bright dip red anodized finish

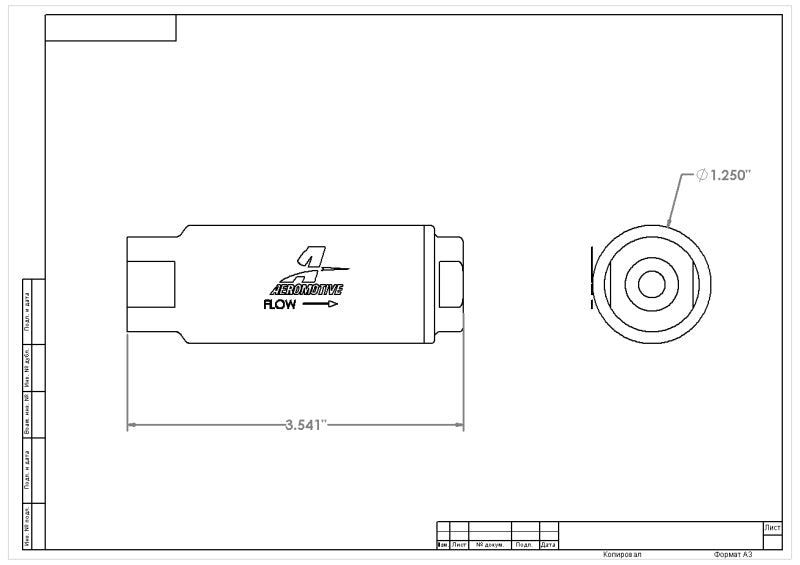

• Compact design: 3.5" length x 1.25" diameter
• External mounting configuration
• Maximum fuel pressure rating: 70 PSI
• Ideal for use with Aeromotive inline EFI fuel pump P/N 11109
• Filter element included
• Replacement seal included

The Aeromotive 12303 SS Series Inline Fuel Filter is a compact, high-flow filtration solution designed for performance fuel systems using gasoline or diesel fuels. Featuring a replaceable 40-micron fabric filter element, this inline filter effectively captures contaminants while maintaining excellent fuel flow. The billet aluminum housing is finished with a durable type II bright dip red anodized coating for corrosion resistance and long service life. Designed with dual 3/8-inch NPT female ports, the filter easily integrates into a wide range of fuel system setups. Its compact 3.5-inch by 1.25-inch housing makes it ideal for tight installations and is commonly used with Aeromotive inline EFI fuel pumps.
