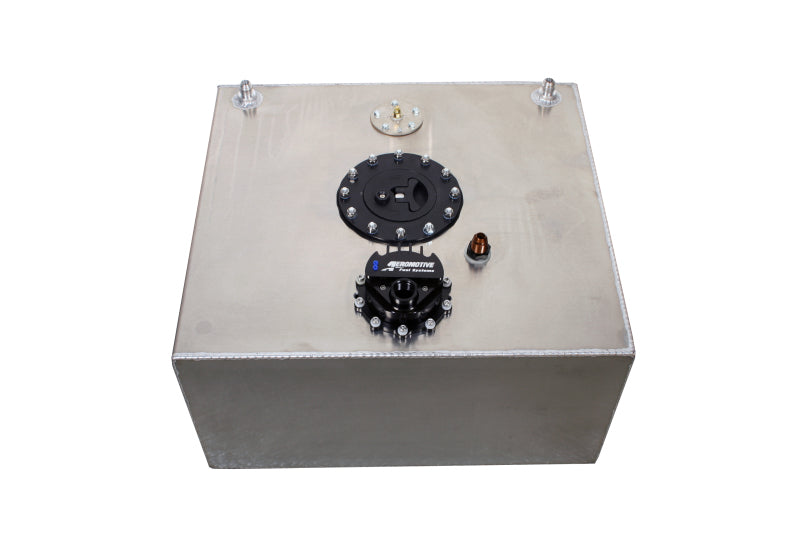

Aeromotive 15 Gal Fuel Cell Brushless Eliminator Variable Speed - 18382

The Aeromotive Variable Speed Controlled Fuel Cell (18382) is a high-performance 15-gallon racing fuel cell equipped with an integrated Brushless Eliminator in-tank fuel pump module and true variable speed controller. Designed for demanding EFI and carbureted racing applications, this fuel cell features a baffled internal design that keeps fuel at the pump inlet during hard acceleration, braking, and cornering. The fluted pickup incorporates an integrated 100-micron prefilter to ensure clean and consistent fuel delivery. Built with motorsports-grade components including an aircraft-style filler cap, ORB-10 outlet, AN-08 baffled return, and roll-over protected AN-08 vent, this system is engineered for durability and reliability. The brushless Eliminator pump reduces current draw at higher EFI pressures, extends service life when running methanol or ethanol fuels, and operates quieter than traditional Eliminator pumps.

Key Features & Specs:

• 15-gallon racing fuel cell with integrated brushless Eliminator pump
• True variable speed fuel pump control
• Baffled fuel cell design keeps fuel at pump inlet
• Fluted pickup with integrated 100-micron prefilter
• Aircraft-style filler cap
• ORB-10 outlet port
• AN-08 baffled return port
• Roll-over protected AN-08 vent
• Reduced current draw at higher EFI pressures
• Extended service life when running methanol and ethanol fuels
• Quieter operation than traditional Eliminator pumps
• External brushless controller for cooler fuel and improved reliability
• Requires 12–16 VDC power supply
• Not compatible with pulse-modulated systems or fuel pump speed controllers
• 16V charging systems require voltage regulator or step-down converter
• Fuel cell dimensions: 20" W x 18" L x 10" H

Fitment:

Universal Application
