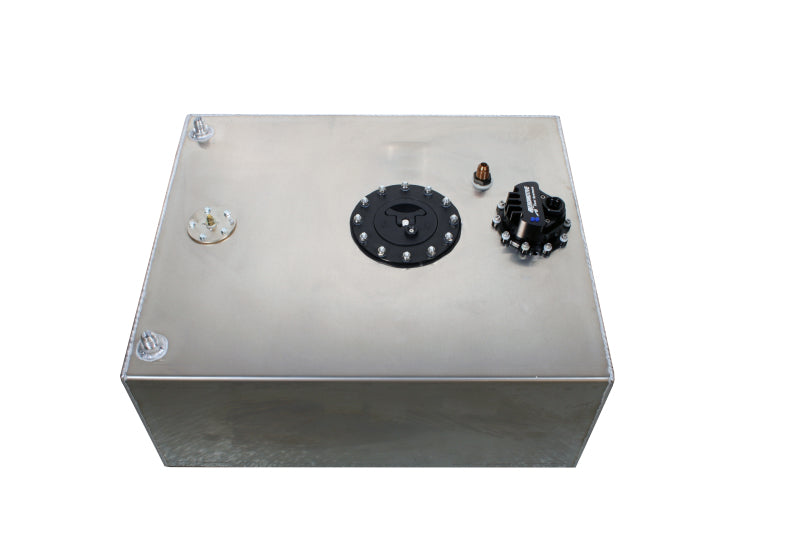

Aeromotive 20 Gal Fuel Cell Brushless A1000 Variable Speed - 18381

The Aeromotive Variable Speed Controlled Fuel Cell (18381) is a high-performance 20-gallon racing fuel cell equipped with an integrated Brushless A1000 in-tank fuel pump module and true variable speed controller. This system features the same fuel cell design used in factory drag racing programs including the Ford Cobra Jet, Chevy COPO Camaro, and Mopar Drag Pak vehicles. The baffled fuel cell design keeps fuel at the pump inlet during aggressive acceleration, braking, and cornering, while a fluted pickup with an integrated 100-micron prefilter ensures clean and consistent fuel delivery. The brushless A1000 pump provides improved efficiency with reduced current draw at higher EFI pressures and extended service life when running methanol or ethanol fuels. An external brushless controller allows for cleaner installation, cooler fuel temperatures, and improved system reliability while operating quieter than traditional A1000 pumps.

Key Features & Specs:

• 20-gallon racing fuel cell with integrated brushless A1000 pump
• True variable speed fuel pump control
• Baffled fuel cell design keeps fuel at pump inlet
• Fluted pickup with integrated 100-micron prefilter
• Racing fuel cell design used in Cobra Jet, COPO Camaro, and Mopar Drag Pak cars
• Aircraft-style filler cap
• ORB-10 outlet port
• AN-08 baffled return port
• Roll-over protected AN-08 vent
• Reduced current draw at higher EFI pressures
• Extended service life when running methanol and ethanol fuels
• Quieter operation than traditional A1000 pumps
• External brushless controller for improved reliability and cooler fuel
• Requires 12–16 VDC power supply
• Not compatible with pulse-modulated systems or fuel pump speed controllers
• 16V charging systems require voltage regulator or step-down converter
• Fuel cell dimensions: 20" W x 24" L x 10" H

Fitment:

Universal Application
