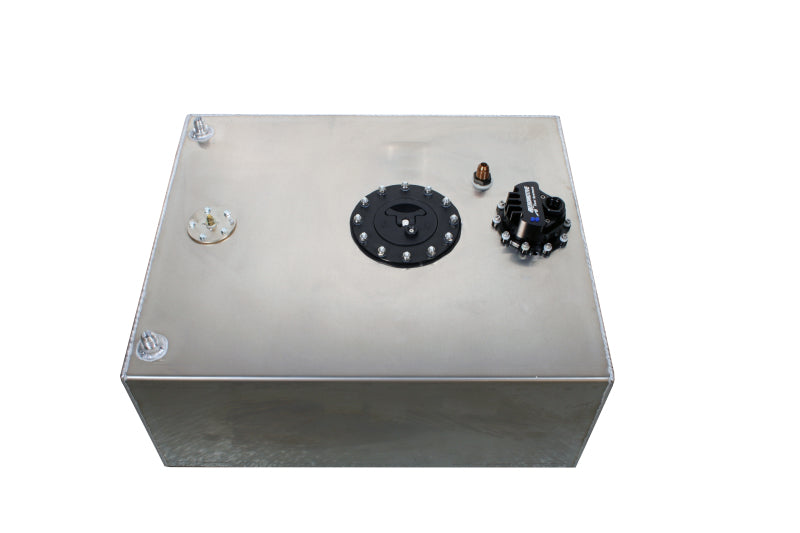

Aeromotive 20 Gal Fuel Cell Brushless Eliminator Variable Speed - 18383

The Aeromotive Variable Speed Controlled Fuel Cell (18383) is a high-capacity 20-gallon racing fuel cell featuring an integrated Brushless Eliminator in-tank fuel pump module with true variable speed control. Designed for high-performance EFI and carbureted fuel systems, the baffled fuel cell design keeps fuel at the pump inlet during hard acceleration, braking, and cornering. A fluted pickup with an integrated 100-micron prefilter helps ensure consistent, debris-free fuel delivery. The brushless Eliminator pump provides exceptional fuel flow while reducing current draw at higher EFI pressures and extending service life when running methanol or ethanol fuels. An external brushless controller enables clean installation, cooler fuel operation, and improved reliability, while operating quieter than traditional Eliminator pumps.

Key Features & Specs:

• 20-gallon racing fuel cell with integrated brushless Eliminator pump
• True variable speed fuel pump control
• EFI rated flow: 1,000 lbs/hr @ 45 PSI, 13.5V
• Carb rated flow: 1,300 lbs/hr @ 9 PSI, 13.5V
• Baffled fuel cell design keeps fuel at pump inlet
• Fluted pickup with integrated 100-micron prefilter
• Reduced current draw at higher EFI pressures
• Extended service life when running methanol and ethanol fuels
• Quieter operation than traditional Eliminator pumps
• External brushless controller for cooler fuel and enhanced reliability
• ORB-10 outlet port
• Requires 12–16 VDC power supply
• Not compatible with pulse-modulated systems or fuel pump speed controllers
• 16V charging systems require voltage regulator or step-down converter
• Fuel cell dimensions: 20" W x 24" L x 10" H

Fitment:

Universal Application
