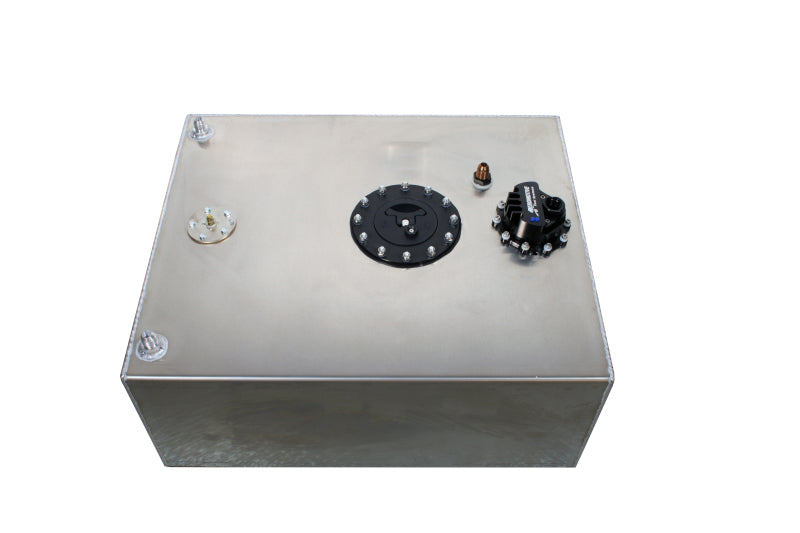

Aeromotive Variable Speed 20 Gal Fuel Cell Brushless Spur Gear 3.5 - 18391

The Aeromotive Variable Speed Controlled Fuel Cell (18391) is a high-performance 20-gallon fuel cell featuring an integrated brushless Spur Gear 3.5 in-tank fuel pump module with true variable speed operation. Designed for demanding racing and high-horsepower EFI applications, the system utilizes a new integral spur-gear pumping mechanism that delivers exceptional fuel flow with reduced current draw at higher pressures. The pump provides extended service life when running methanol and ethanol fuels while maintaining excellent efficiency and reliability. An integrated pre-pump fuel filter and external brushless controller allow for cleaner installation, cooler fuel temperatures, and improved system durability. Capable of sustaining 90 PSI continuous operating pressure and up to 150 PSI peak pressure, this fuel cell provides dependable fuel delivery for high-performance builds.

Key Features & Specs:

• 20-gallon racing fuel cell with integrated fuel pump module
• Brushless Spur Gear 3.5 in-tank fuel pump
• True variable speed pump control
• New integral spur-gear pumping mechanism
• EFI rated flow: 1,250 lbs/hr @ 40 PSI, 13.5V
• Carb rated flow: 1,350 lbs/hr @ 9 PSI, 13.5V
• 90 PSI continuous operating pressure
• Up to 150 PSI peak pressure (base plus boost)
• Reduced current draw at higher EFI pressures
• Extended service life when running methanol and ethanol fuels
• Integrated pre-pump fuel filter
• External brushless controller for cooler fuel and improved reliability
• ORB-10 outlet port
• Requires 12–16 VDC power supply
• 16V charging systems require voltage regulator or step-down converter
• Fuel cell dimensions: 20" W x 24" L x 10" H

Fitment:

Universal Application
