Aeromotive 6 Gal Fuel Cell Brushless A1000 Variable Speed - 18386

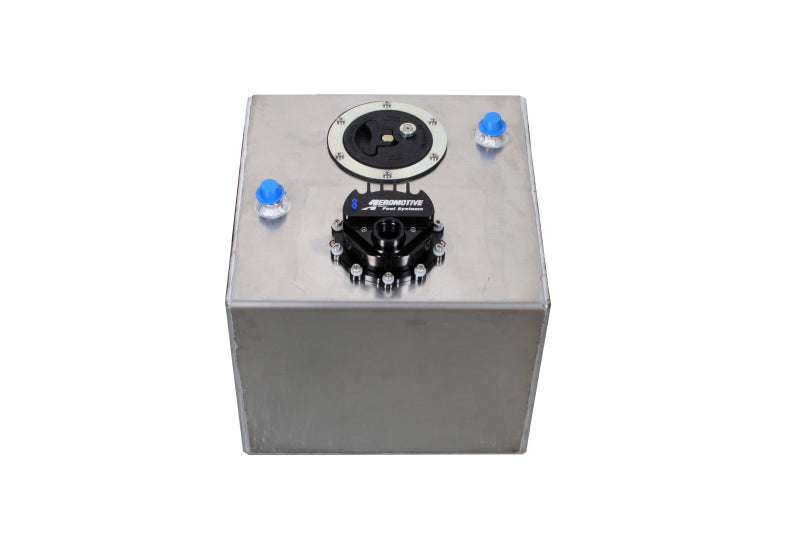

The Aeromotive Variable Speed Controlled Fuel Cell (18386) is a compact 6-gallon racing fuel cell featuring an integrated Brushless A1000 in-tank fuel pump module with true variable speed control. Designed for high-performance EFI and carbureted fuel systems, this fuel cell incorporates a baffled design to keep fuel at the pump inlet during aggressive acceleration, braking, and cornering. The fluted pickup with an integrated 100-micron prefilter helps ensure clean and consistent fuel delivery. The brushless pump design reduces current draw at higher EFI pressures while extending service life when running methanol or ethanol fuels. An external brushless controller allows for cleaner installation, cooler fuel operation, and improved system reliability while operating quieter than traditional A1000 pumps.

Key Features & Specs:

• 6-gallon racing fuel cell with integrated brushless A1000 pump
• True variable speed fuel pump control
• EFI rated flow: 700 lbs/hr @ 45 PSI, 13.5V
• Carb rated flow: 900 lbs/hr @ 9 PSI, 13.5V
• Baffled fuel cell design keeps fuel at pump inlet
• Fluted pickup with integrated 100-micron prefilter
• Reduced current draw at higher EFI pressures
• Extended service life when running methanol and ethanol fuels
• Quieter operation than traditional A1000 pumps
• External brushless controller for cooler fuel and improved reliability
• ORB-10 outlet port
• Requires 12–16 VDC power supply
• Not compatible with pulse-modulated systems or fuel pump speed controllers
• 16V charging systems require voltage regulator or step-down converter
• Fuel cell dimensions: 12" W x 12" L x 10" H

Fitment:

Universal Application
