Aeromotive 6 Gal Fuel Cell Brushless Eliminator Variable Speed - 18387

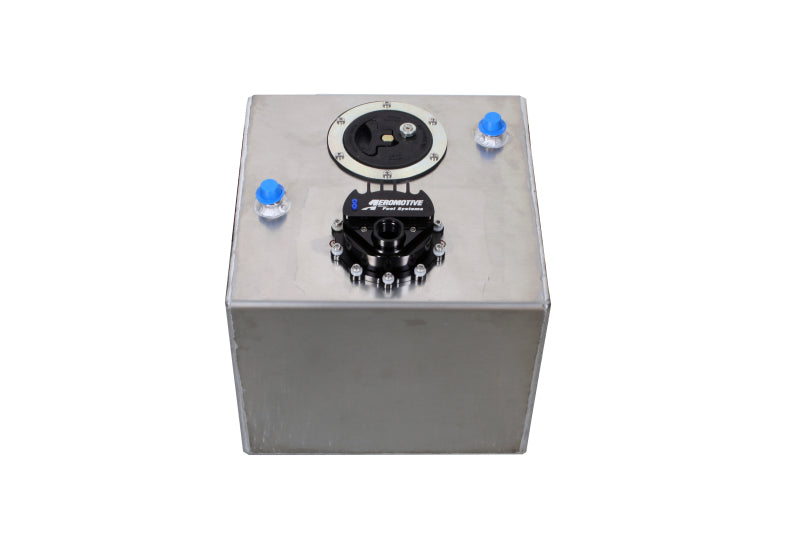

The Aeromotive Variable Speed Controlled Fuel Cell (18387) is a high-performance 6-gallon racing fuel cell featuring an integrated Brushless Eliminator in-tank fuel pump module with true variable speed control. Designed for serious racing and high-horsepower EFI or carbureted applications, this system delivers exceptional fuel flow while reducing current draw at higher pressures. The baffled fuel cell design helps keep fuel at the pump inlet during hard acceleration, braking, and cornering, while the fluted pickup with an integrated 100-micron prefilter ensures clean and consistent fuel delivery. An external brushless controller allows for a clean installation, cooler fuel operation, and enhanced system reliability. Built with racing-grade components including an aircraft-style filler cap, ORB-10 outlet, AN-08 baffled return, and roll-over protected AN-08 vent, this fuel cell is engineered for demanding motorsports applications.

Key Features & Specs:

• 6-gallon racing fuel cell with integrated brushless Eliminator pump
• True variable speed fuel pump control
• EFI rated flow: 1,000 lbs/hr @ 45 PSI, 13.5V
• Carb rated flow: 1,300 lbs/hr @ 9 PSI, 13.5V
• Baffled fuel cell design keeps fuel at pump inlet
• Fluted pickup with integrated 100-micron prefilter
• Aircraft-style filler cap
• ORB-10 outlet port
• AN-08 baffled return port
• Roll-over protected AN-08 vent
• Reduced current draw at higher EFI pressures
• Extended service life when running methanol and ethanol fuels
• Quieter operation than traditional Eliminator pumps
• External brushless controller for improved reliability and cooler fuel
• Requires 12–16 VDC power supply
• Not compatible with pulse-modulated systems or fuel pump speed controllers
• 16V charging systems require voltage regulator or step-down converter
• Fuel cell dimensions: 12" W x 12" L x 10" H

Fitment:

Universal Application
