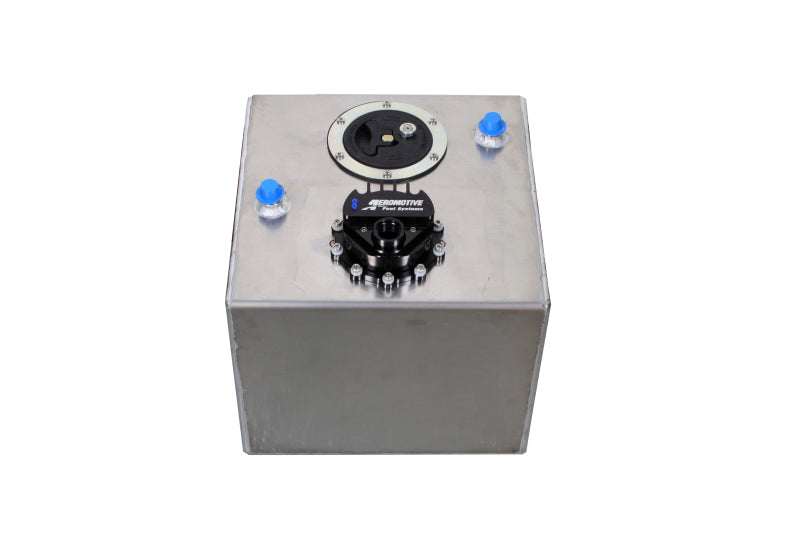

Aeromotive Variable Speed Controlled 6 Gal Fuel Cell Brushless 3.5 GPM - 18396

The Aeromotive Variable Speed Controlled Fuel Cell (18396) is a high-performance 6-gallon fuel cell featuring an integrated brushless 3.5 GPM in-tank fuel pump module with true variable speed operation. Designed for serious racing and high-performance applications, this system utilizes a new spur-gear pumping mechanism that provides improved efficiency, reduced current draw at higher EFI pressures, and extended service life when running methanol or ethanol fuels. The system includes a pre-pump fuel filter and an external brushless controller for a cleaner installation, cooler fuel temperatures, and enhanced reliability. Capable of sustaining 90 PSI continuous operating pressure and up to 150 PSI peak pressure, this compact fuel cell delivers reliable fuel supply for demanding performance builds.

Key Features & Specs:

• 6-gallon performance fuel cell with integrated fuel pump module
• Brushless 3.5 GPM in-tank fuel pump
• True variable speed fuel pump operation
• New integral spur-gear pumping mechanism
• Reduced current draw at higher EFI pressures
• Extended service life with methanol and ethanol fuels
• 90 PSI continuous operating pressure
• Up to 150 PSI peak pressure (base plus boost)
• Integrated pre-pump fuel filter
• External brushless controller for improved reliability and cooler fuel
• ORB-10 outlet port
• Requires 12–16 VDC power supply
• Not compatible with pulse-modulated systems or pump speed controllers
• Fuel cell dimensions: 12" W x 12" L x 10" H

Fitment:

Universal Application
