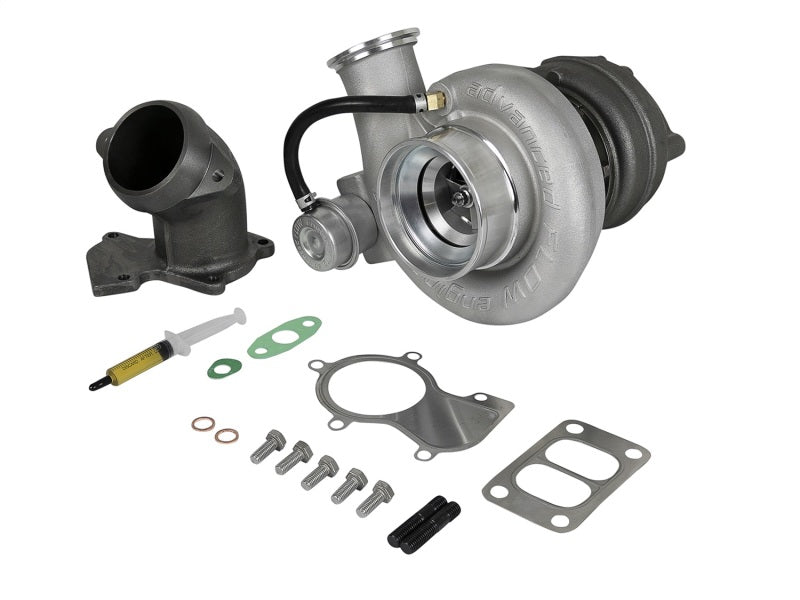

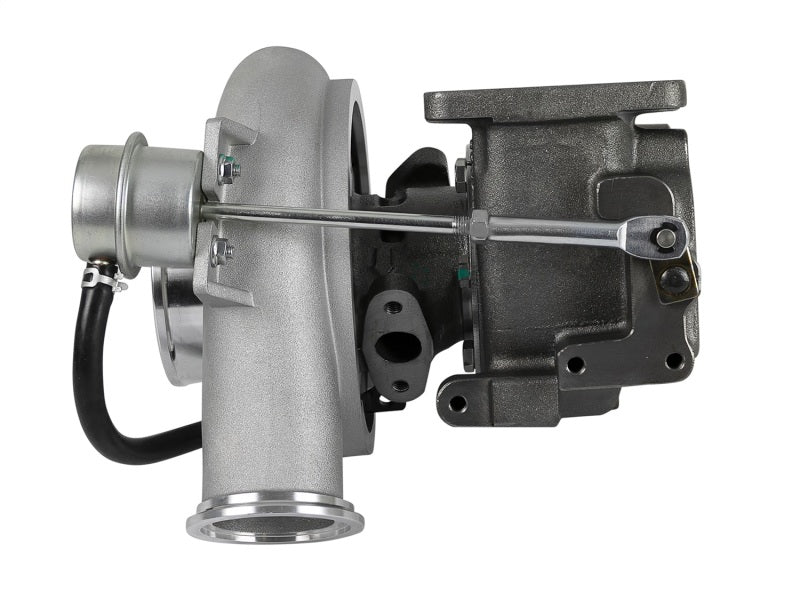

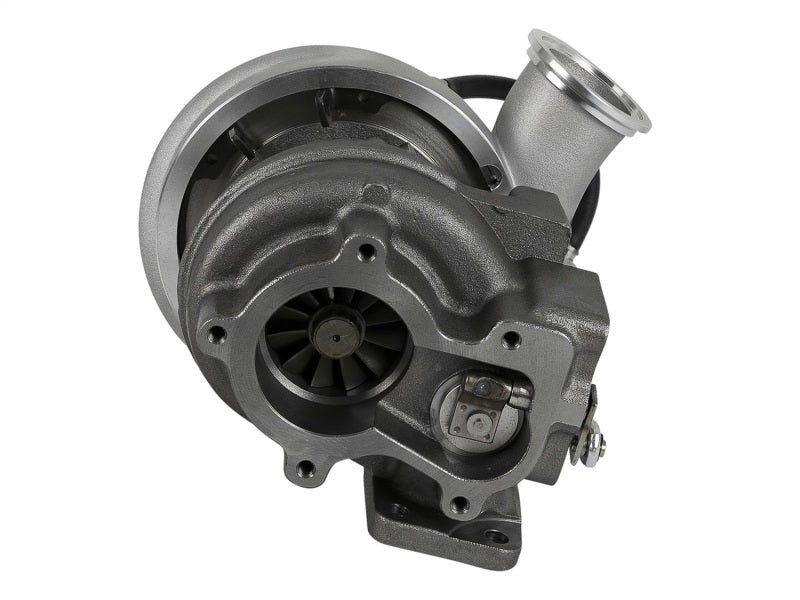

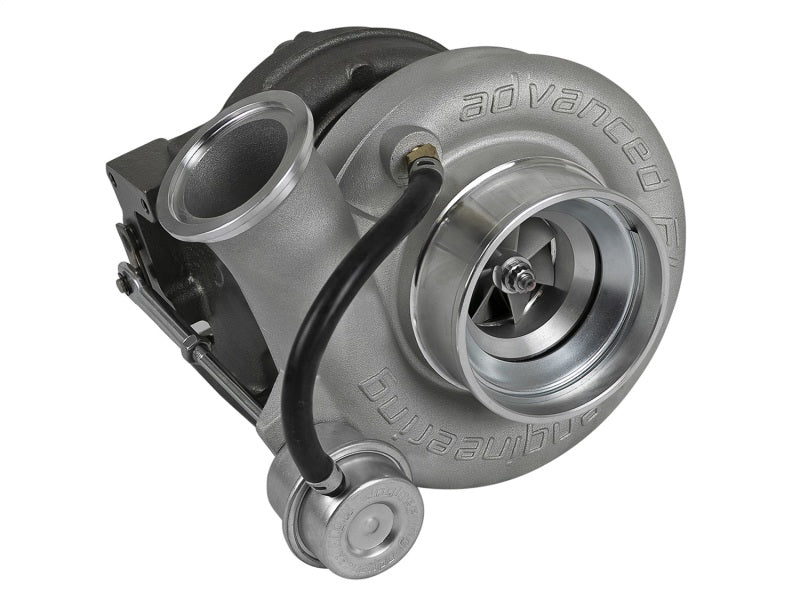

aFe BladeRunner Street Series Turbocharger for 1998-2002 Dodge Ram 2500/3500 5.9L - 46-60060

This device is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.

• Stock Replacement with no core charge
• A direct bolt-on replacement; all connections to the vehicle are compatible with the OE geometry
• Additional fueling is not required
• Wastegate actuator is included, comes preset to factory specifications

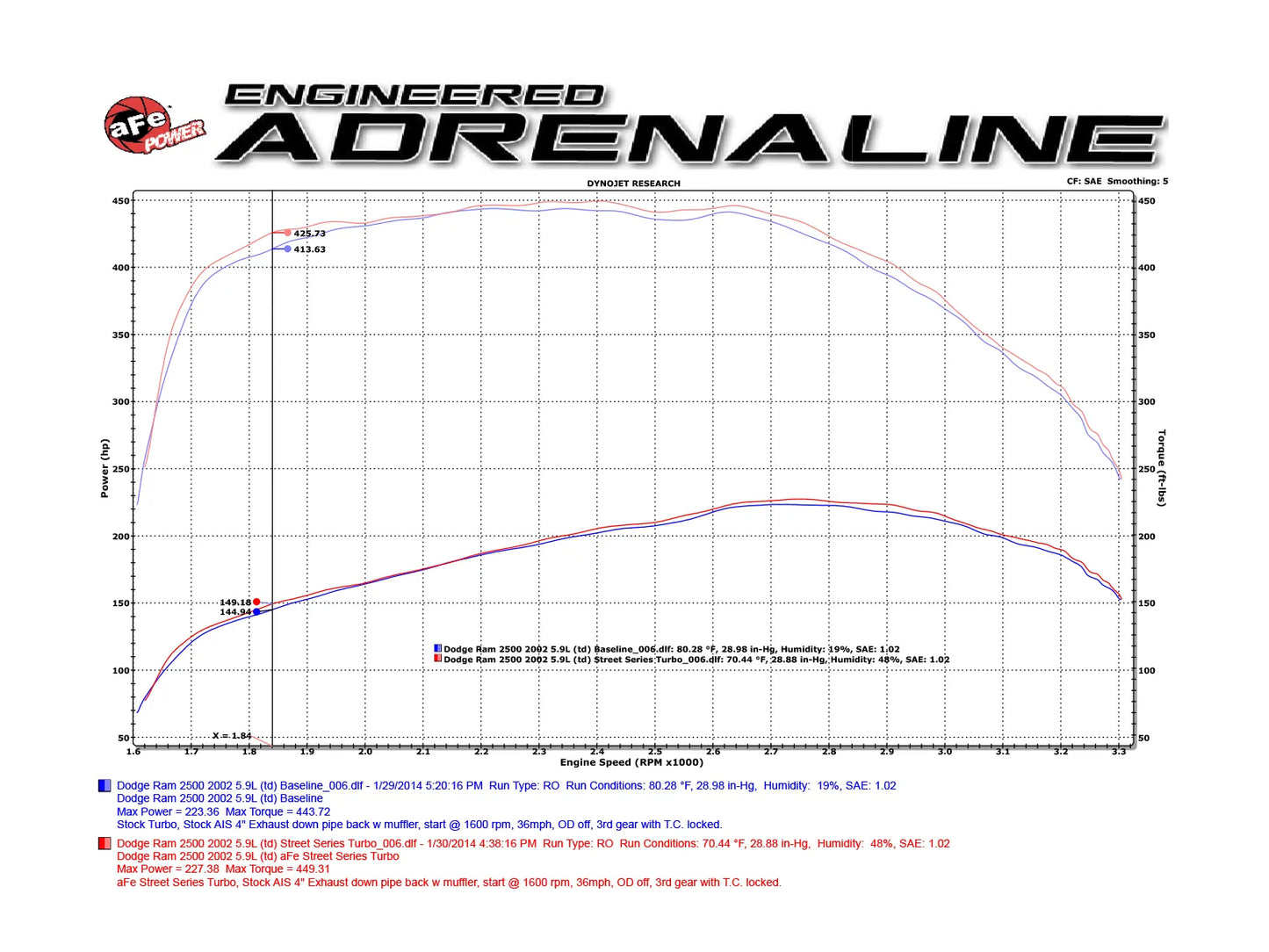

• In house testing produced a max gain of +4 horsepower and +12 lbs. x ft. of torque, verified by our in house dyno
• 2-Year Warranty

Specifications:
Compressor Inducer - 54 mm
Compressor Exducer - 76 mm / Trim: 50
Turbine Inducer - 65 mm
Turbine Exducer - 58 / Trim: 80 mm
Turbine Housing: 12 cm2

Direct Replacement:

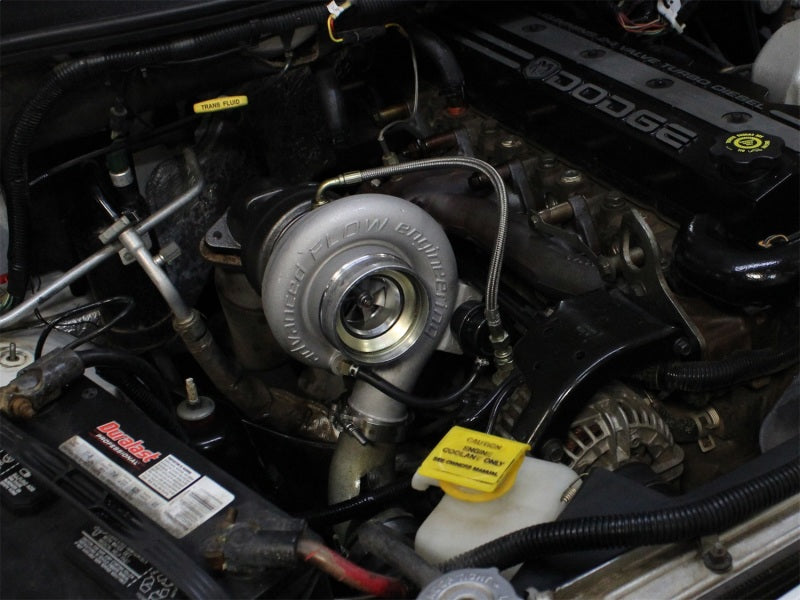

This turbo can be installed on 1998.5-2002 model years as a direct, bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection.

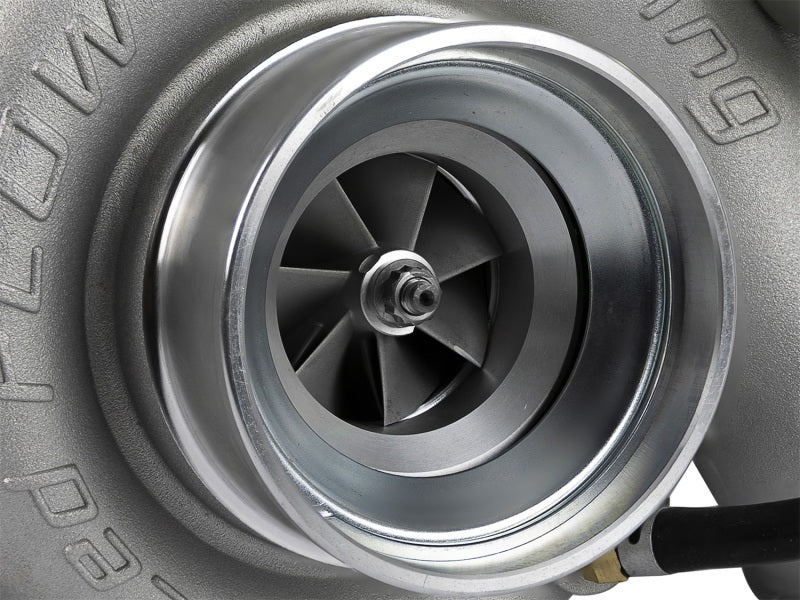

Compressor:
The housing utilizes OE inlet and outlet. A wastegate actuator is mounted to the integrated cast bracket and comes preset to factory setting

Note: This device is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
