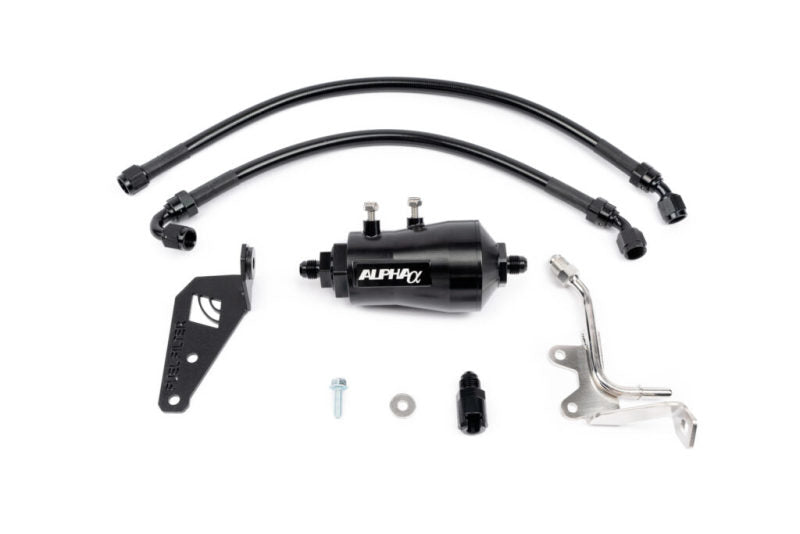

• CNC MACHINED FILTER HOUSING FEATURES BUILT IN MOUNTING SOLUTION TO SECURE THE UNIT AND LINES FROM DANGEROUS MOVEMENT

• HIGHEST FILTERING EFFECTIVENESS ON THE MARKET WITH 6 MICRON FILTER

• GLASS FILTER ELEMENT MATERIAL FOR 100% ETHANOL COMPATIBILITY

• ALLOWS USERS TO INSTALL ON THEIR FACTORY STOCK FUEL LINES

• FULLY INTEGRATES WITH THE AMS FLEX FUEL KIT FOR A SEAMLESS SOLUTION (AVAILABLE SEPARATELY)

• USES MOTORSPORT-GRADE AN FITTINGS AND ALUMINUM QUICK CONNECT FITTINGS FOR EASY INSTALL AND LEAK-FREE OPERATION

• UTILIZES ALL RACE GRADE BLACK NYLON COATED E85 COMPATIBLE -6AN BRAIDED HOSE

• BOLT-IN INSTALL WITH NO PERMANENT MODIFICATION TO VEHICLE REQUIRED

ENGINEERED TO BE THE BEST

AMS Performance is an engineering company first. We have built our 20+ year reputation as a leading motorsports aftermarket component manufacturer by creating the highest performing parts through a focused engineering approach to design. This design method allows us to include features not found in any other kits on the market, including motorsports quality braided fuel lines, and quick connect AN fittings. Where others use plastic fittings, low grade rubber fuel hose, and leak prone clamps, the AMS Snailworks Engineering Team have put together a system that uses the highest quality materials for years of trouble free operation.

We designed this custom filter housing for use specifically on the Nissan Z with VR30 engine so that it can be bolted directly to the vehicle’s chassis in OEM bolt locations. Other kits on the market or universal DIY options use an unsecured generic housing, but our design allows us to integrate a mounting solution so you can securely mount the filter unit.  This is a safety feature as much as it is an aesthetic one, as it is done to prevent any possibility of damage to the lines from continuously rubbing on other components, as well as to prevent fittings from possibly loosening over time, causing a dangerous fuel leak.

Inside the filter housing is where the real engineered features are located. The shape of the housing has been designed to promote unimpeded fuel flow through it by reducing or expanding the size of the ports inside the housing. As fuel flows from right to left, we reduce the internal volume to send fuel inward, towards the filter.  As shown in the cross section photo graphic below, the inlet and outlets are both radiused at the ends and tapered at a certain angle for optimal fuel throughput. To put it simply, we invested a lot of engineering muscle into this kit, to make it the best possible unit on the market.

NO COMPROMISES FUEL FILTRATION

The most important part of any fuel filter kit is the filter element itself. Without a quality filter element, designed specifically for the fuel type you will be using, a fuel filter kit would be useless. This is why we chose to use a 6 micron glass filter, manufactured by a top tier automotive fuel system component manufacturer. This means the AMS Nissan Z Fuel Filter has the ability to filter particulate down to 6 microns in size from your fuel, for the ultimate in engine protection. This is the finest fuel filter element specifically for the VR30 engine on the market, to protect your investment. While this 6 micron glass filter is a more expensive option, it gives you confirmed compatibility with all fuel types, from gasoline to ethanol, and even methanol. Cellulose (paper) filters found in cheaper filter kits have been known to break down when used with ethanol based fuels

PRODUCT NOTES

WARNING: By purchasing this fuel system component you confirm that you have read and understand the following: WARNING/DANGER: SERIOUS RISK OF FIRE, EXPLOSION, BODILY INJURY INCLUDING RESULTING DEATH, AND ENGINE, VEHICLE, AND OTHER PROPERTY DAMAGE. THIS FLEX FUEL KIT MUST BE INSTALLED AND REMOVED ONLY BY A QUALIFIED MOTOR SPORTS TECHNICIAN. THE TECHNICIAN ALSO MUST BE TRAINED IN HOW TO INSTALL AND REMOVE THIS KIT FROM THIS SPECIFIC VEHICLE. THE TECHNICIAN MUST NOT PARTICIPATE IN ANY ACTIVITY THAT WOULD BE CONSIDERED A CATALYST FOR IGNITION WHILE INSTALLING OR REMOVING THIS KIT AND MUST READ THE INSTALLATION INSTRUCTIONS BEFORE INSTALLATION OR REMOVAL.
