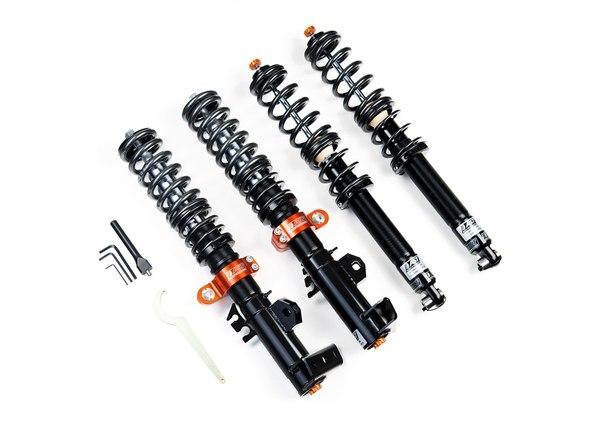

AST Suspension 5100 Series 1-Way Coilovers ACS-M7001S - 1989-2018 Mercedes-Benz G-Class Stock Height (W461-W463)

The 5100 Series shock absorbers for the 1989-2018 Mercedes-Benz G-Class Stock Height (W461-W463) utilize inverted / upside down technology. The inverted design is race proven technology and produces an extremely strong damper, providing better suspension geometry under heavy lateral and braking loads as seen in a road and track environment.

The 5100 Series shock absorbers give your car a better performance than the standard twin tube design. With the 5100 Series suspension you can adjust rebound with one knob. The adjust platform allows you to adjust the ride height of your car. AST suspension shock bodies are specially designed to keep maximum stroke, even with a lower ride height.

HOW A MONOTUBE DESIGN WORKS?

Monotube design is essential for performance. The oil and nitrogen are separated by a floating piston, and allows the use of a larger piston, increasing the damper performance and sensitivity felt by the driver, all this added together produces more grip, gives more control and driver feedback from your vehicle.

WHAT IS A REBOUND ADJUSTMENT?

Rebound controls the rate of extension of your shock absorber. By changing the rebound you can directly change the characteristics of the vehicle.

FEATURES

• Floating piston design with high pressure nitrogen means no cavitation around the piston.
• 14mm diameter internal shaft.
• 44.5 mm diameter shaft struts, inverted.
• Steel cylinder body shocks, inverted.
• High end, track ready suspension.
• Rebound adjustable ('Singles').
• Low friction seal.
• Adjuster knobs permanently mounted on the dampers.
• Designed to use OEM top mounts.
• Rubber bushings for 'eye' shock mounts.
• Includes springs.
• Rebuildable.
• Optional spherical top mounts.
• Optional DLC (diamond like carbon) coated shafts.
• Optional DDP (double digressive piston).
• Double Digressive Pistons are recommended for use on the non-driven wheels.
• 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
• RWD vehicles: DD pistons for both front axle struts/shocks.
• Optional custom valving.

PRODUCT SPECIFICATIONS

• Part Number: ACS-M7001S
• Product: AST Suspension 5100 Series 1-Way Coilovers
• Adjustment: 1-Way
• System: Front Coilover, Divorced Rear Coilover
• Product Note:
• Front/Rear Ratio: Front = 50% / Rear = 50%
• Strut/Shock Type:
• Model Years: 1989-2018
• Make: Mercedes-Benz
• Model: G-Class
• Chassis: W461-W463
• Spring Kit: Included
• Top Mounts: Front And Rear Are Not Included
• Comments:

VEHICLE FITMENT

• 1989-2018 Mercedes-Benz G-Class Stock Height (W461-W463)
