ATI Serpentine Damper Chevrolet Camaro | SSR |Trailblazer 2003-2015 ATI918629

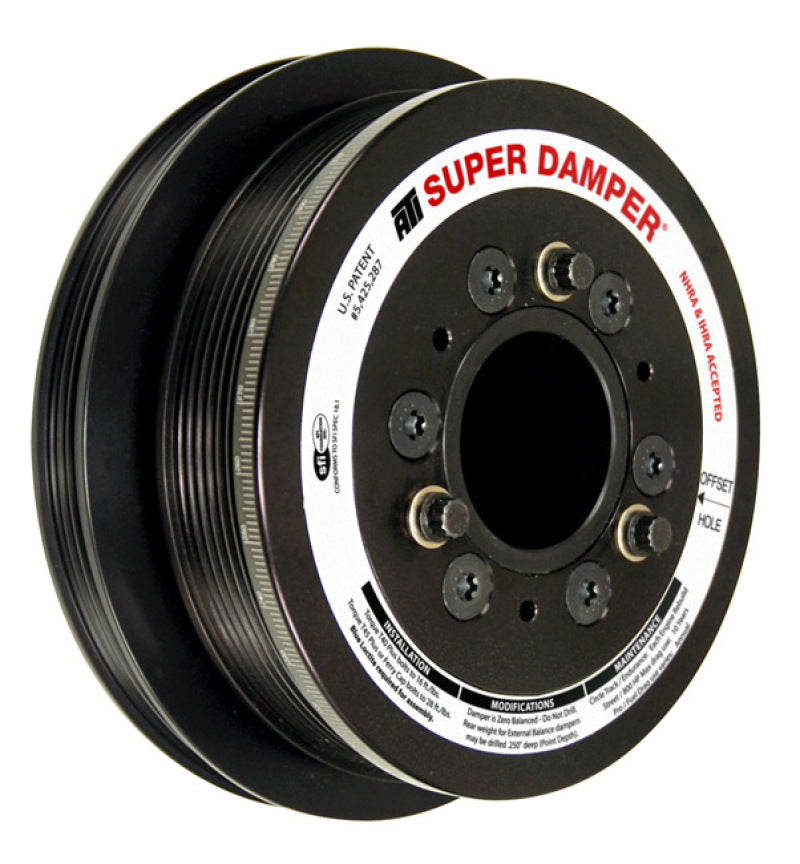

The patented ATI Super Damper is the only crankshaft damper designed exclusively for high performance Chevrolet engines.

Inner and outer shells are available in aluminum or steel, and contain a steel inertia weight. This inertia weight has six (2-ring design) or eight (3-ring design) computer machined grooves to retain the proper durometer O-rings (dyno tested for each application).

Specifications:

• OUTER DIAMETER: 6.78" (10% UD)
• WEIGHT: 4.5lbs
• SHELL MATERIAL: Aluminum
• SHELL ASSEMBLY #: 917071
• GROOVES: 6 / 4
• REAR PULLEY #: 916734B
• HUB #: 916430M
• HUB MATERIAL: Steel

• Eliminates torsional crankshaft vibrations
• Exceeds SFI 18.1 specs
• Black zinc chromate finished
• OEM equipment on ZZ572 GM Crate Engines
• Tunable, rebuildable, and extremely efficient at ALL RPM
• Laser engraved 360° timing marks

• Chevrolet Camaro LS3 2010-2015
• GEN 3 Vortec Trucks with either 4.8L, 5.3L, or 6.0L engines:
  • Chevrolet SSR LS1/LS2 2003-2006
  • Chevrolet Trainblazers SS LS2 2006-2009
    6-RIB w/4-RIB A/C PULLEY
