BD Diesel 1064234BM TorqueMaster 48RE Transmission & Converter Package – 2005–2007 Dodge 4WD 5.9L Cummins (w/ Billet Input Shaft)

Upgrade your Dodge 48RE drivetrain with the BD Diesel 1064234BM TorqueMaster Transmission and Converter Package. Built for the 2005–2007 Dodge Ram 2500 and 3500 4WD trucks with the 5.9L Cummins, this high-performance combo includes a billet input shaft-equipped transmission and a triple-disc torque converter—both dyno-tested together for optimal reliability and torque delivery. Engineered to handle the demands of towing, aggressive throttle, and daily driving, this package enhances power transfer, eliminates weak points, and increases long-term durability.

Includes BD’s heavy-duty transmission pan and full-flow auxiliary filter kit. A refundable $2,500 core charge applies.

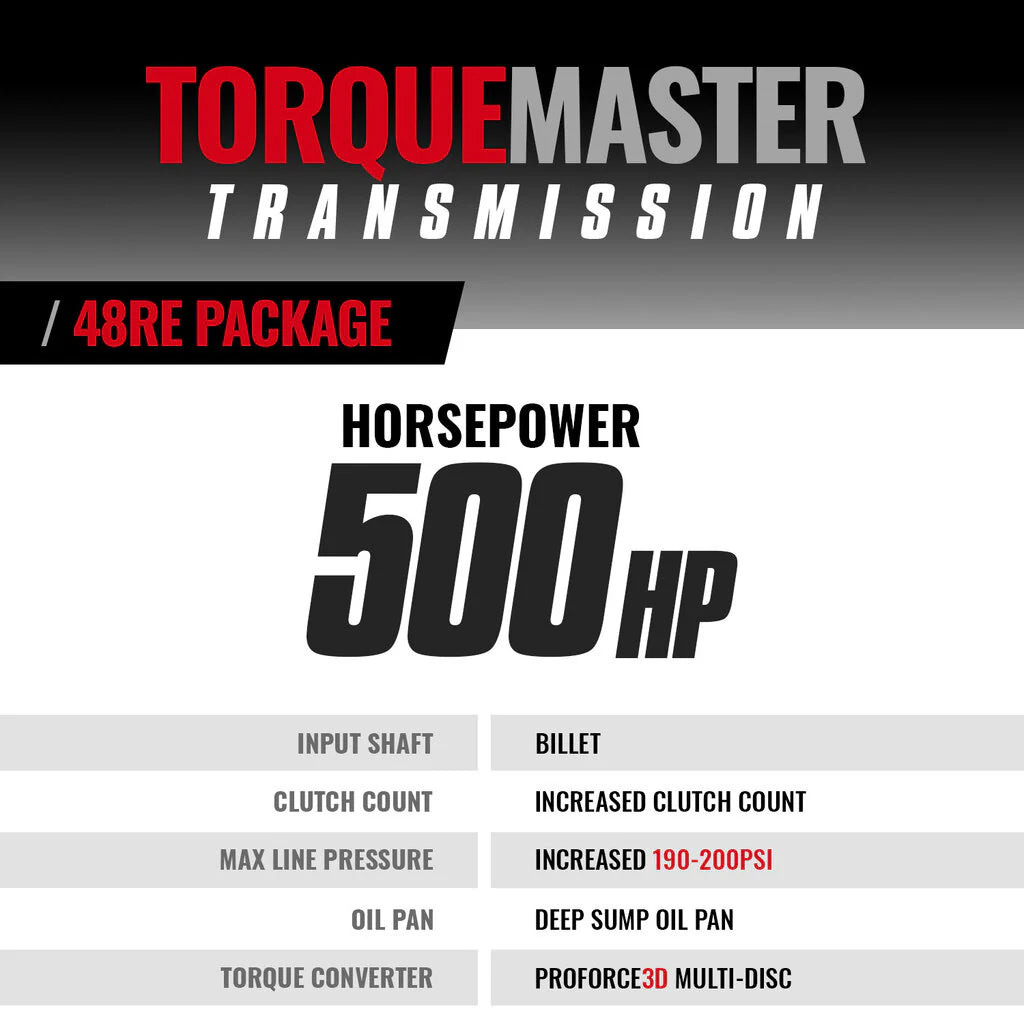

✅ Key Features

🔧 Transmission Highlights

• Upgraded Valvebody & governor solenoid

• Upgraded governor pressure transducer (2x burst strength)

• Increased line pressure: 190–200 PSI

• Billet band lever & strut

• Billet "Big" fine spline input shaft

• Drilled intermediate shaft for enhanced lubrication

• Roller Torrington thrust bearings

• Clutch Counts: OD (6), OD Direct (10), Forward (5), Direct (6)

• High-temp Raybestos band

• No shuttle shifting & modified valve for lube in all gears

• BD heavy-duty aluminum transmission pan w/ 2qt capacity increase

• Cooler line case saver & magnetic drain plug

• BD full-flow auxiliary transmission filter kit

• Not intended for race or sled pull applications

⚙️ Torque Converter Specs

• Triple Disc with Enhanced Stall for street/tow use

• Cast stator and furnace-brazed turbine fins

• HD springs reduce shock during engagement

• One-piece stamp forged cover eliminates warping

• Rebuildable taller cover & trapezoid self-centering teeth

• Thrust bearings for long-term durability

• Reduced weight by 12 lbs vs competitors

• Riveted piston to prevent alignment issues and weld fatigue

🚙 Vehicle Compatibility

Fits the Following Applications:

• 2005 Dodge Ram 2500/3500 4WD 5.9L Cummins

• 2006 Dodge Ram 2500/3500 4WD 5.9L Cummins

• 2007 Dodge Ram 2500/3500 4WD 5.9L Cummins (non-6.7L only)

Designed for trucks originally equipped with the 48RE automatic transmission.

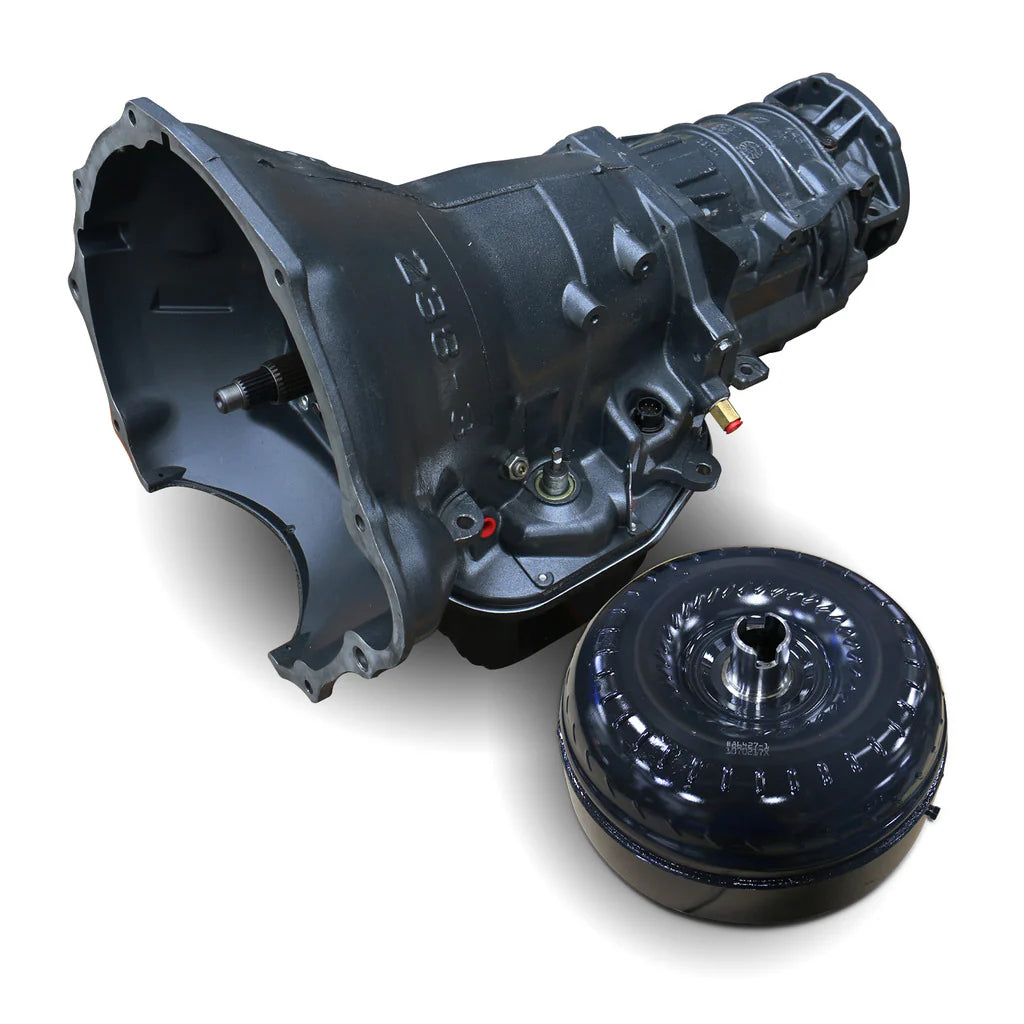

📦 What’s Included

• BD TorqueMaster 48RE Transmission (Billet Input Shaft)

• BD ProForce Triple Disc Torque Converter

• BD Heavy Duty Aluminum Transmission Pan

• BD Auxiliary Full Flow Transmission Filter Kit

• Upgraded sensors and sealed wiring connections

🛠️ Why Choose BD Diesel?

BD Diesel is trusted by diesel truck owners for their rigorous engineering, dyno testing, and dedication to reliability. This package is tested as a pair—transmission and converter—ensuring synchronized performance under stress. Backed by a 36-month/150,000-mile parts warranty and equipped with billet-strength internals, this TorqueMaster kit is the answer to common 48RE failures and the best solution for towing, daily driving, or light performance upgrades.
