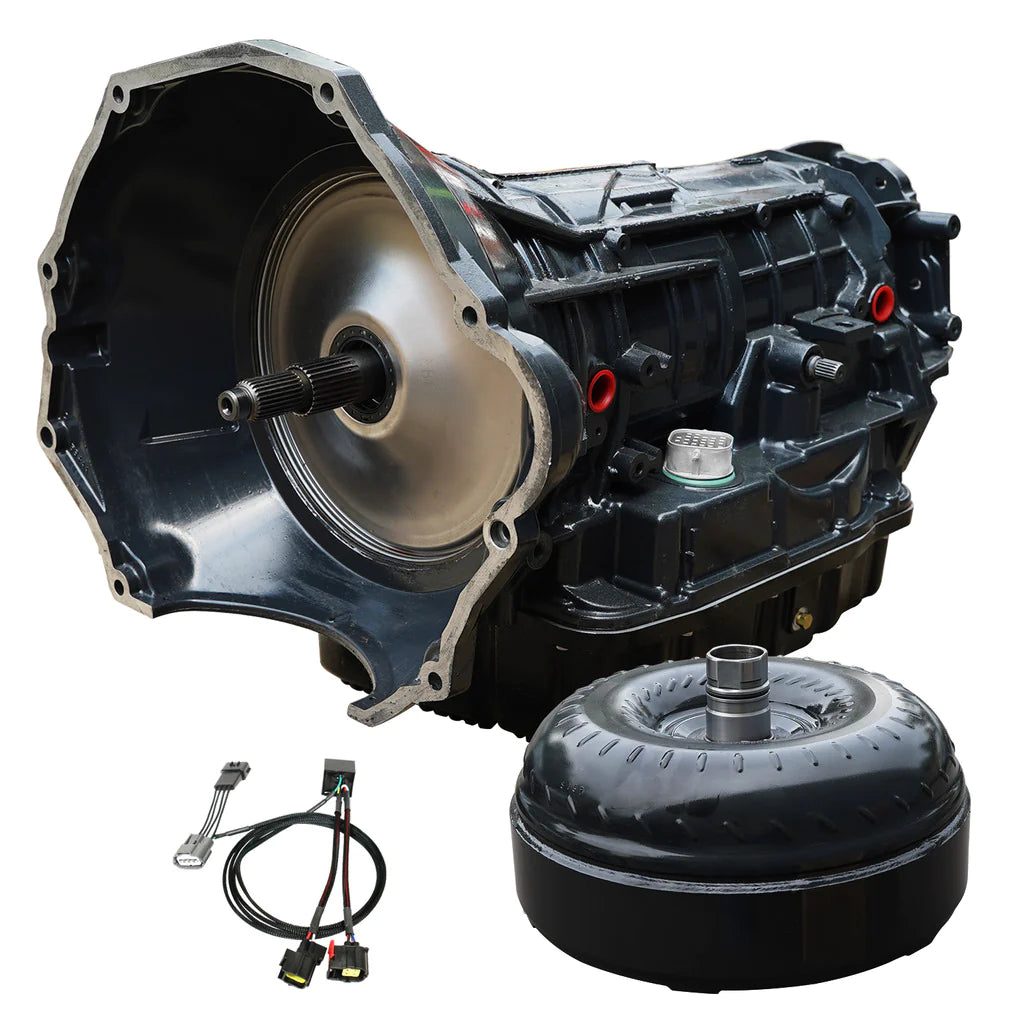

BD Diesel Torquemaster Dodge 68RFE Transmission & Converter Package - 2007.5-2018 4wd C/w Billet Input Shaft - 1064264BM

Name: BD Diesel Torquemaster Dodge 68RFE Transmission & Converter Package - 2007.5-2018 4wd C/w Billet Input Shaft - 1064264BM
Brand: BD Diesel
SKU: BDD1064264BM
Price: 8019.00 USD
Availability: InStock

2 sold in last 8 hours

Brand: BD Diesel

SKU: BDD1064264BM

availability: In stock

Product Code: Transmissions

$8,019.00

Quantity

Quantity must be 1 or more

Description

Description

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

REQUIRES $2,800.00 USD REFUNDABLE CORE DEPOSIT

*Requires additional chargers for Freight shipping you will be contacted and sent a invoice for this shipping at our cost* (If you try to deny these charges you will be charged a cancellation fee)

FEATURES

TRANSMISSION:

Hard anodized valve body and new solenoid pack installed in every unit
Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
Heavy duty cam & roller design low reverse one way clutch
New 4C billet spring retainer
Steel girdle added to 2C piston to allow for more clutches and broader apply area
BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
Over Drive clutches 33% increase & 2C clutches 33% increase
Custom Big Stack overdrive shaft
BD reinforced accumulator plate
TCC limit valve machined and sleeved to address high wear area with in pump
BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required

PROFORCE 3D TORQUE CONVERTER:

Triple Disc
Enhanced Stall - Street/Towing applications
HD springs absorb shock of engagement
Stamp forged 1-piece cover
Eliminates warpage from clutch heat
Taller cover can be rebuilt more often
Trapezoid teeth design
Engineered tighter tolerances
Self-centering trapezoid teeth design increases contact decreases wear and chatter
Thrust bearings - not plastic thrust washers
Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
Cast stator designs maximizes torque
New sprag components ensure long term durability
Furnaced brazed turbine fins for improved fluid coupling efficiency
Reduced overall weight by 12lbs compared to competitors

PROFORCE TORQUE CONVERTER:

Enhanced Stall - Street/Towing applications
Torque multiplying cast aluminum stators
Lower rpm response than the stock converter
More efficient operation
Less heat and better fuel economy
Stamp-forged steel front cover
Furnace-brazed fins

INSTALL TIME

9 Hours

WARRANTY

Parts

36-Months
150,000 Miles

Labour

12-Months
24,000 miles

Note

No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

EMISSIONS

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)

VIDEOS

68RFE EXPLAINED! VALVE BODY

HOW TO: 68REF RELEARN

BD DIESEL 68RFE BIG STACK EXPLAINED

TRANSMISSION SHOP WALKTHROUGH

68RFE TRANSMISSION RELEARN

This Part Fits:

Year	Make	Model	Submodel
2007-2010	Dodge	Ram 2500	Laramie
2007-2010	Dodge	Ram 2500	SLT
2007-2010	Dodge	Ram 2500	ST
2008-2010	Dodge	Ram 2500	SXT
2010	Dodge	Ram 2500	TRX
2007-2010	Dodge	Ram 3500	Laramie
2007-2010	Dodge	Ram 3500	SLT
2007	Dodge	Ram 3500	Sport
2007-2010	Dodge	Ram 3500	ST
2008-2010	Dodge	Ram 3500	SXT
2013-2018	Ram	2500	Big Horn
2011-2018	Ram	2500	Laramie
2014-2015	Ram	2500	Laramie Limited
2011-2018	Ram	2500	Laramie Longhorn
2016-2018	Ram	2500	Limited
2013-2015	Ram	2500	Lone Star
2012-2016	Ram	2500	Outdoorsman
2011-2018	Ram	2500	SLT
2011-2013	Ram	2500	ST
2013-2018	Ram	2500	Tradesman
2013-2018	Ram	3500	Big Horn
2011-2018	Ram	3500	Laramie
2014-2015	Ram	3500	Laramie Limited
2011-2018	Ram	3500	Laramie Longhorn
2016-2018	Ram	3500	Limited
2013-2015,2017	Ram	3500	Lone Star
2011-2018	Ram	3500	SLT
2011-2013	Ram	3500	ST
2013-2018	Ram	3500	Tradesman
