BD Diesel 1064264BM TorqueMaster 68RFE Transmission & ProForce 3D Converter Package w/ Billet Input Shaft – 2007.5–2018 Dodge 6.7L Cummins 4WD

The BD Diesel 1064264BM TorqueMaster Transmission & Converter Package delivers unmatched durability and performance for your 2007.5–2018 Dodge 6.7L Cummins 4WD equipped with the 68RFE transmission. Featuring a billet input shaft, this kit is designed to handle high horsepower, rapid throttle applications, heavy towing, and daily driving without breaking a sweat.

BD’s hard anodized valve body, deep sump pan, and 250 PSI-capable pressure control module work in tandem to deliver smoother, quicker shifts while reducing transmission temperatures. Inside the converter, the ProForce 3D Triple Disc Torque Converter ensures tight power transfer, long-term durability, and reduced internal vibration—making it ideal for street and towing use.

💰 Requires $2,500 Refundable Core Charge
⏱️ Install Time: ~9 Hours

✅ Key Features:

Transmission Upgrades:

• Hard anodized valve body with new solenoid pack

• Custom bonded gasket separator plate eliminates cross leaks & boosts pressure

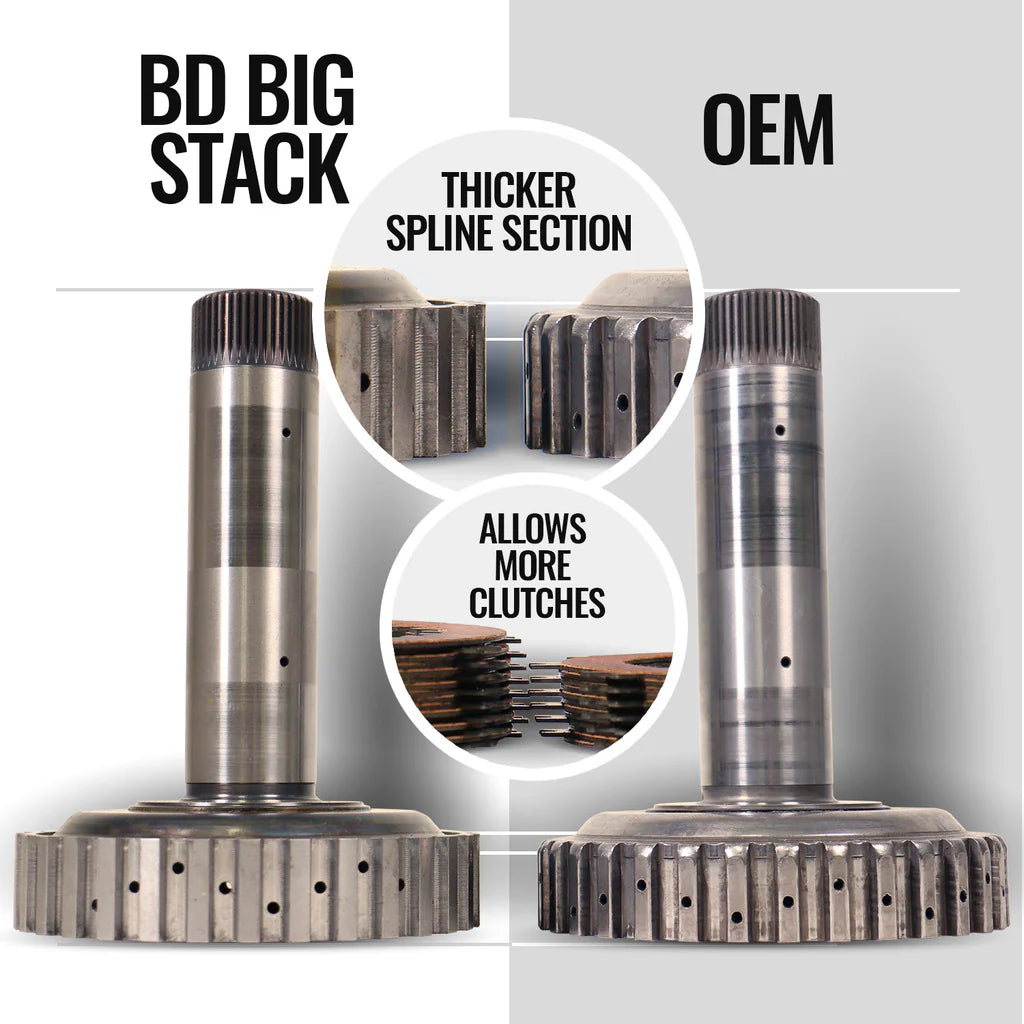

• Billet input shaft for maximum strength under load

• 33% increase in Overdrive & 2C clutch packs

• BD QT100 pressure plates reduce deflection & distortion

• BD ProTech68 module: ramps line pressure up to 250 PSI via MAP sensor input

• Steel girdle-reinforced 2C piston for broader clutch engagement

• Reinforced accumulator plate & sleeved TCC limit valve

• Heavy-duty low reverse one-way clutch

• Deep sump pan for extra fluid capacity and cooling

Torque Converter (ProForce 3D Triple Disc):

• Triple disc design with enhanced stall for towing/street

• Stamp-forged, taller one-piece cover – warp-free & rebuildable

• Self-centering trapezoid teeth to minimize wear & chatter

• Riveted piston to eliminate weld fatigue or alignment issues

• Cast stator and new sprag components for long-term reliability

• 12 lb lighter than competitor converters

• Thrust bearings (no plastic washers) & furnace-brazed turbine fins

🚙 Vehicle Compatibility:

• 2007.5–2018 Dodge Ram 2500 6.7L Cummins 4WD (w/ 68RFE Transmission)

• 2007.5–2018 Dodge Ram 3500 6.7L Cummins 4WD (w/ 68RFE Transmission)

❌ Not compatible with G56 or Aisin-equipped models.

📦 What’s Included:

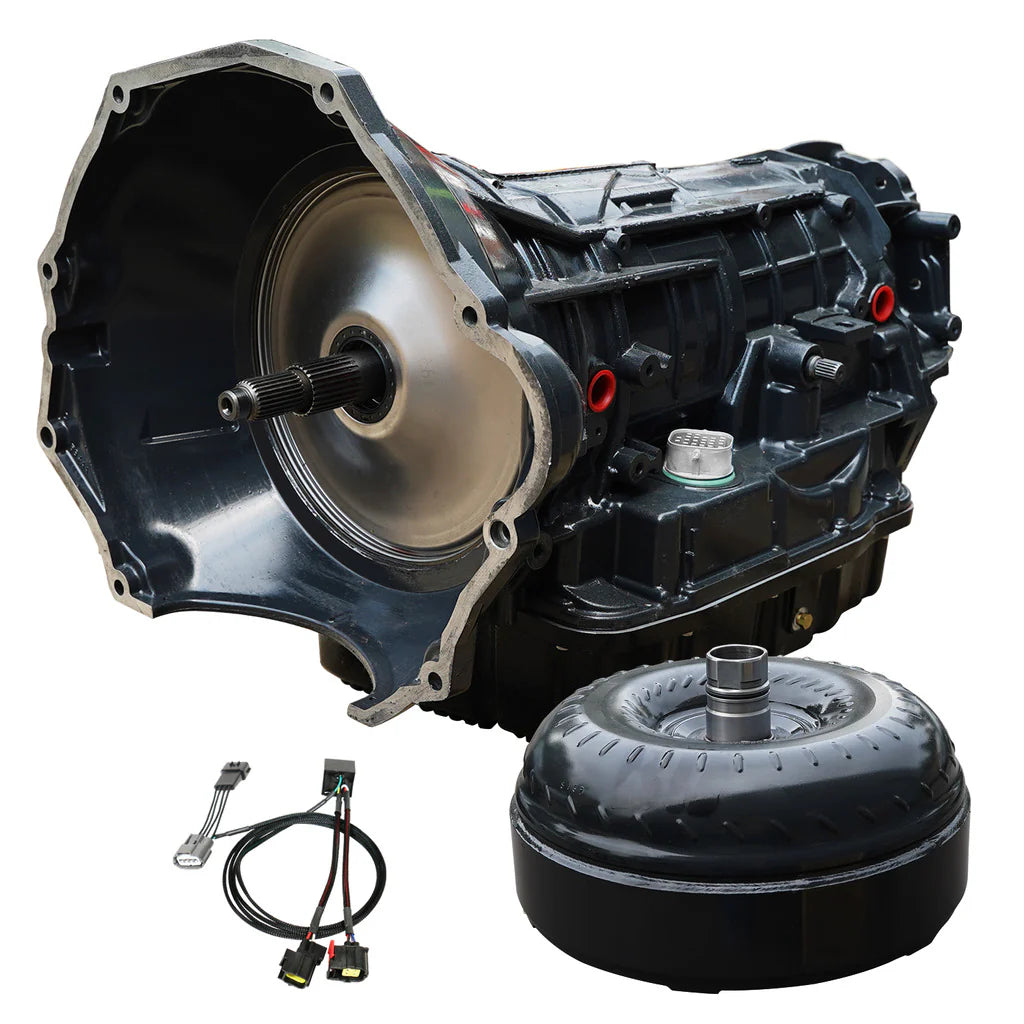

• BD TorqueMaster 68RFE Transmission (assembled & dyno-tested)

• BD ProForce 3D Triple Disc Torque Converter

• Billet Input Shaft (pre-installed)

• BD Deep Sump Oil Pan

• ProTech68 Pressure Control Module

• New Valve Body & Solenoid Pack

• Heavy-Duty Internal Components & Upgraded Clutch Packs

• Installation Instructions & Warranty Info

• 36-Month / 150,000-Mile Parts Warranty

• 12-Month / 24,000-Mile Labor Warranty

🛠️ Why Choose BD Diesel?

BD Diesel's TorqueMaster Series pushes the limits of what your 68RFE can handle. From billet input shafts and QT100 pressure plates to custom-machined internals and dyno-tested assemblies, BD’s dedication to quality and performance is unmatched. Designed for towing, street use, and moderate performance builds, the TorqueMaster delivers factory fitment with track-worthy strength.

With BD, you're not just replacing your transmission—you're eliminating failure points.
