BD Diesel 1064294BM TorqueMaster 68RFE Transmission & ProForce 3D Converter Package w/ Billet Input Shaft – 2019–2024 Ram 6.7L Cummins 4WD

The BD Diesel 1064294BM TorqueMaster Transmission & Converter Package is built to outlast and outperform in 2019–2024 Ram 2500 and 3500 6.7L Cummins 4WD applications with the 68RFE transmission. This top-tier package includes a billet input shaft and BD’s ProForce 3D triple disc converter, combining street-friendly driveability with the torque-handling ability you need for towing, high power output, and long-term reliability.

This kit comes fully assembled and dyno-tested, featuring BD's QT100 pressure plates, a 33% increase in clutch packs, a Big Stack overdrive shaft, and a reinforced accumulator plate. The ProForce converter further boosts durability with a forged one-piece cover, trapezoid teeth, and furnace-brazed fins. A special tune is required to activate the transmission's full line pressure capabilities on 2019+ models.

💰 $2,500 Refundable Core Charge Required
⚠️ Requires custom tuning for proper line pressure on 2019+ trucks
⏱️ Install Time: ~9 Hours

✅ Key Features:

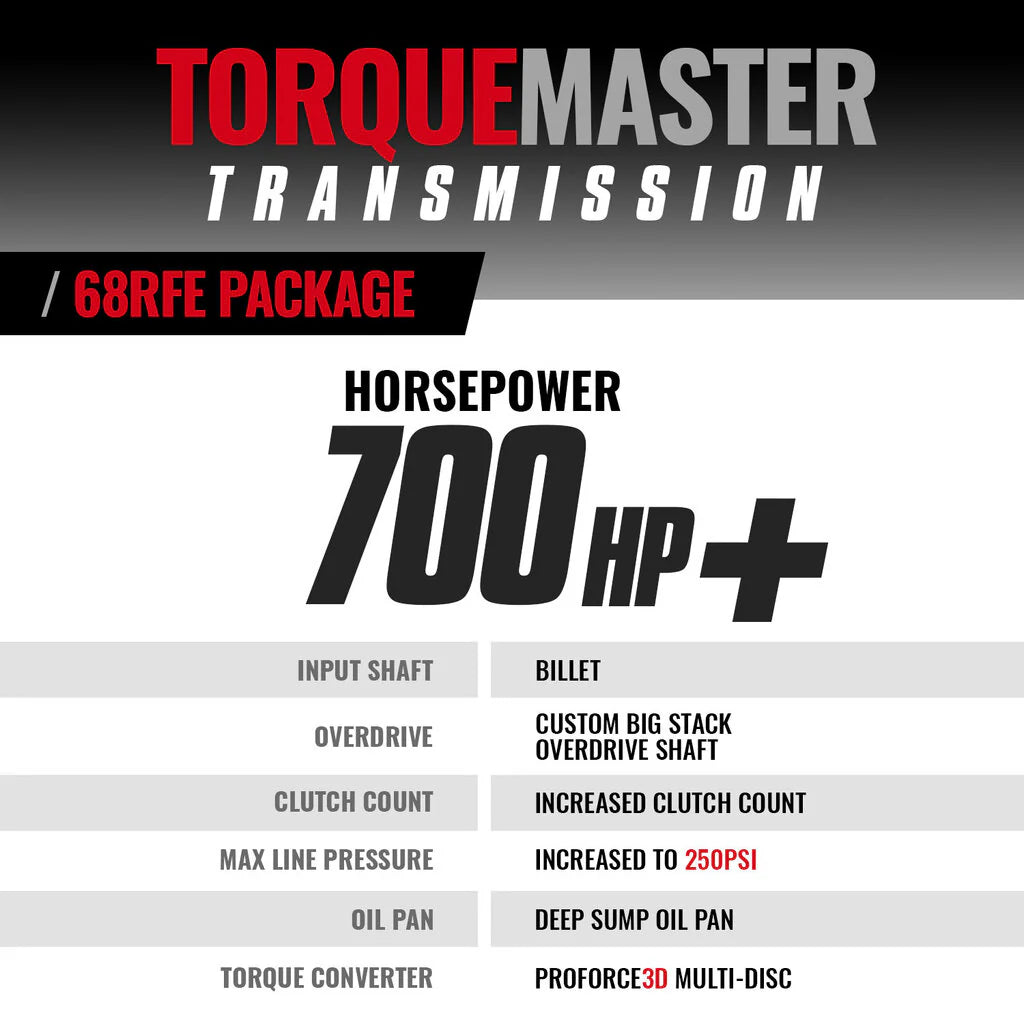

Transmission Upgrades:

• Billet Input Shaft withstands aggressive throttle & high torque

• Hard anodized valve body w/ new solenoid pack

• Custom bonded gasket separator plate improves pressure & seals cross-leaks

• 33% increase in Overdrive & 2C clutch counts

• BD QT100 pressure plates reduce distortion under load

• Steel girdled 2C piston allows more clutch engagement

• BD reinforced accumulator plate

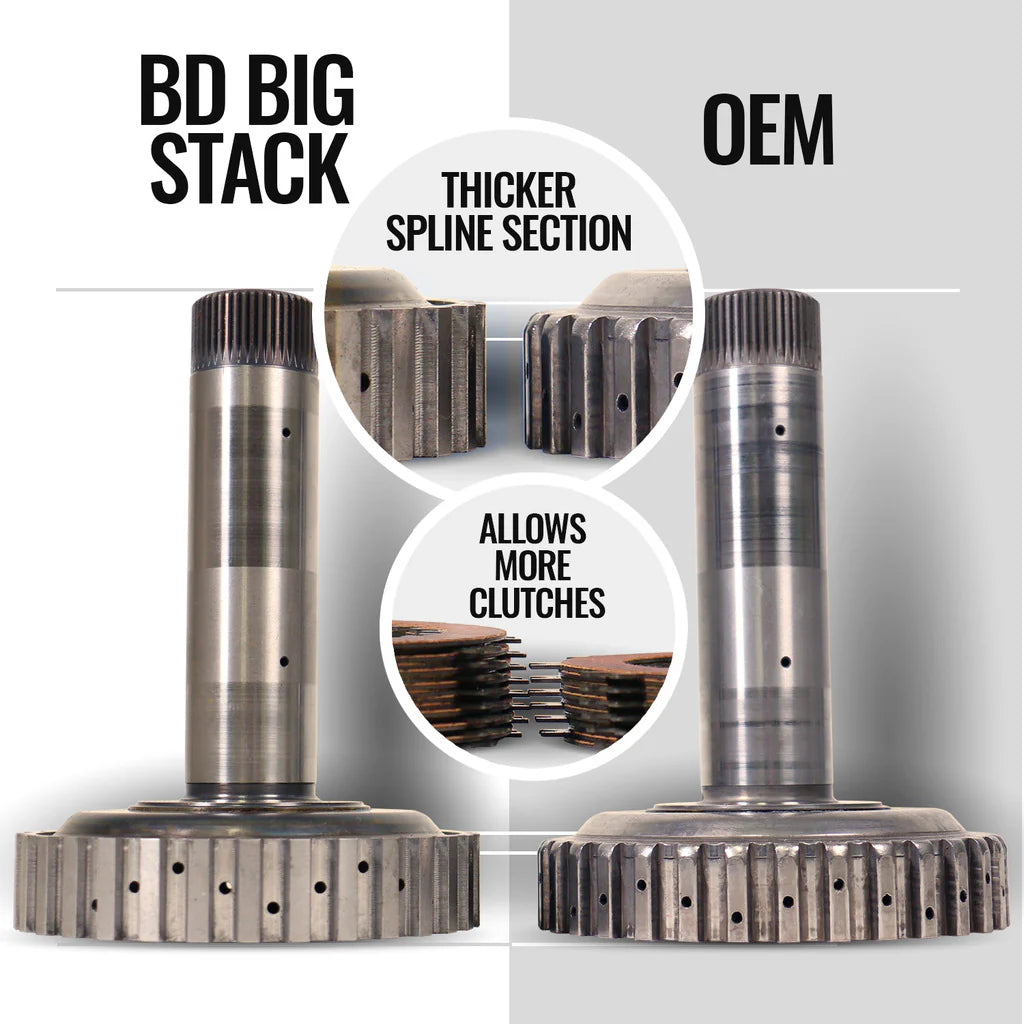

• Big Stack overdrive shaft for superior strength

• Deep sump oil pan adds cooling capacity & reduces case flex

• Heavy-duty low reverse cam & roller clutch

• Requires external line pressure tuning for 2019+ models (no controller included)

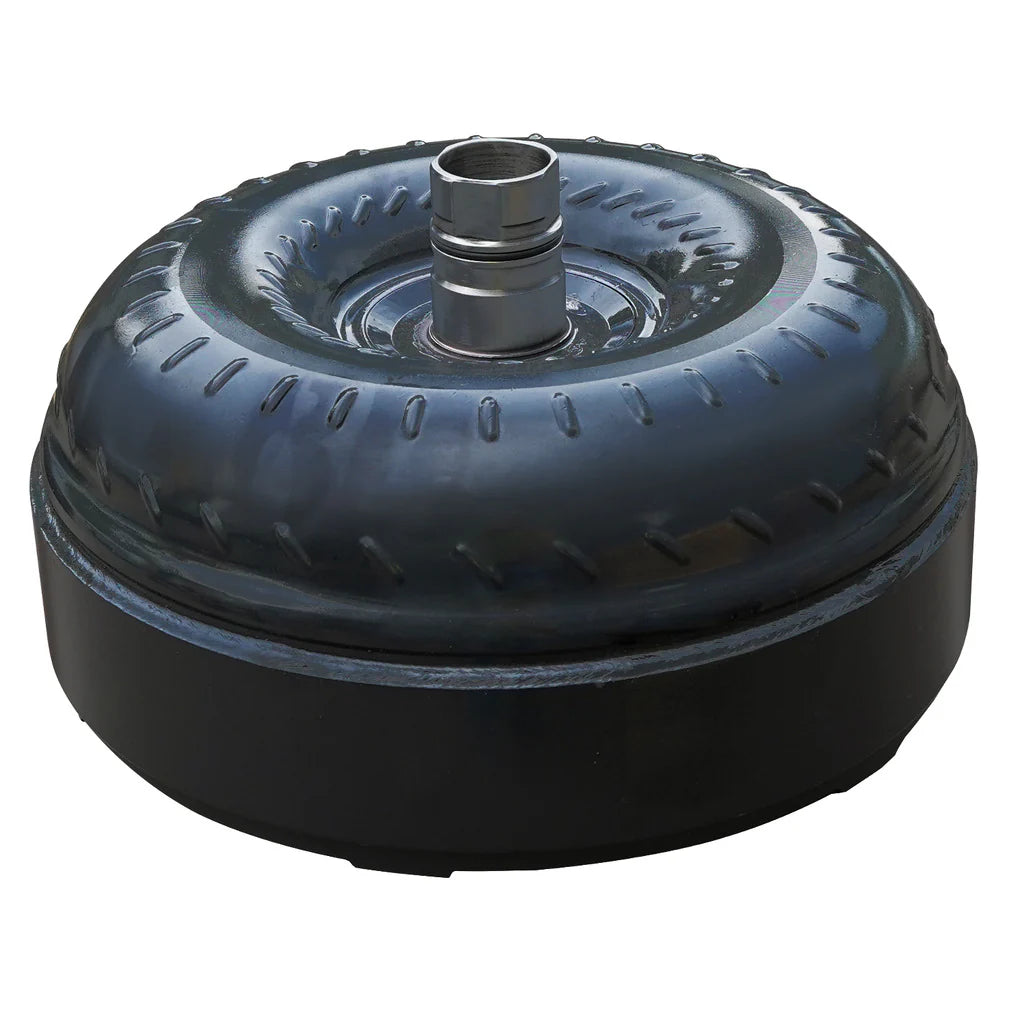

ProForce 3D Triple Disc Converter:

• Triple disc for improved torque capacity

• Forged 1-piece cover prevents warpage

• Taller cover can be serviced/rebuilt more frequently

• Trapezoid teeth reduce wear & chatter

• Riveted piston for long-term alignment & strength

• Cast stator & new sprag for enhanced torque multiplication

• Furnace-brazed turbine fins for optimal fluid coupling

• HD springs absorb engagement shock

• 12 lbs lighter than comparable units

🚙 Vehicle Compatibility:

• 2019–2024 Ram 2500 6.7L Cummins 4WD (w/ 68RFE Transmission)

• 2019–2024 Ram 3500 6.7L Cummins 4WD (w/ 68RFE Transmission)

❌ Not compatible with Aisin or G56 transmissions
⚠️ Special tuning required to increase line pressure in 2019+ trucks

📦 What’s Included:

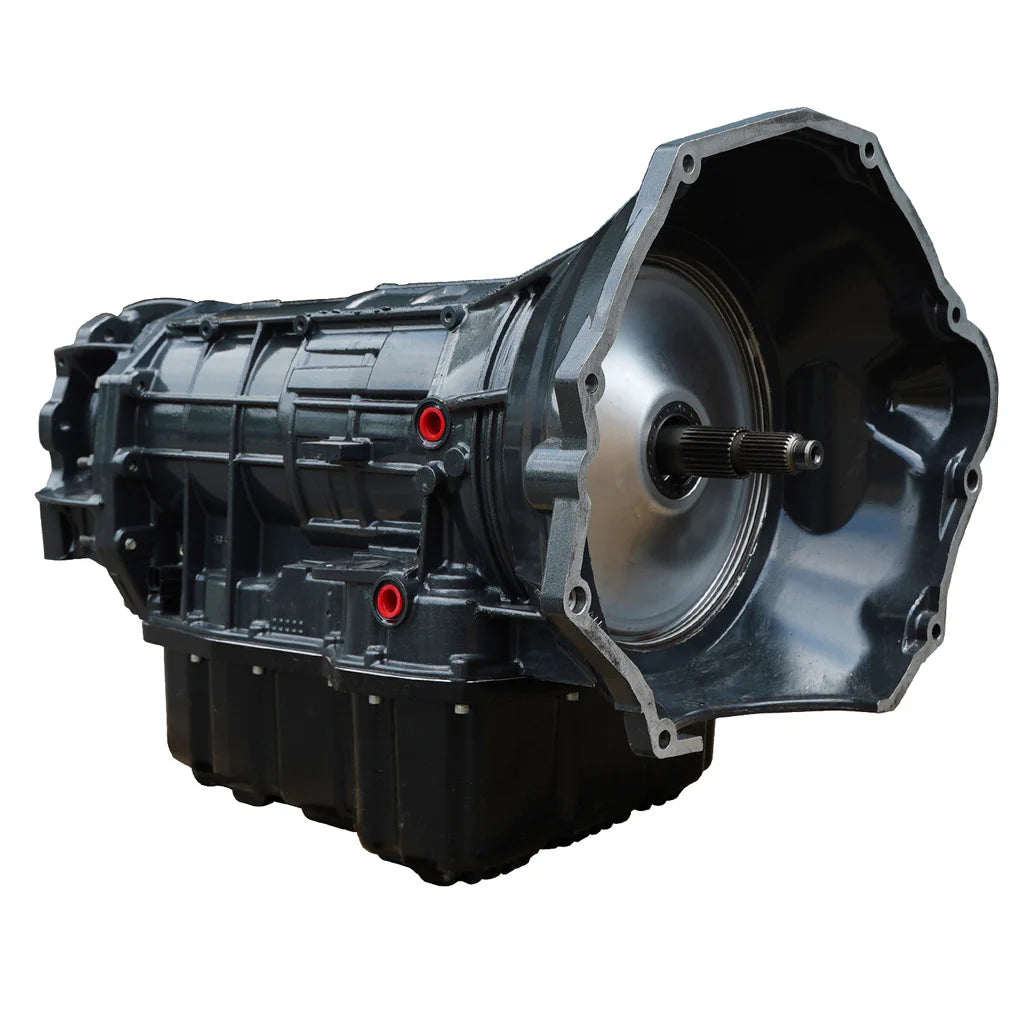

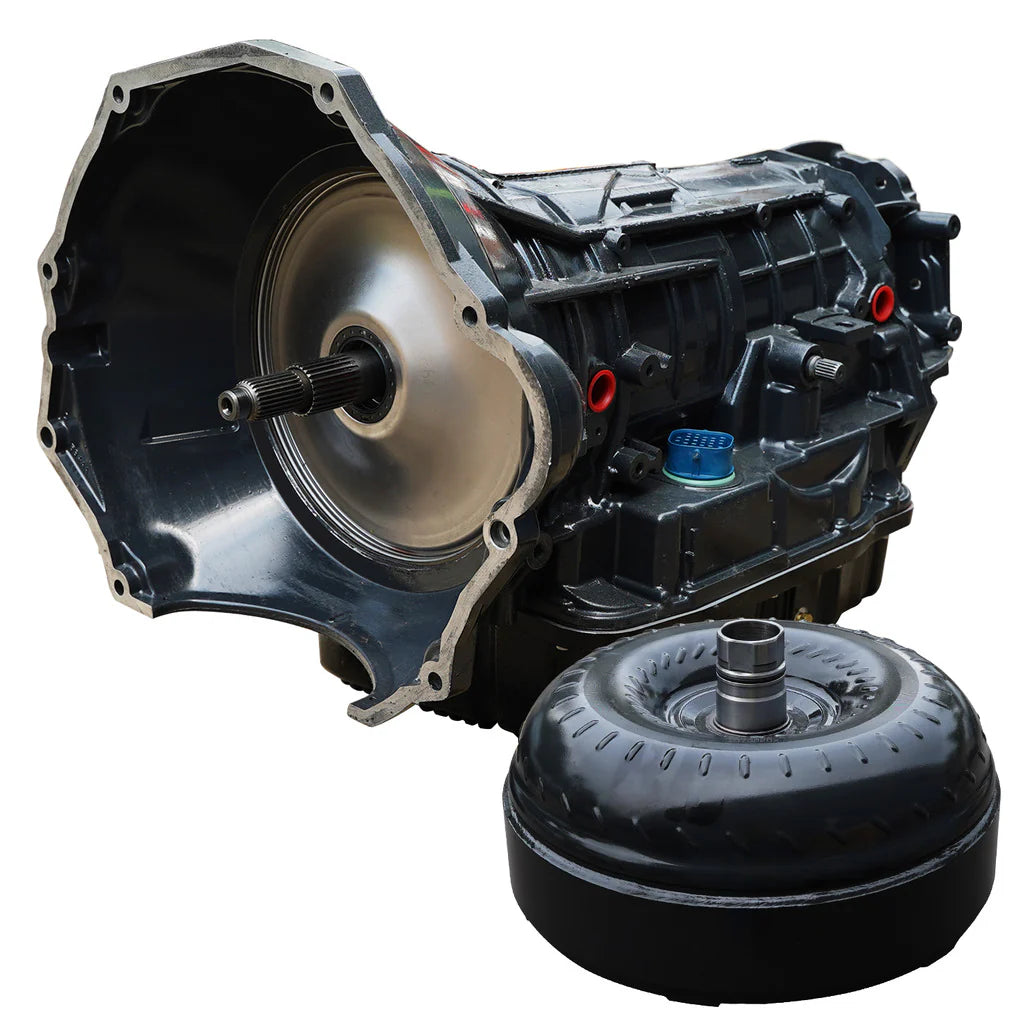

• BD TorqueMaster 68RFE Transmission (Pre-Assembled & Dyno-Tested)

• ProForce 3D Triple Disc Torque Converter

• Billet Input Shaft (Installed)

• Deep Sump BD Transmission Pan

• Upgraded Valve Body, QT100 Pressure Plates, Accumulator Plate

• Clutch Enhancements (33% OD/2C Increase)

• Warranty: 36-Month / 150,000-Mile Parts | 12-Month / 24,000-Mile Labor

🛠️ Why Choose BD Diesel?

BD Diesel has a reputation for solving the real-world weaknesses of factory transmissions—and the TorqueMaster continues that legacy. With premium internals, billet strength, and dyno-verified performance, this package is engineered for the modern 6.7L Cummins driver pushing more power or more payload. Whether you're daily driving, towing, or running mods, BD delivers performance you can trust.
