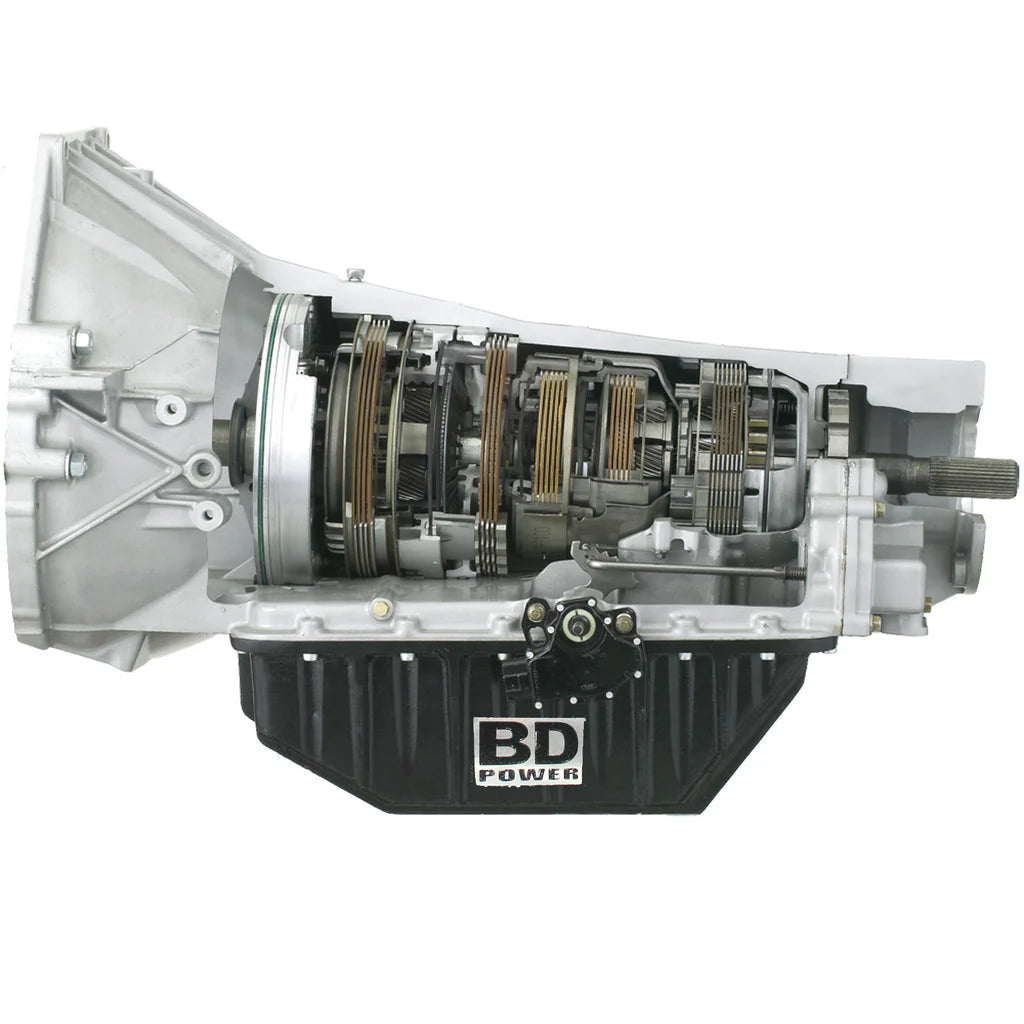

BD Diesel 1064482 TowMaster 5R110 Transmission – 2005–2007 Ford 6.0L Power Stroke (2WD Slip Yoke)

Upgrade the heart of your drivetrain with the BD Diesel TowMaster 5R110 Transmission, purpose-built for 2005–2007 Ford Super Duty 6.0L Power Stroke (2WD w/ Slip Yoke driveshaft). Designed for enhanced reliability and durability, this transmission is packed with upgraded clutch packs, reinforced internals, and improved hydraulic control.

Each TowMaster transmission features a BD aluminum HD deep pan, late-model sump filter, and reworked front pump—all dyno-tested before shipping to ensure consistent performance. This unit is ideal for trucks that need a heavy-duty solution without a torque converter included.

💰 $1,500 USD refundable core deposit required.

✅ Key Features:

Transmission Highlights:

• BD Aluminum Deep Sump Pan increases oil capacity by 6 quarts

• Upgraded large-capacity sump filter for improved filtration

• Replaced factory plastic pressure plugs with durable aluminum plugs

• Reworked front pump for greater hydraulic stability

• Heavy-duty snap ring and pressure regulator prevent pressure-related case damage

• Dyno-tested before shipment

• Clutch Count Upgrades:

  • Coast Clutch: 3

  • Forward Clutch: 4

  • Low Reverse: 6

  • Intermediate: 5 (+67%)

  • Direct: 6 (+50%)

  • Overdrive: 5 (+67%)

• Converter sold separately (see Part: 1064482SM for full package)

(BD Diesel Transmissions only have warranty when running a BD Trans & Converter)

🚙 Vehicle Compatibility:

• 2005 Ford F-250 / F-350 6.0L Power Stroke (2WD w/ Slip Yoke)

• 2006 Ford F-250 / F-350 6.0L Power Stroke (2WD w/ Slip Yoke)

• 2007 Ford F-250 / F-350 6.0L Power Stroke (2WD w/ Slip Yoke)

⚠️ Fits only 2WD trucks with a slip yoke driveshaft. Please verify output shaft type before ordering.

⚠️ BD torque converter must be installed during installation. Use of OE or third-party converters voids warranty.

📦 What’s Included:

• BD TowMaster 5R110 Transmission Assembly (No Converter)

• BD Aluminum Deep Transmission Pan

• Upgraded Sump Filter (Late-Model Design)

• Aluminum Valve Body Pressure Plug Set

• Reworked Front Pump

• Pre-installed Upgraded Clutch Packs

• Installation Guidelines & Notes

🛠️ Why BD Diesel?

BD Diesel transmissions are engineered for diesel enthusiasts who push their trucks beyond the limits of the factory drivetrain. Built to handle increased torque loads and elevated temperatures, the TowMaster 5R110 series combines smart upgrades with real-world testing for superior reliability. Whether you're towing, working, or building power, BD delivers transmissions built to last.
