BD Diesel 1064642SM RoadMaster 5R110 Transmission & Converter – 2005–2007 Ford 6.0L Power Stroke F-250/F-350 (2WD)

The BD Diesel 1064642SM RoadMaster 5R110 Transmission & Converter Package is purpose-built to increase reliability and longevity for 2005–2007 Ford Super Duty trucks with the 6.0L Power Stroke engine (2WD). This drop-in replacement package features all-new internal upgrades, enhanced cooling capacity, and BD's proven ProForce Torque Converter for smoother, more dependable performance.

💰 $1,800 Refundable Core Deposit Required
⏱️ Install Time: ~7 Hours

✅ Key Features:

Transmission Upgrades:

• Upgraded hardened steel pressure regulator valve prevents reverse pressure spikes, gear slip, and case failure

• Late-model sump filter enhances oil filtration

• Machined front pump stops cross leaks

• Converter clutch regulator spring improves torque converter clutch apply pressure

• Aluminum valve body plugs replace OE plastic plugs for better durability

• BD Deep Sump Aluminum Oil Pan increases fluid capacity by 6 quarts and improves cooling

• Heavy-duty low/reverse snap ring increases overall strength

BD ProForce Torque Converter:

• Billet steel cover resists flexing and distortion

• Enhanced stall stator improves torque delivery in street and towing conditions

• Furnace-brazed turbine fins boost long-term durability and fluid efficiency

🚙 Vehicle Compatibility:

• 2005–2007 Ford F-250 Super Duty 6.0L Power Stroke (2WD)

• 2005–2007 Ford F-350 Super Duty 6.0L Power Stroke (2WD)

❌ Not for use with 4WD trucks or other engine configurations.

📦 What’s Included:

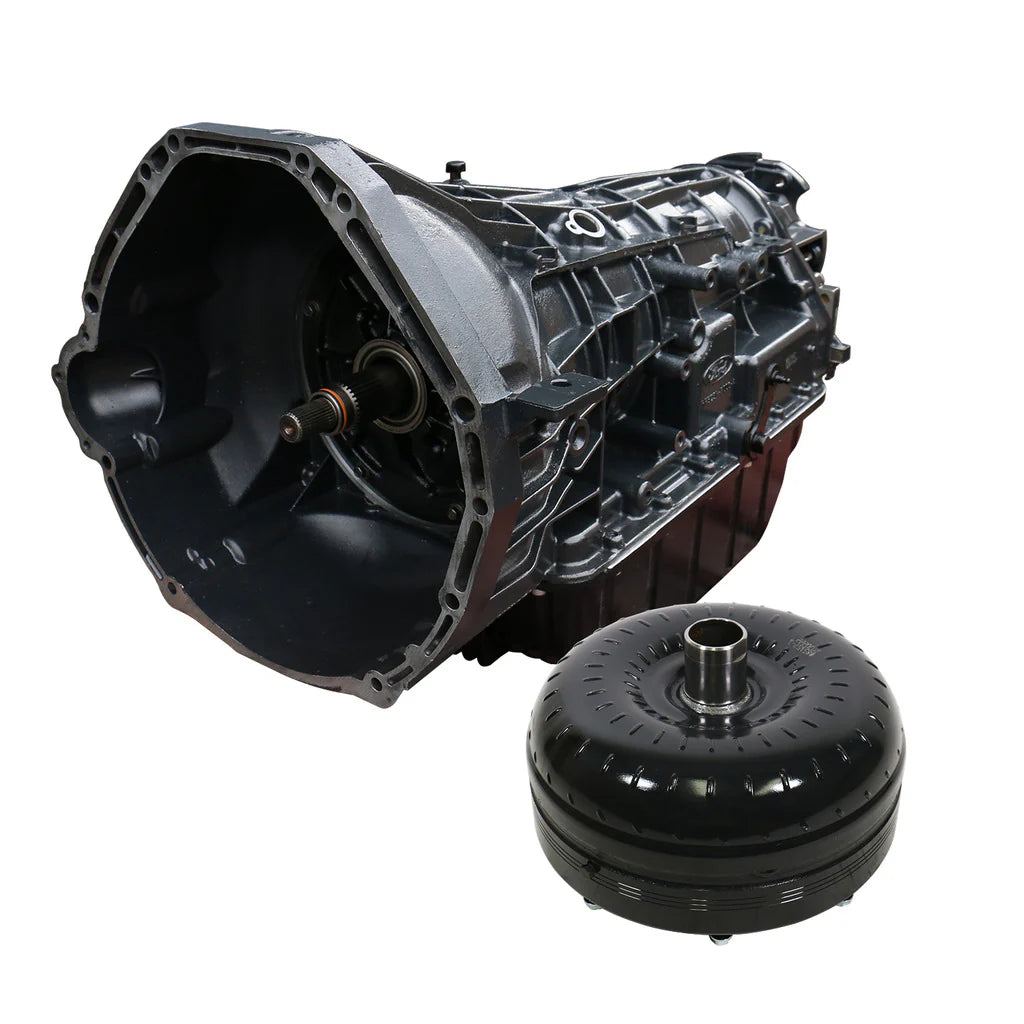

• BD Diesel RoadMaster 5R110 Transmission (2WD)

• BD ProForce Torque Converter

• BD Deep Sump Transmission Oil Pan

• All required internal upgrades and calibrations

• Fully dyno-tested and performance-matched

🛠️ Why Choose BD Diesel?

BD Diesel transmissions are engineered beyond OE specs — fixing the root cause of failure-prone stock designs. From line pressure enhancements to cooling improvements, every BD transmission is built to handle real-world power demands and daily driving conditions with ease.
