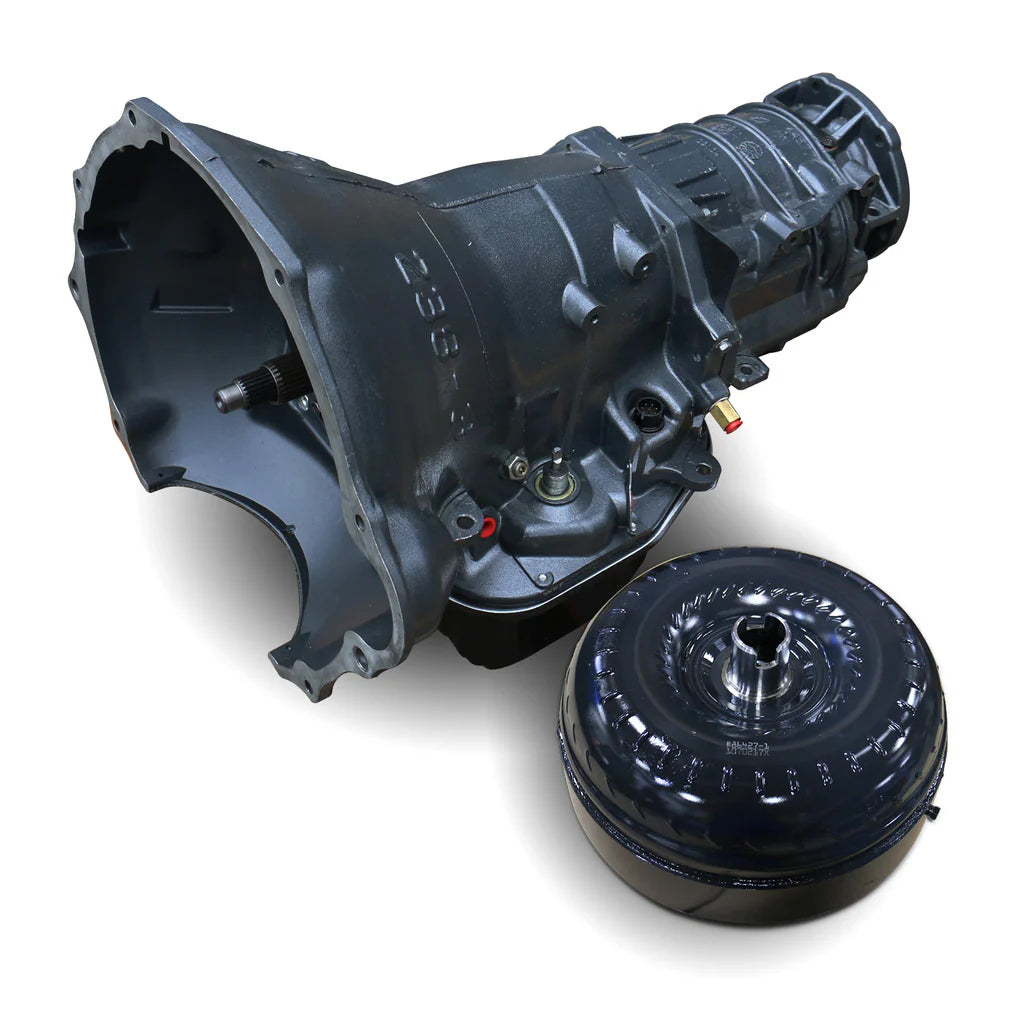

BD Diesel Towmaster Dodge 48RE Transmission & Converter Package - 2005-2007 4wd W/tvv Stepper Motor - 1064234SS

Built for 2005–2007 Dodge Ram 2500/3500 4WD trucks, this TowMaster 48RE transmission package from BD Diesel is the ideal solution for drivers who demand long-lasting durability, smoother towing performance, and increased torque handling. With upgraded internals and a triple-disc torque converter, this package includes everything needed for a high-performance drivetrain overhaul—engineered to handle power, heat, and stress where OEM units fail.

✅ Key Features

Transmission Highlights:

• Upgraded valve body for consistent high-pressure shifts

• High-burst-pressure governor solenoid and pressure transducer

• Line pressure raised to 190–200 PSI for stronger clutch engagement

• Eliminates shuttle shifting

• Manual valve modified for lube in all positions

• Stock thrust bushings replaced with Torrington roller bearings

• Clutch Count:
   • DIRECT: 6
   • FORWARD: 5
   • OVERDRIVE: 6
   • OD DIRECT: 10

• High-temp Raybestos band with billet band strut and lever

• Billet “Big” fine spline input shaft

• Intermediate shaft drilled for increased lubrication

• BD heavy-duty aluminum pan with 2qt added capacity and cooling fins

• Magnetic drain plug

• Cooler line case saver and full-flow auxiliary filter kit

• Dyno-tested to ensure performance and reliability

• Available with or without billet input shaft

ProForce 3D Torque Converter:

• Triple disc lock-up for high-torque holding

• Stamp-forged one-piece cover eliminates warping

• Taller rebuildable cover extends lifespan

• Trapezoid self-centering teeth for reduced wear

• Thrust bearings (not plastic washers)

• Furnace-brazed turbine fins for better fluid coupling

• Lightweight design reduces overall mass by 12 lbs

• Riveted piston design eliminates vibration

• Cast stator and upgraded sprag components ensure durability

• Ideal for towing and tuned street trucks

🚙 Vehicle Compatibility

• 2005, 2006, 2007 Dodge Ram 2500 4WD – 5.9L Cummins

• 2005, 2006, 2007 Dodge Ram 3500 4WD – 5.9L Cummins

• Supports TVV Stepper Motor configuration

📦 What’s Included

• BD 48RE TowMaster Transmission with Billet Input Shaft

• BD ProForce 3D Triple Disc Torque Converter

• BD HD Aluminum Deep Transmission Pan

• BD Auxiliary Full Flow Filter Kit

• Cooler Line Case Saver

• Required installation hardware

🛠️ Why Choose BD Diesel?
BD Diesel is a trusted leader in high-performance diesel drivetrain components. Their 48RE packages are built for heavy-duty towing and performance driving, featuring fully tested matched converter and transmission sets. When you choose BD, you get top-tier durability, expert craftsmanship, and warranty-backed confidence.

🕒 Install Time:
7 Hours 30 Minutes (includes sensor swaps and cooler flush)

🛡️ Warranty:
Parts: 36 Months / 150,000 Miles
Labor: 12 Months / 24,000 Miles
Race and sled pull use not covered. Remote filter required for warranty inspections.

🌎 Emissions:
50-state legal. Does not require a CARB EO. EMS:4
