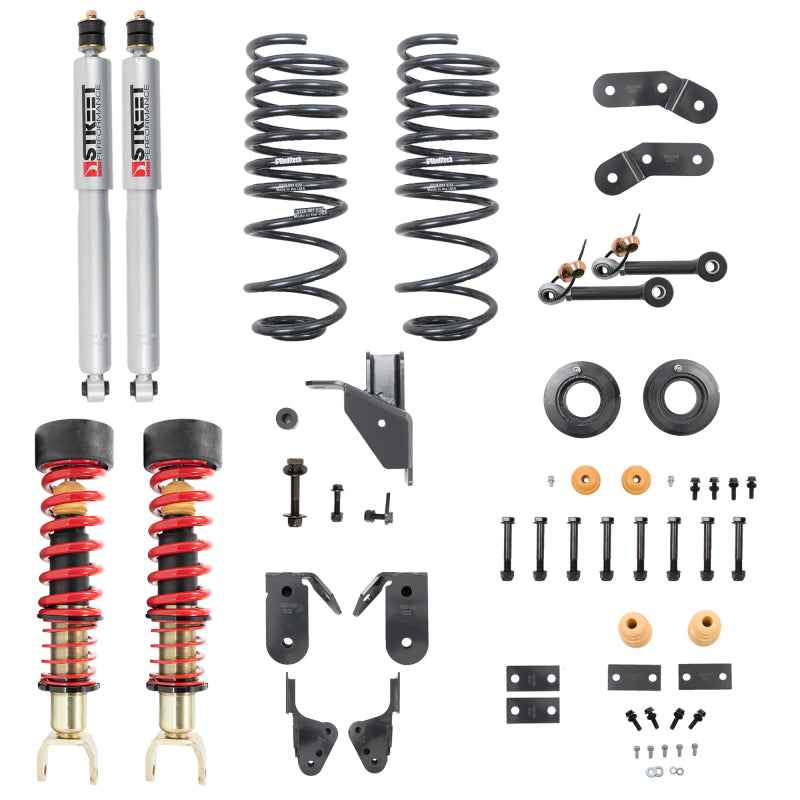

Belltech 19-23 RAM 1500 (6-LUG) Performance Coilover Kit 1-3in Front/3-4in Rear

Combining our newly released height adjustable front coilovers with our time-tested lowering components equal the optimum in sporttruck handling all in one convenient package. Kits will contain (depending on application), a combination of height adjustable coilovers, shock absorbers, sway bars and lowering components to give you a vast improvement over oem in overall performance and handling all while still retaining that comfortable ride quality.

Part Number: 1061SPC

Fits: 2019+ Ram 1500 2WD / 4WD

-1” to -3” Front and -3” or – 4” Rear 2WD

-1” to -4” Front and -3” or – 4” Rear 4WD

Precision and performance are the objective for the new line of Belltech 2019+ RAM 1500 lowering kits. Our kit lowers the front of your vehicle -1” to -3” on the 2WD application and -1” to -4” on the 4WD application. The rear is lowered -3” or -4”, to improve appearance and a lower center of gravity. We go well beyond looks and deliver the ride quality you have been dreaming of.

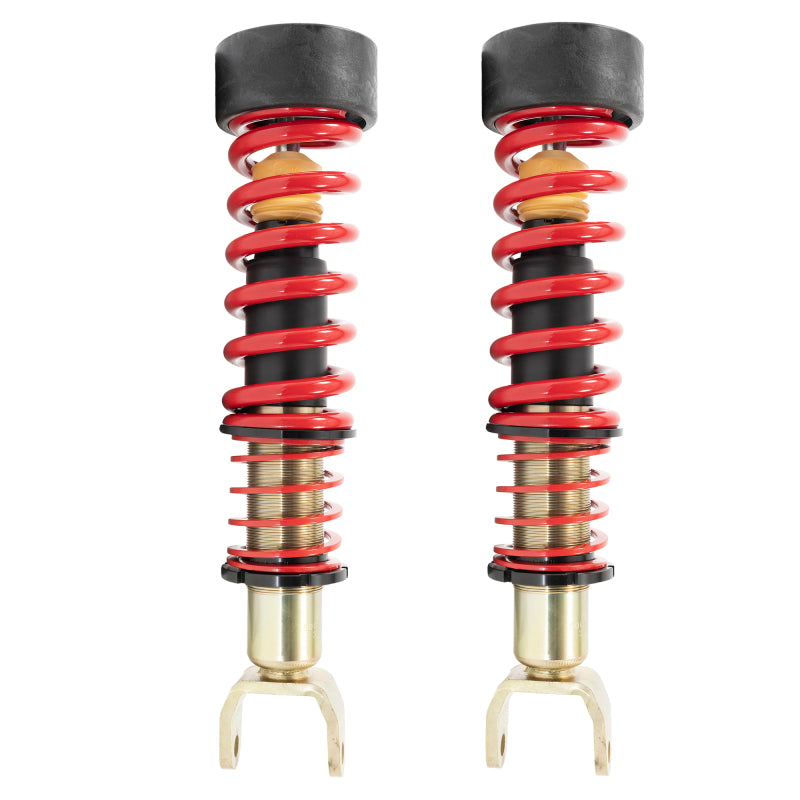

The front suspension includes our robust Belltech lowering coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech threaded damper. The dampers feature a large, 2.4” (60mm) damper body and 35mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout travel. The external threads and spring perch offer customizable height adjustability. We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive rate polymer, open-cell, bump stop for ideal bump stop engagement, and the OE top mounts for simplified installation.

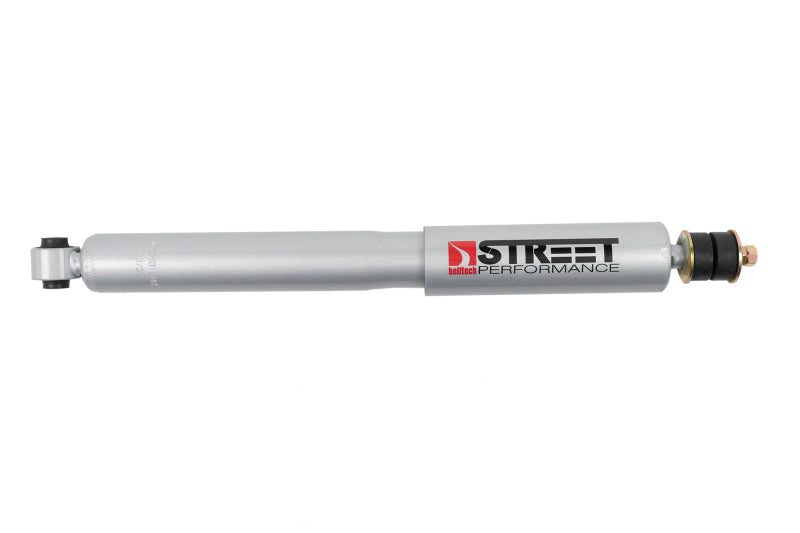

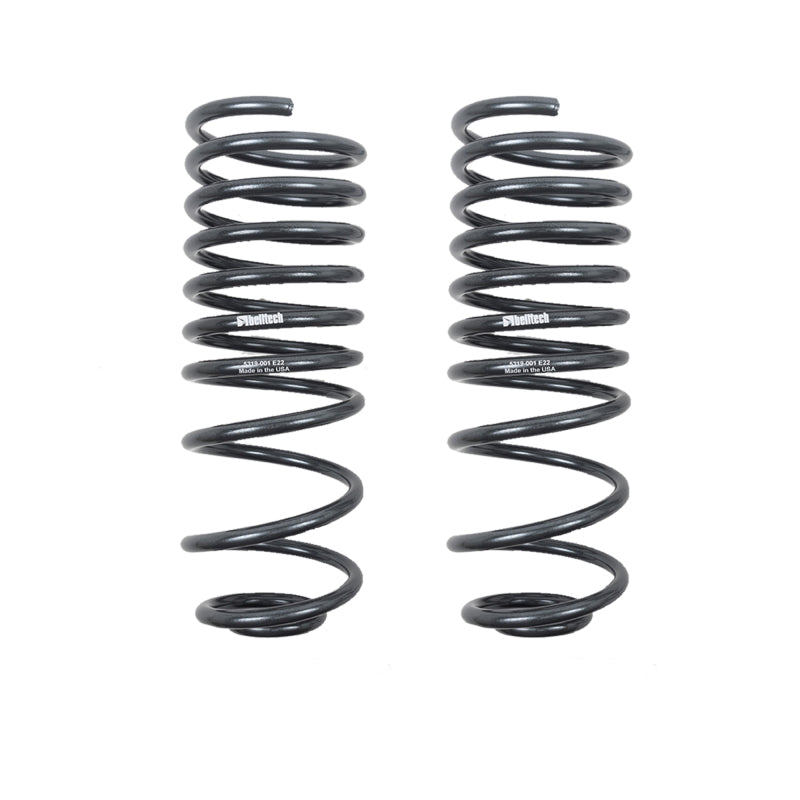

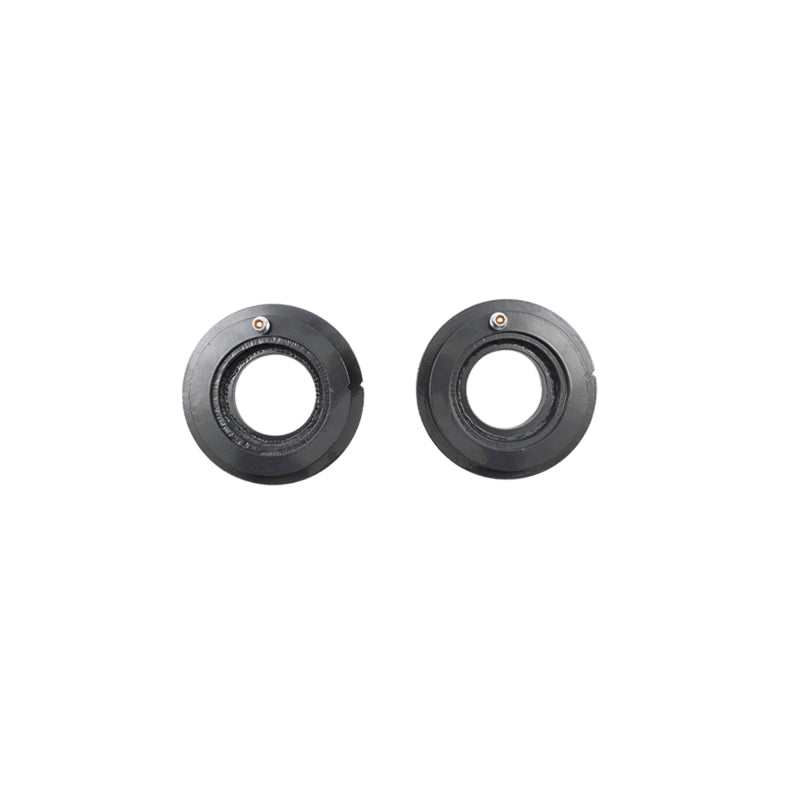

The rear end of the vehicle showcases Belltech Street Performance shocks that are perfectly tuned for your RAM. They sport large 2.2” (55mm) damper bodies and use 35mm independent rebound and compression valves, to experience more exact, luxurious damping. To achieve -3” or -4” in lowering, our kit includes replacement coil springs and 1” spacers. To gain additional lowering for a full 4”, the spacer is removed. Belltech springs are made of cold-formed steel and are powder coated to prevent rust and wear. Our spacers are constructed of solid steel and powder coated making them extremely durable. The roll center correction bracket keeps the axle centered under the vehicle to maintain proper suspension geometry. Preserving correct anti-sway bar angles, our kit includes an adjustable end link assembly. To accommodate the new ride height, we also include a progressive rate polymer, open-cell, bump stop.

Belltech’s 2019+ RAM 1500 complete lowering kit gives your truck an eye-catching appearance and extraordinary performance. Easy installation plus quality components result in a refined ride for years to come.

Customizable front lowering adjustability of -1” or -3” and -1” or -4”
Customizable rear lowering options of -3” or -4”
Large bodied 2.4” (60mm) preset front Street Performance dampers
Large bodied 2.2” (55mm) preset rear Street Performance shocks
35mm independent rebound and compression valves
Steel, powder coated, spring spacers
Cold-formed steel springs
Adjustable length heim joint end links
Lowers center of gravity
Preserves OE ride quality and suspension geometry
Easy to install
Engineered to exemplify ride quality and performance
