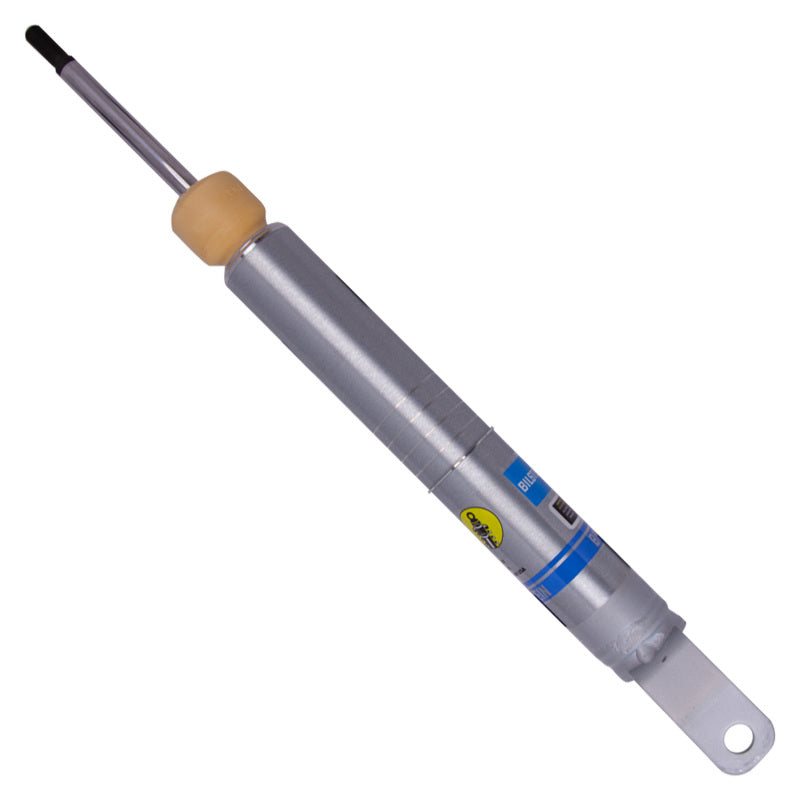

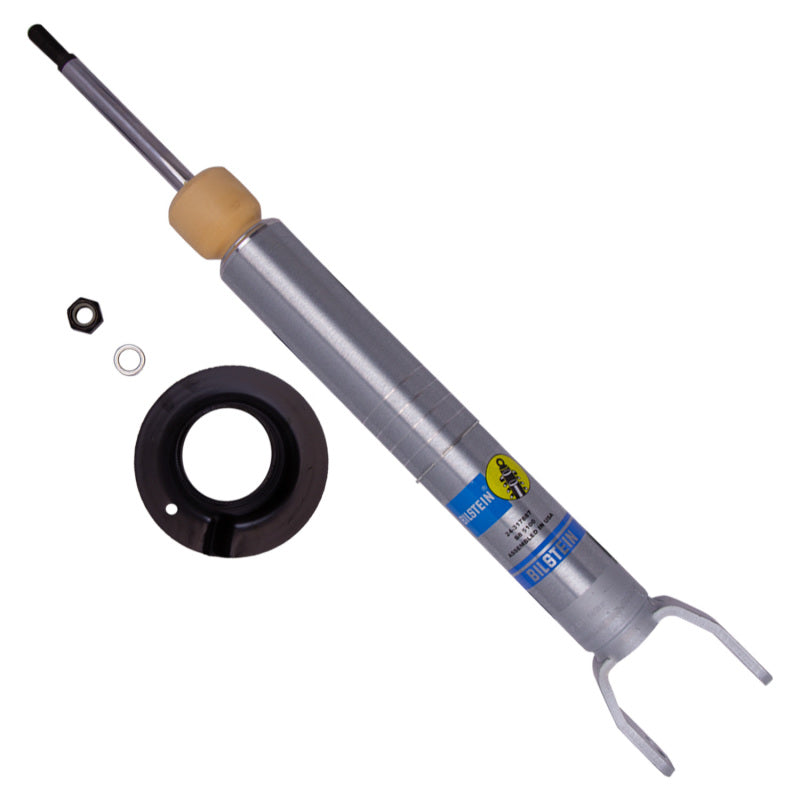

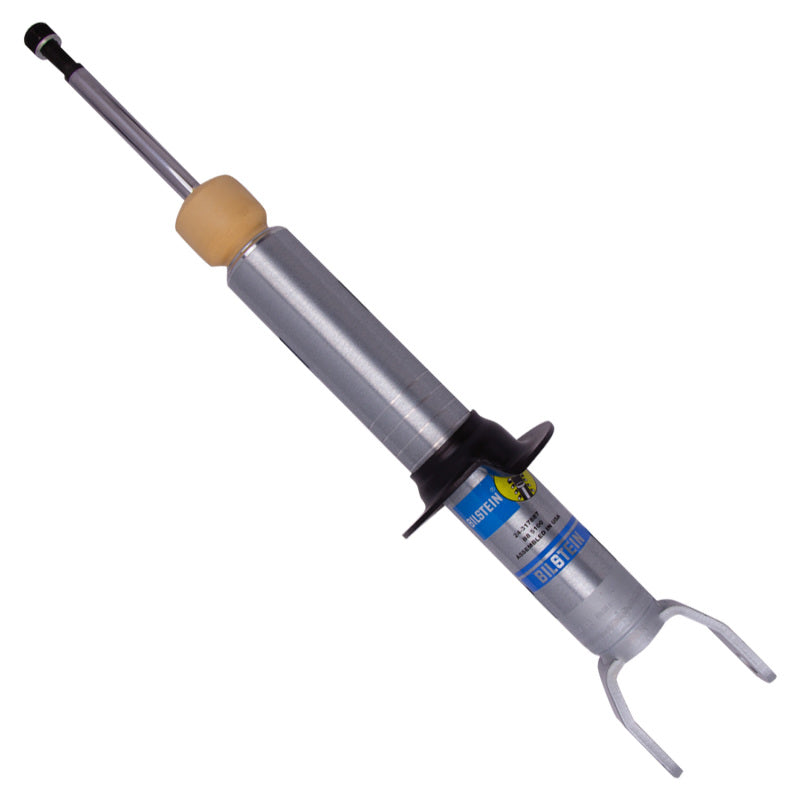

Bilstein B8 5100 Ride Height Adjustable Front Shock for 2009-2024 Ram 1500/1500 Classic - 24-317887

Key Features & Specs:

• B8 5100 Series ride height adjustable front shock
• Snap-ring grooved body for adjustable ride height/leveling
• Monotube design for consistent damping and performance
• Non-adjustable valving tuned for improved ride quality
• 46mm piston diameter for enhanced control and stability
• Zinc-plated finish for corrosion resistance

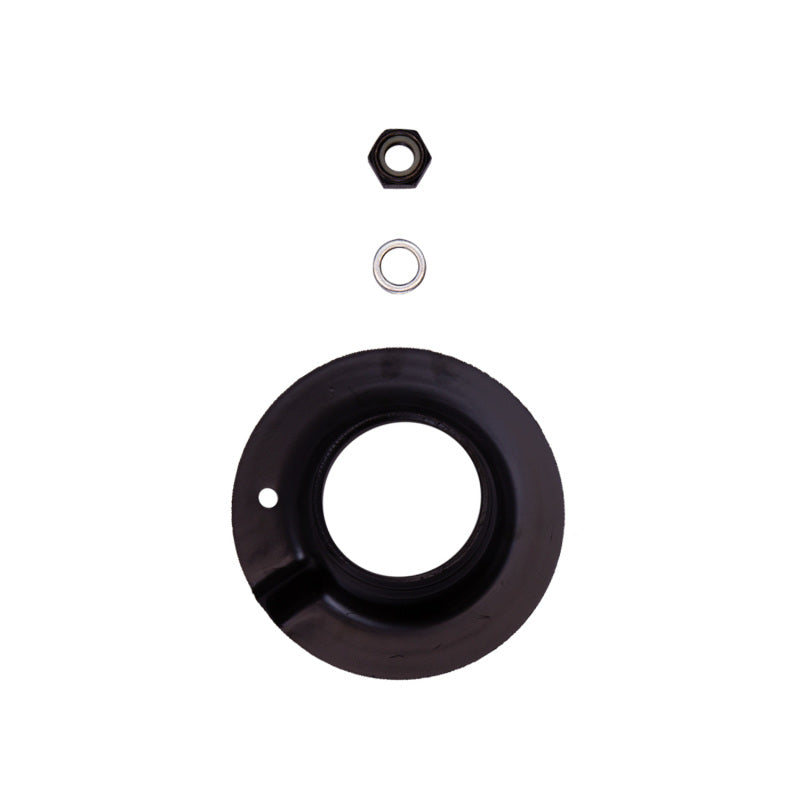

• Includes spring seat for installation
• Designed for factory or compatible aftermarket springs
• No reservoir and no boot included

Specifications:

• Collapsed Length: 15.12 in (384.0 mm)
• Extended Length: 21.46 in (545.2 mm)
• Travel Length: 6.34 in
• Body Diameter: 2.0 in
• Shaft Diameter: 14mm
• Lower Mount: Clevis
• Upper Mount: Stem
• Replacement Mounting Kit: B-KT01-0000021

Fitment:

• 2009-2010 Dodge Ram 1500
• 2011-2018 Ram 1500
• 2019-2024 Ram 1500 Classic

Upgrade your truck’s suspension with the Bilstein B8 5100 Series Ride Height Adjustable Front Shock, designed for 2009-2024 Ram 1500 and 1500 Classic models. Featuring a snap-ring grooved body, this shock allows multiple ride height settings, making it ideal for leveling your truck while improving handling and ride quality. Built with Bilstein’s proven monotube design and a large 46mm piston, it ensures consistent damping, superior heat dissipation, and long-lasting durability. The zinc-plated finish provides corrosion resistance, while the included spring seat simplifies installation. Perfect for both on-road comfort and off-road capability.
