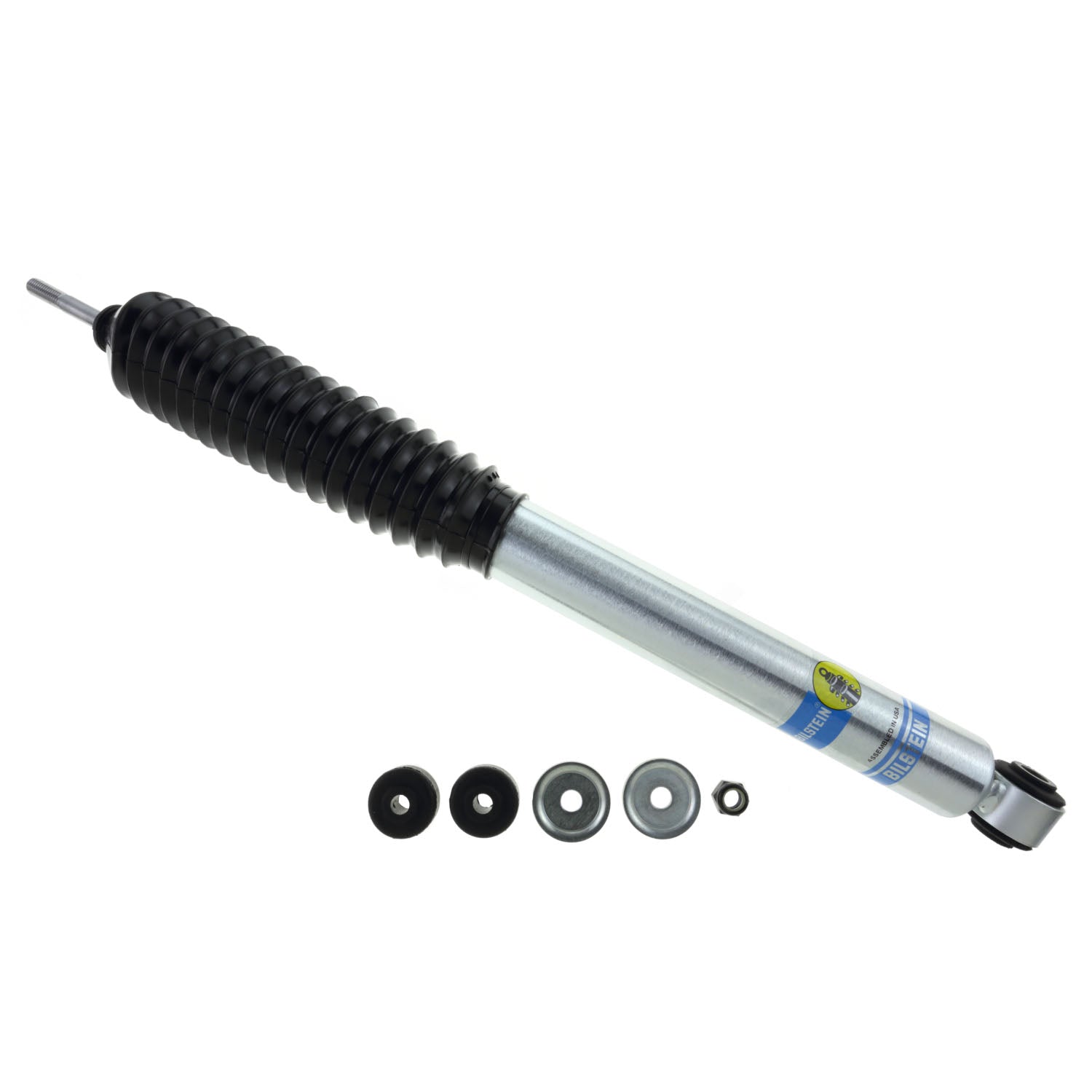

Bilstein B8 5100 Front Shock for 1994-2016 Ram 1500/2500/3500 & Ford F-250/F-350 - 24-185776

Bilstein B8 5100 Front Shock for 1994-2016 Ram 1500/2500/3500 & Ford F-250/F-350 - 24-185776

$123.00 USD
$171.85 USD $123.00 USD
-28%
Shipping calculated at checkout.
Bilstein
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

BIL24-185776
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

24-185776
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

In stock
Shocks and Struts
Key Features & Specs: B8 5100 Series front shock absorber Designed for trucks and lifted applications Monotube design for consistent damping and heat dissipation Non-adjustable valving tuned for improved ride...
Read more
Same Day Shipping Icon | Elite Race Fab

Free* Shipping on Orders Over $159

 Free Shipping | Elite Race Fab

Easy 30 Days- No Hassle Returns

 5 Star Reviews | Elite Race Fab

37,000+ 5 Star Reviews

 MFG Fitment Guarantee | Elite Race Fab

MFG Fitment Guarantee
Found a better price elsewhere?
secure-payments
View full details

Description

Key Features & Specs:

  • B8 5100 Series front shock absorber
  • Designed for trucks and lifted applications
  • Monotube design for consistent damping and heat dissipation
  • Non-adjustable valving tuned for improved ride quality and control
  • 46mm piston diameter for enhanced performance
  • Zinc-plated finish for corrosion resistance
  • Smooth body (non-coilover) design
  • Includes black bellows boot for shaft protection
  • No reservoir and no spring seat included

Specifications:

  • Collapsed Length: 14.88 in
  • Extended Length: 24.37 in
  • Body Diameter: 2.0 in
  • Shaft Diameter: 14mm
  • Lower Mount: Eye 14.1mm
  • Upper Mount: Stem

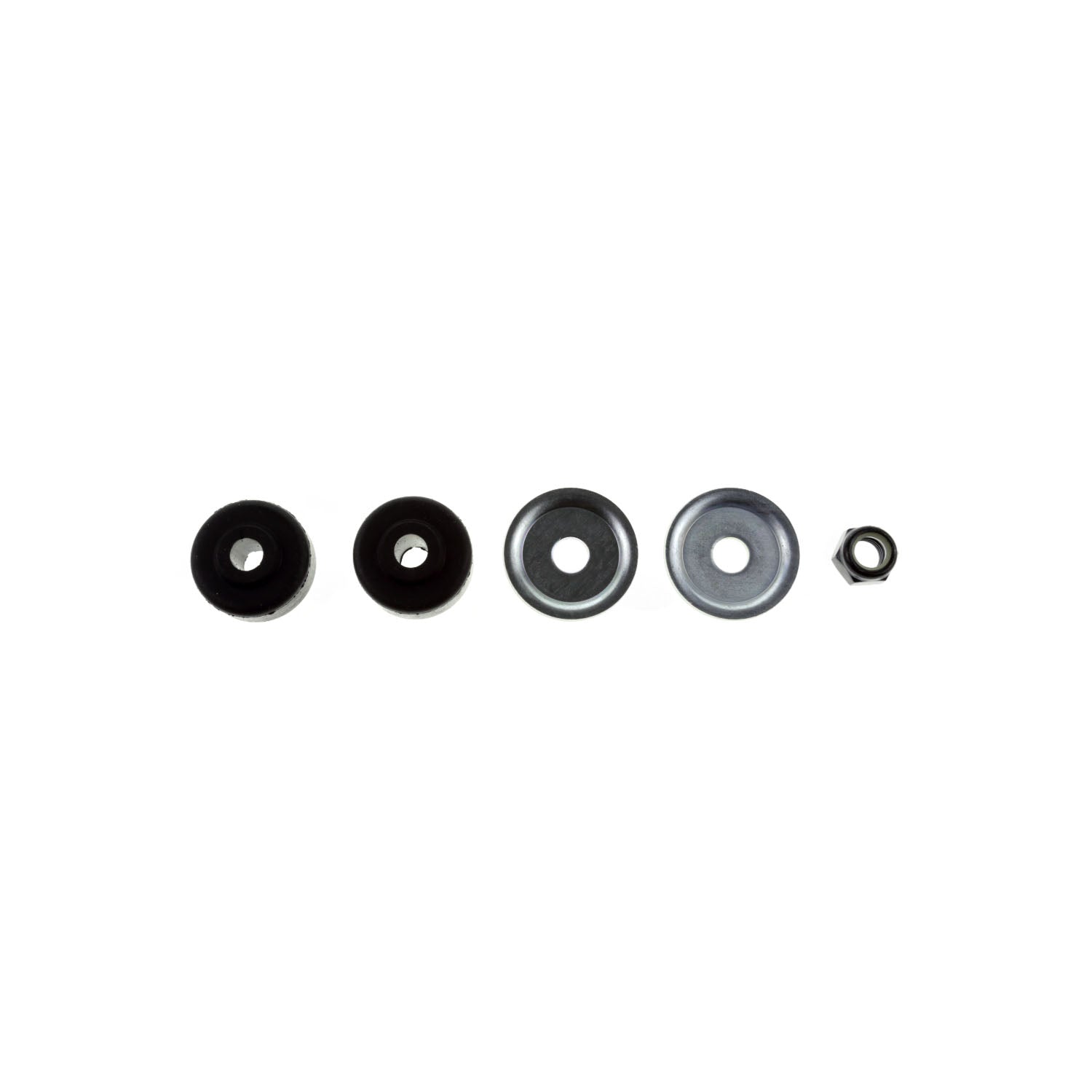

  • Replacement Mounting Kit: B4-KT1-Z103A00

Fitment:

  • 1994-2001 Dodge Ram 1500
  • 2006-2008 Ram 1500
  • 1994-2010 Dodge Ram 2500/3500
  • 2011-2013 Ram 2500
  • 2011-2012 Ram 3500
  • 2005-2016 Ford F-250 Super Duty
  • 2005-2016 Ford F-350 Super Duty

Upgrade your truck’s suspension with the Bilstein B8 5100 Front Shock Absorber, designed for a wide range of 1994-2016 Ram 1500, 2500, 3500 and Ford F-250/F-350 Super Duty trucks. Engineered as a high-performance monotube shock, it delivers consistent damping, improved stability, and enhanced ride comfort both on and off the road. The large 46mm piston ensures superior control under heavy loads, while the zinc-plated finish provides excellent corrosion resistance. With a smooth body design and included black bellows boot, this shock is built to perform in tough driving and off-road conditions.
