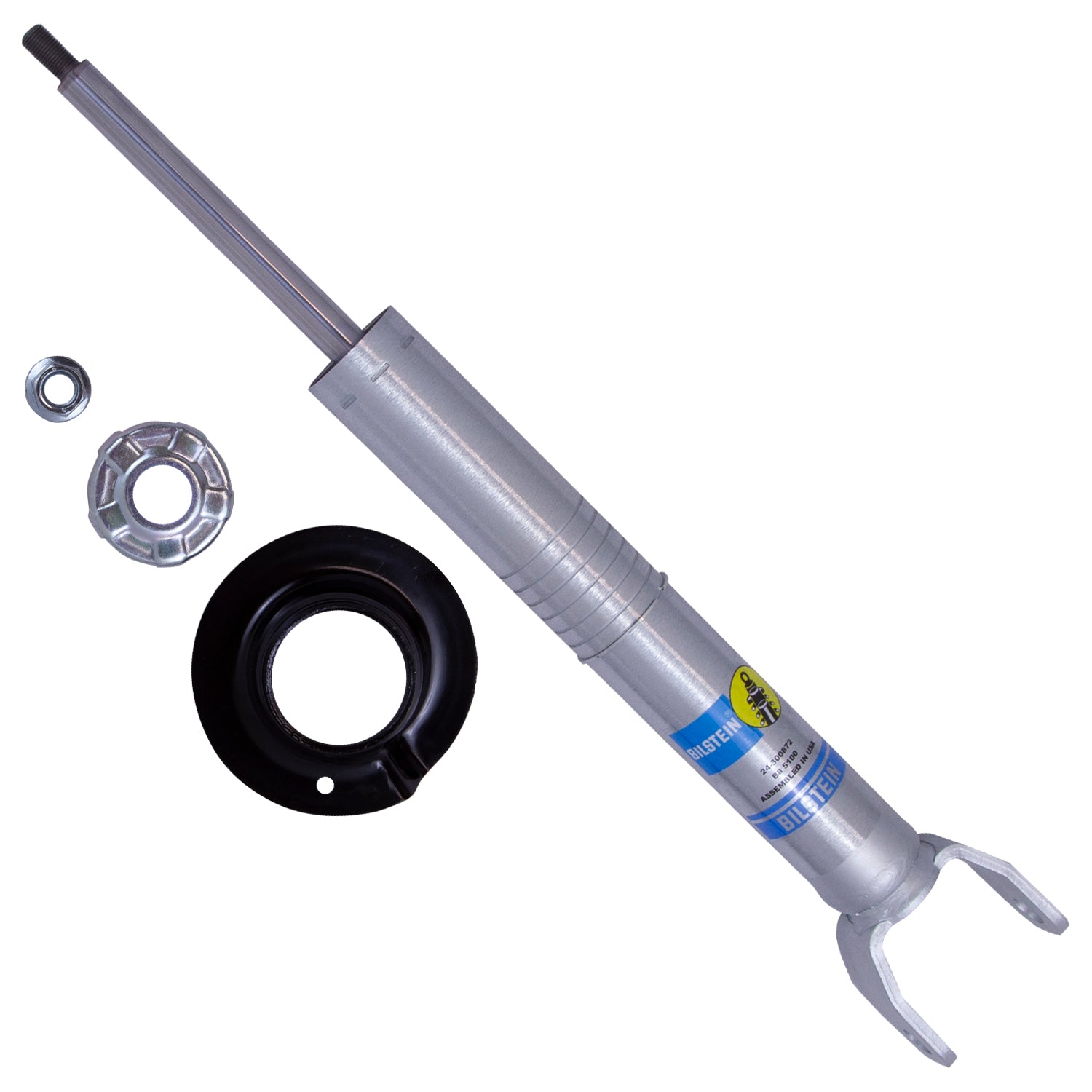

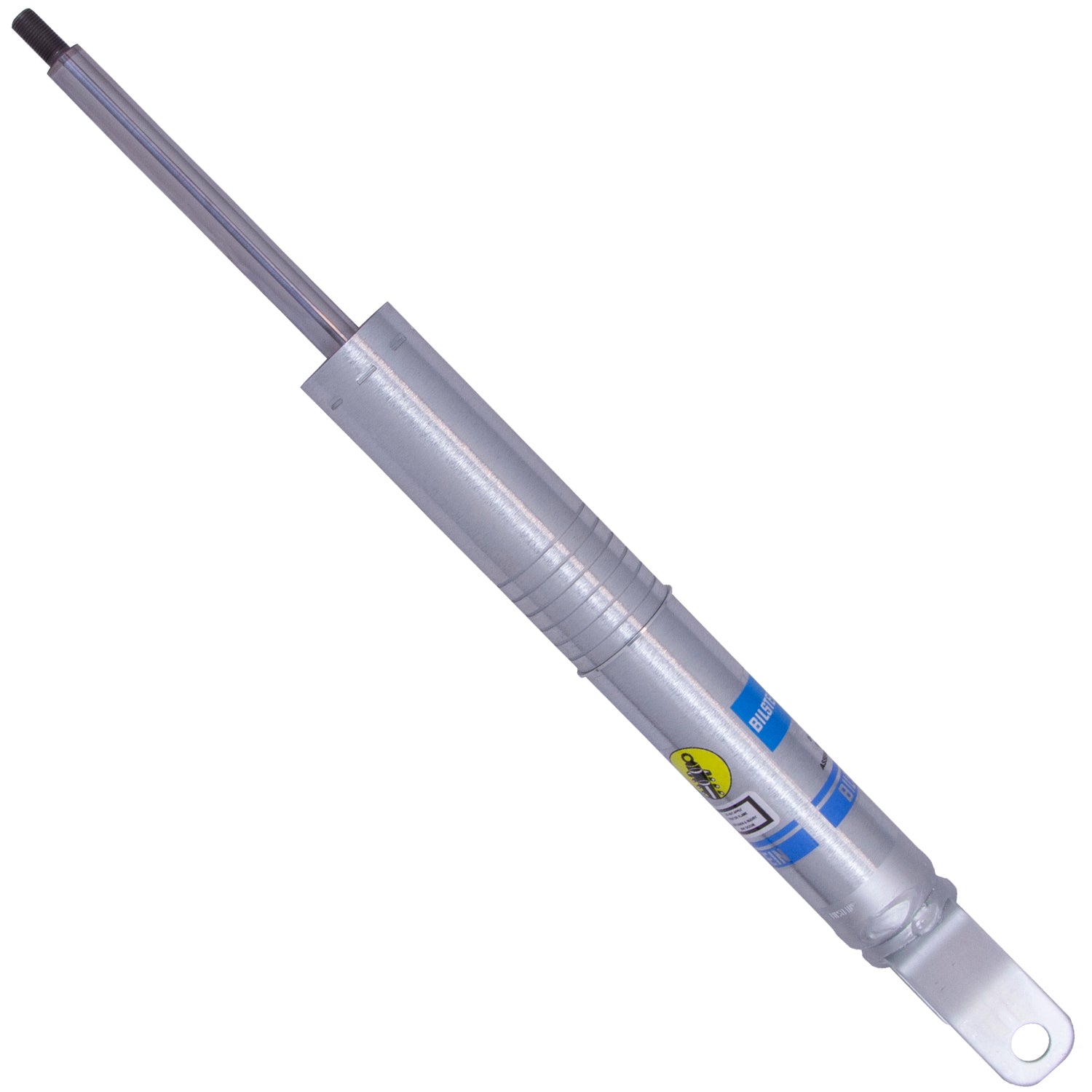

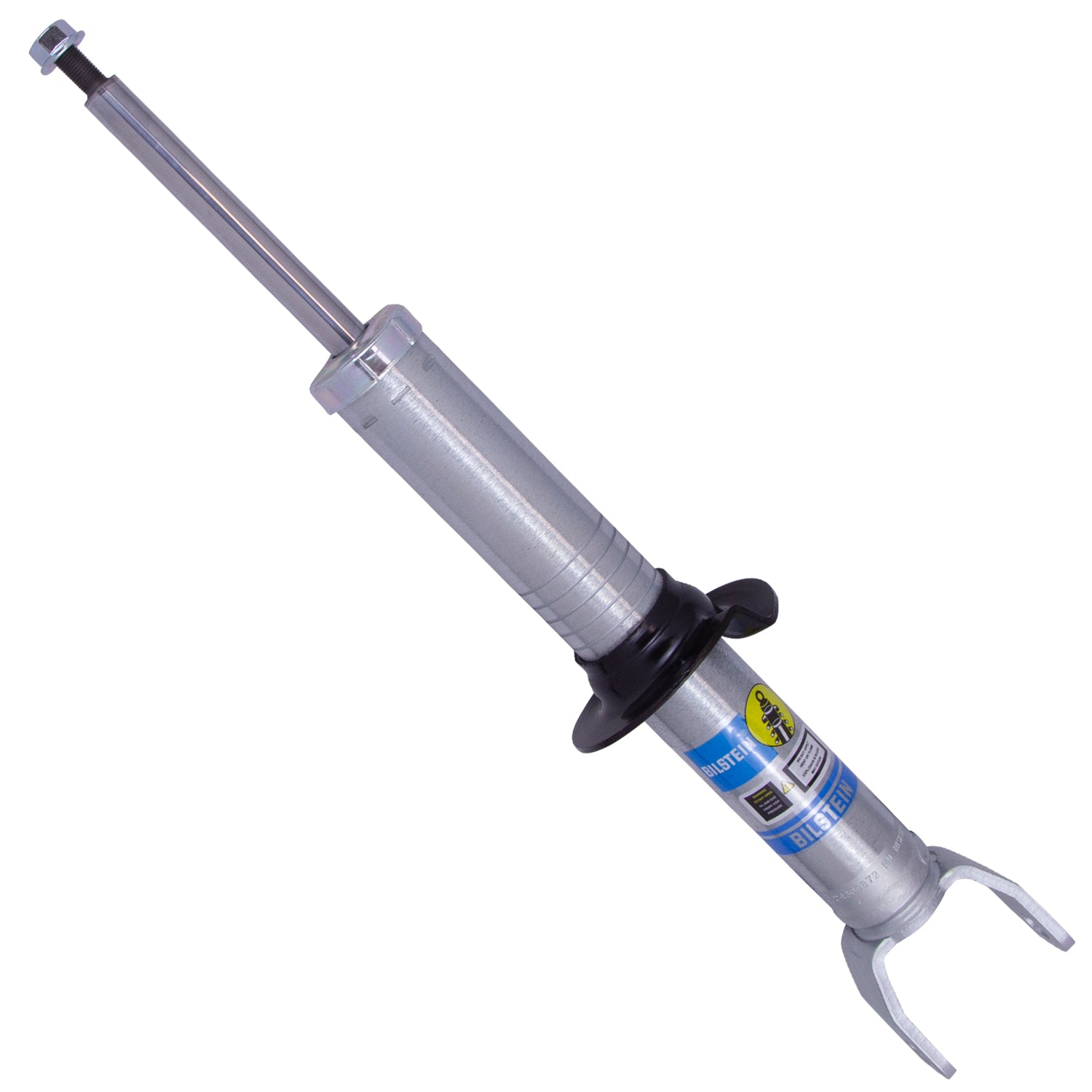

Bilstein B8 5100 Ride Height Adjustable Front Shock for 2019-2024 Ram 1500 - 24-300872

Key Features & Specs:

• B8 5100 Series ride height adjustable front shock
• Snap-ring grooved body for multiple ride height settings
• Monotube design for consistent performance and heat management
• Non-adjustable damping tuned for optimal ride quality
• 46mm piston diameter for improved control and stability
• Durable zinc-plated finish for corrosion resistance

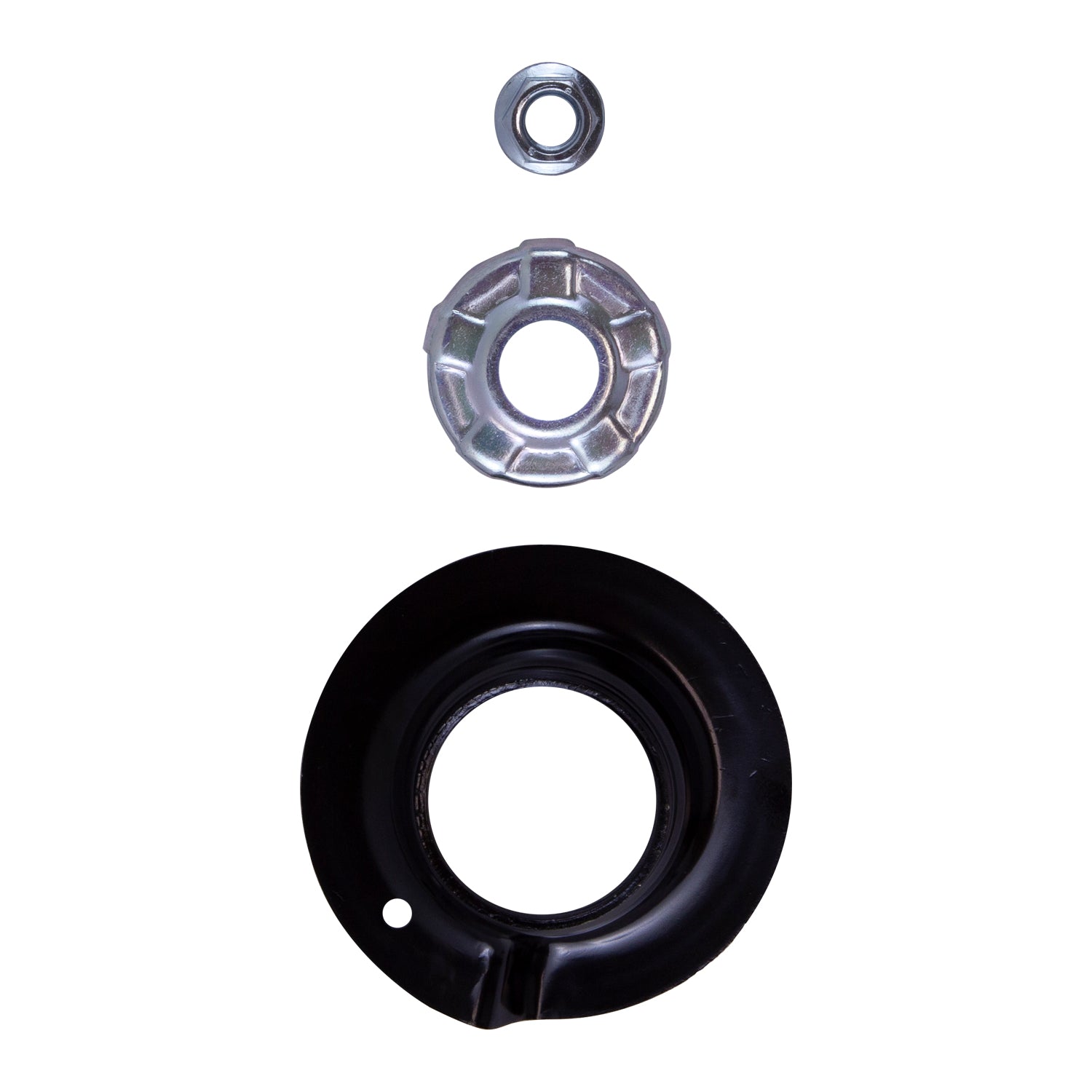

• Includes spring seat for easy installation
• Designed for use with factory or aftermarket springs
• No reservoir and no boot included

Specifications:

• Collapsed Length: 16.00 in (406.5 mm)
• Extended Length: 22.08 in (560.9 mm)
• Travel Length: 6.08 in
• Body Diameter: 2.0 in
• Shaft Diameter: 18mm
• Lower Mount: Clevis
• Upper Mount: Stem
• Replacement Mounting Kit: B4-KT1-Z417A00

Fitment:

• 2019-2024 Ram 1500

Enhance your Ram’s ride quality and stance with the Bilstein B8 5100 Series Ride Height Adjustable Shock for the 2019-2024 Ram 1500. Designed with a snap-ring grooved body, this front shock allows multiple ride height settings for improved leveling and performance. Built with Bilstein’s monotube technology and a large 46mm piston, it delivers consistent damping, superior heat dissipation, and improved control both on and off the road. The zinc-plated finish ensures long-lasting corrosion resistance, while the included spring seat makes installation straightforward. Ideal for drivers looking to improve handling, comfort, and front-end leveling without sacrificing reliability.
