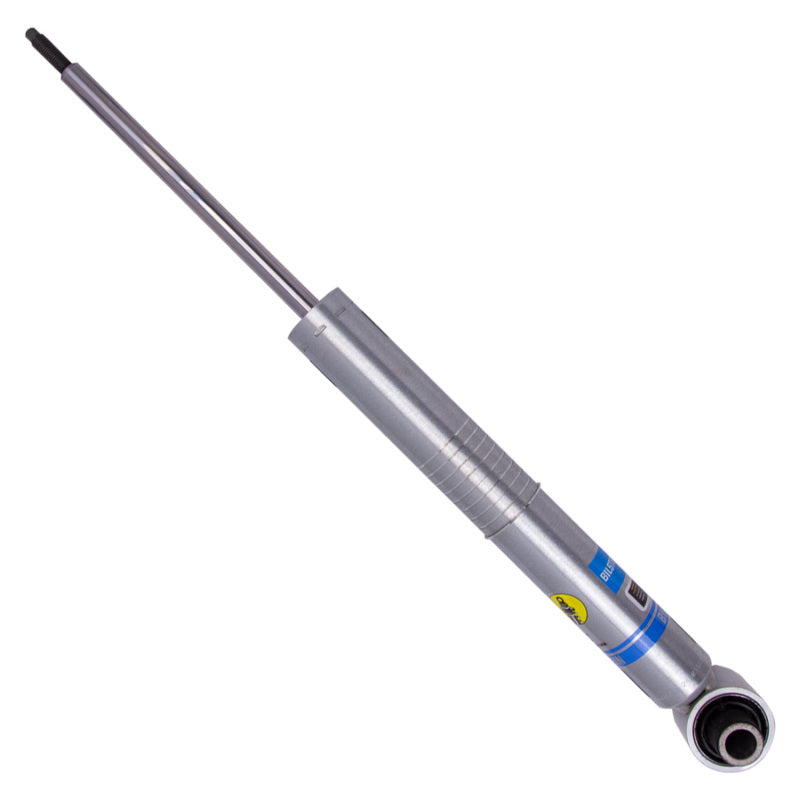

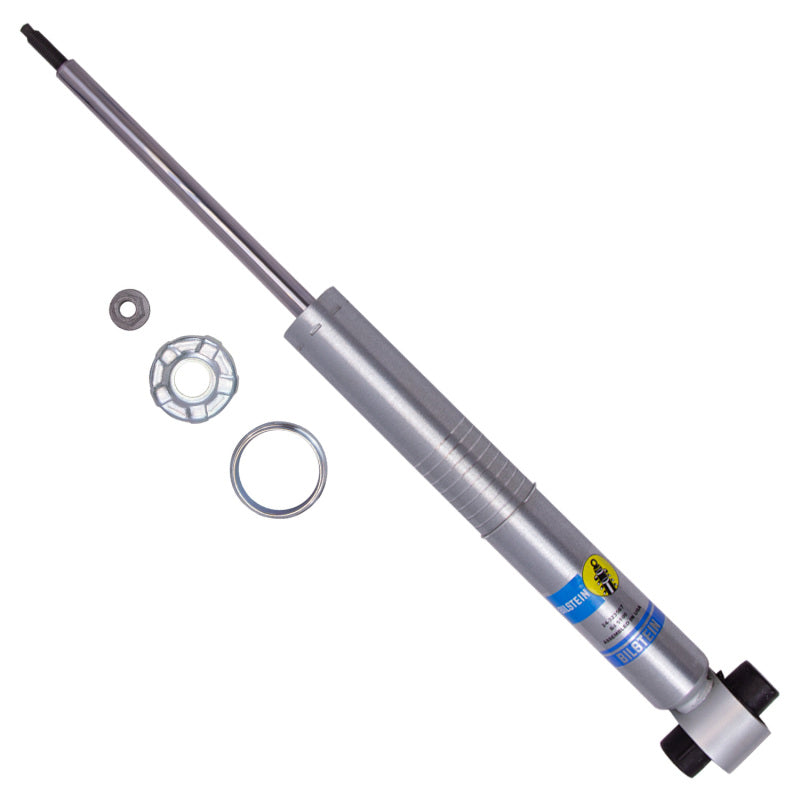

Bilstein B8 5100 Rear Shock, 2021-24 Ford Bronco - 24-323567

Bilstein B8 5100 Rear Shock, 2021-24 Ford Bronco - 24-323567

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with an OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

• Part Number: 24-323567
• Product Type: Suspension Shock Absorber
• Series: B8 5100 (Ride Height Adjustable)
• Position: Rear
• Collapsed Length (in) : 17.11
• Extended Length (in) : 25.56
• Collapsed Length (mm) : 434.6
• Extended Length (mm) : 649.3
• Finish : Zinc Plated
• Reservoir : No
• Body Design : Snap Ring Grooved Body (Coilover)
• Body Diameter (id) : 46mm

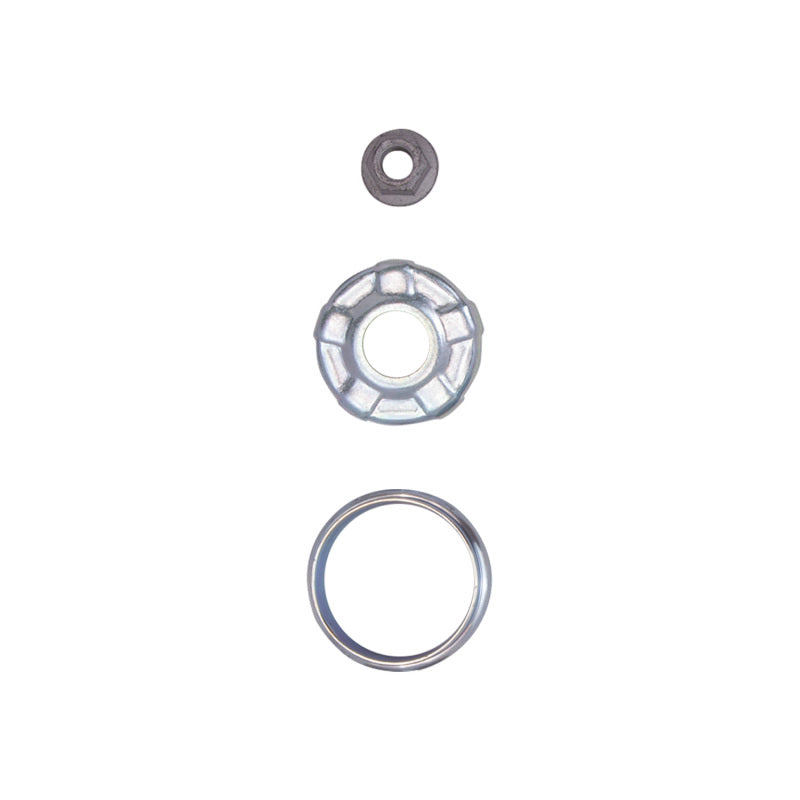

• Replacement Mounting Kit : B4-KT1-Z456A00
• Spring Seat Included : No - Reuse OEM
• Adjustable Damping : Non-Adjustable
